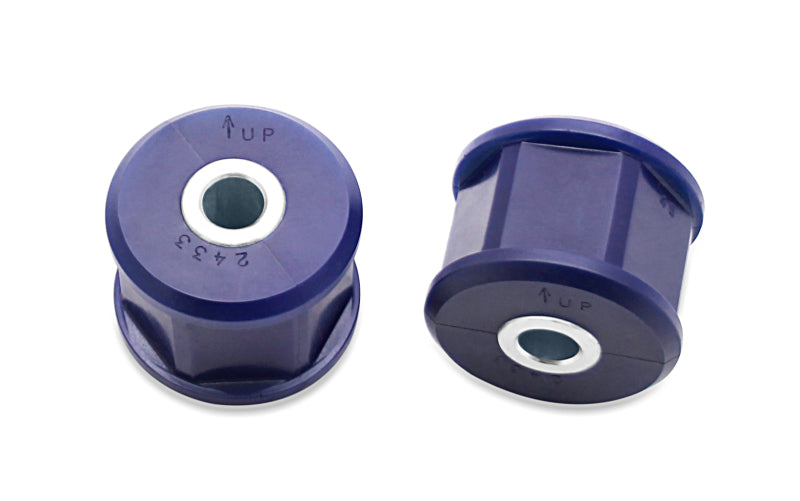

Super Pro Rear Differential Support Bracket Mount Bushing Kit - 2002-2007 WRX, 2004-2007 STI, 2002-2007 Impreza
Product Overview
The Super Pro SPF2433K rear differential support bracket mount bushing kit replaces the original rubber at the differential mounting location.
Features
- Polyurethane helps maintain differential location as drivetrain loads change.
- Replaces worn mounting material to reduce excess movement.
Specifications
- Manufacturer part number: SPF2433K
- Fitting Position: Rear
- Kits Required: 1
- Bushing outer diameter A (mm): AI=54 AII=49
- Bushing inner diameter B (mm): 23.8
- Bushing length C (mm): 45
- Flange thickness D (mm): 7
- Flange outer diameter E (mm): 58
- Tube OD x ID x length (mm): 24x14.3x47
What's Included
2 Bushings, 2 Tubes
Vehicle Fitment
Verified Subaru applications and trim levels are listed below. Year ranges apply only to the trims shown.
| Model years | Subaru model | Trim / configuration |
|---|---|---|
| 2002-2007 | WRX | Standard Model |
| 2006-2007 | WRX | Limited, Tr |
| 2004-2007 | STI | Standard Model |
| 2007 | STI | Limited |
| 2002-2004 | Impreza | Outback, tS |
| 2002-2005 | Impreza | Rs |
| 2005-2007 | Impreza | Outback Sport |
| 2006-2007 | Impreza | 2.5I |
Installation Information
- Manufacturer estimated installation time: 3 Hours.
- Installation by a suspension specialist is recommended.
- Rear Wheel Alignment required after installation.
- Manufacturer warning: this performance bushing or insert may increase noise, vibration and harshness (NVH).
