Radium Engineering
Radium Fuel Rails Top Feed Conversion - Subaru STI Versions 3-6 JDM Models
SKU: RAD20-0569-02
$324.99 CAD
$343.57 CAD
Radium Engineering has manufactured fuel rails for the Subaru Version 3 through Version 6 EJ20K/Ej205/EJ27 with a large internal bore, the fuel rail can support all any engine power requirements.
The Radium fuel rail converts the OEM side feed fuel injector setup to top feed injectors, allowing the use of a wide variety of aftermarket fuel injectors available on the market.
This kit is compatible with E85.
This kit is compatible with E85.

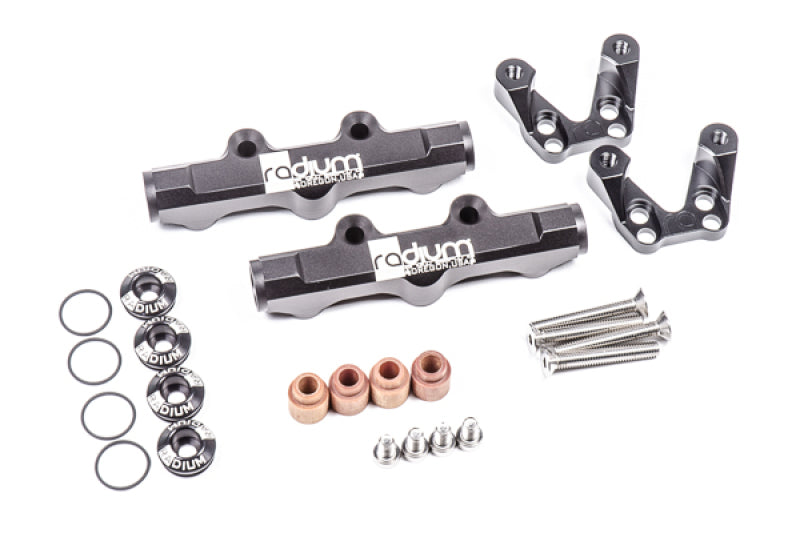

Kit Includes:
- (2x) Black Anodized Laser Etched Aluminum Fuel Rails
- (2x) Black Anodized Version 3-6 Conversion Fuel Rail Mount
- (4x) Black Anodized and Laser Etched 26mm Injector Seats
- (4x) Phenolic Thermal Insulating Press-In Spacers
- (4x) Phenolic Thermal Insulating Press-In Bolt Washers
- (4x) Stainless Steel M8x1.25 Mounting Bolts
- (2x) Black Anodized Version 3-6 Conversion Fuel Rail Mount
- (4x) Black Anodized and Laser Etched 26mm Injector Seats
- (4x) Phenolic Thermal Insulating Press-In Spacers
- (4x) Phenolic Thermal Insulating Press-In Bolt Washers
- (4x) Stainless Steel M8x1.25 Mounting Bolts
The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks.
Fuel Injector Compatability:
- Tall 48mm injectors are used in this kit .
Injector Dynamics ID725-48-14-14
Injector Dynamics ID850-48-14-14
Injector Dynamics ID1000-48-14-14
Injector Dynamics ID1050x-48-14-14
Injector Dynamics ID1300-48-14-14
Injector Dynamics ID1700-48-14-14
Injector Dynamics ID2000-48-14-14
Evolved Injection EI550-48-14-14
Evolved Injection EI650-48-14-14
Evolved Injection EI850-48-14-14
Evolved Injection EI1000-48-14-14
Evolved Injection EI1200-48-14-14
Evolved Injection EI1300-48-14-14
Evolved Injection EI2200-48-14-14
Deatschwerks 17U-00-0050-4
Deatschwerks 17U-00-0060-4
Deatschwerks 17U-00-0072-4
Deatschwerks 17U-00-0095-4
Deatschwerks 16S-12-2200-4
Injector Dynamics ID850-48-14-14
Injector Dynamics ID1000-48-14-14
Injector Dynamics ID1050x-48-14-14
Injector Dynamics ID1300-48-14-14
Injector Dynamics ID1700-48-14-14
Injector Dynamics ID2000-48-14-14
Evolved Injection EI550-48-14-14
Evolved Injection EI650-48-14-14
Evolved Injection EI850-48-14-14
Evolved Injection EI1000-48-14-14
Evolved Injection EI1200-48-14-14
Evolved Injection EI1300-48-14-14
Evolved Injection EI2200-48-14-14
Deatschwerks 17U-00-0050-4
Deatschwerks 17U-00-0060-4
Deatschwerks 17U-00-0072-4
Deatschwerks 17U-00-0095-4
Deatschwerks 16S-12-2200-4
Notes:
- This is a side feed to top feed conversion fuel rail.
- DO NOT purchase "WRX Fitment" top feed injectors! Must use a compatable 48mm injector from the list above!
Fitment:
JDM 1997-1998 Subaru WRX / STI - Version 3/4 (V3/V4) - EJ20K
JDM 1999-2000 Subaru WRX / STI - Version 5/6 (V5/V6) - EJ205 / EJ207

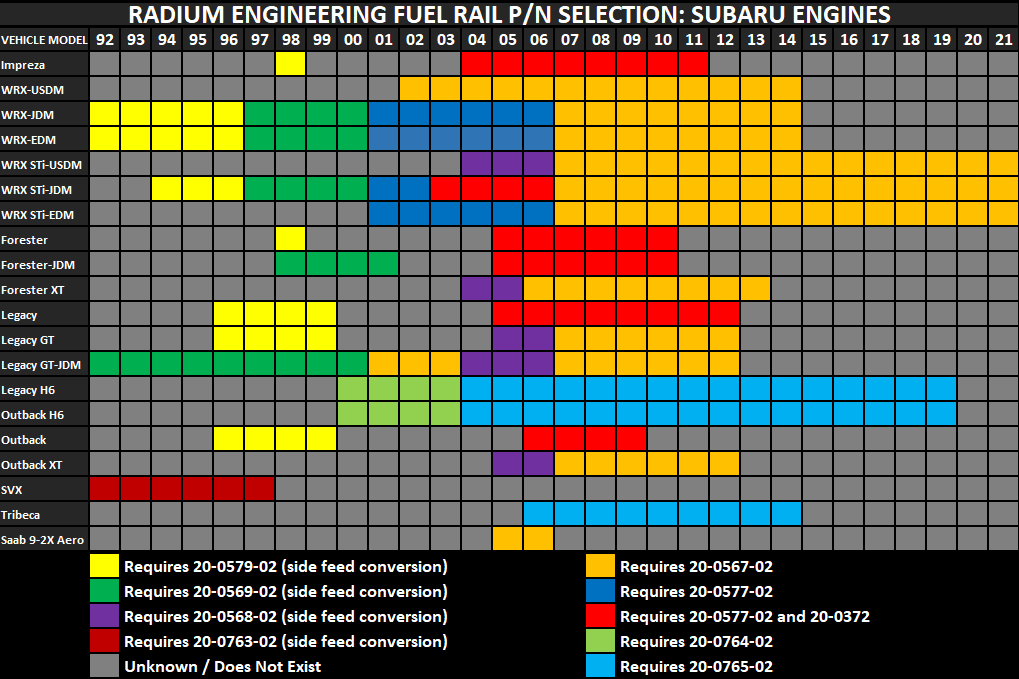

Reference the chart below to be sure the proper fuel rails are ordered.
