Radium Engineering Air Oil Separator Kit - 15-21 WRX
High-powered modified Subaru engines tend to generate excessive blow-by oil and gasses. In these cases, an ordinary small catch can may quickly fill with oil and not be adequate.
Like the Radium Engineering Subaru Dual Catch Can Kit, the AOS (Air Oil Separator) kit is responsible for keeping blow-by oil and other pollutants out of the intake pipe, manifold, turbocharger, and intercooler during all engine loads. The main difference is that an AOS system returns what is collected back into the oil pan so there is no servicing required. The built-in heater keep water from condensing in the AOS, making sure ONLY oil is returned back to the oil pan, not a milky sludge.
The AOS is constructed of CNC machined sections that screw together and are sealed with O-rings. The AOS can be completely disassembled for cleaning or servicing.
Benefits:
- Effectively raises the fuel octane and increases engine performance with cleaner inlet air
- Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
- Lowers hydrocarbon emissions
Installation:
The Radium Engineering AOS kit installs on the LH side of the engine bay, near the brake master cylinder. The outlet (side port) of the AOS is plumbed back to the turbo inlet pipe, creating a completely sealed system.
The AOS mounts to the Radium Brake Master Cylinder Brace, as shown below in photos. This brace is REQUIRED for installation.

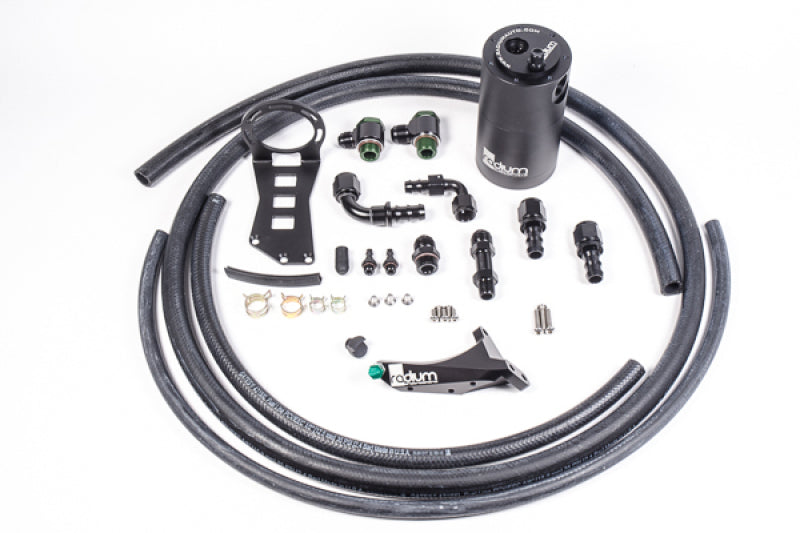

Kit Contents:
- Machined aluminum Radium Engineering Air/Oil Separator
- Specially designed mounting bracket
- All necessary SAE J30R7 rated PCV/Emissions hose
- Coolant hoses and fittings
- PCV delete fitting
- All necessary aluminum fittings and hose-ends
- Stainless steel mounting hardware
- Master Cylinder Brace
Choose options
Radium Engineering Air Oil Separator Kit - 15-21 WRX
Sale price$655.99 CAD
