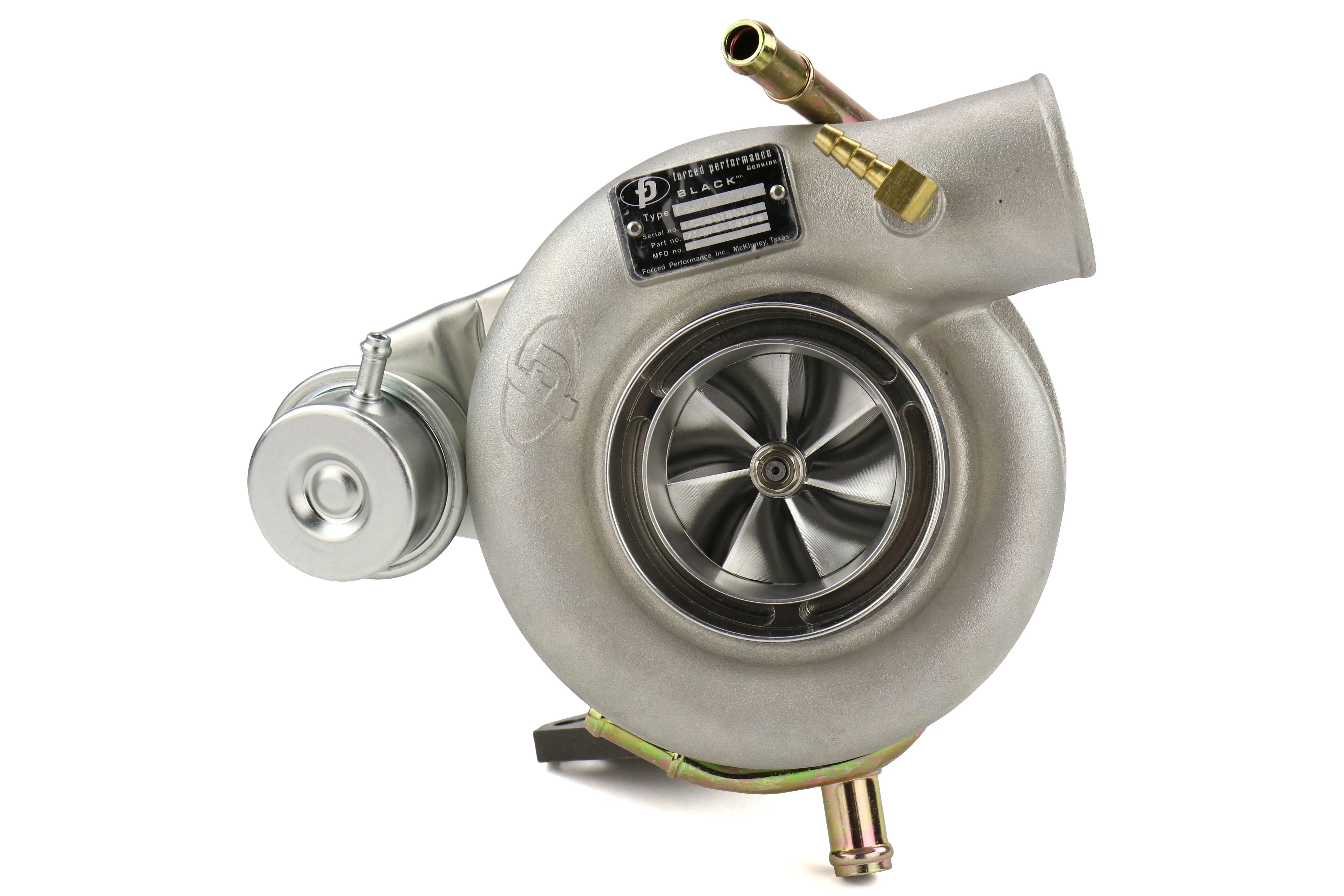

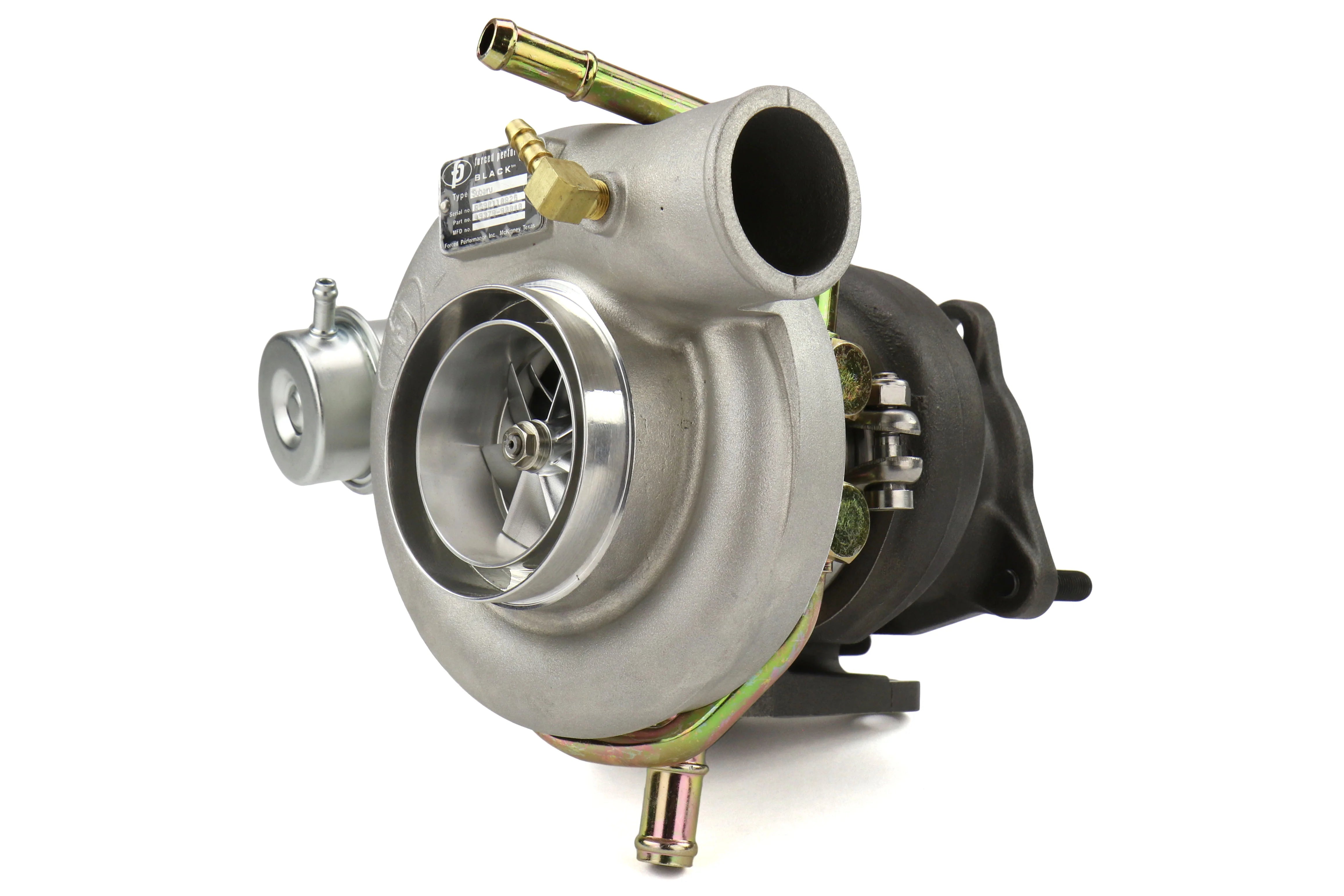

FORCED PERFORMANCE BLACK HTZ TURBO CHARGER - 84mm Inlet - Internal Wastegate - 02-07 WRX, 04+ STI

This particular Turbocharger is the FP Black which features the 82 HTZ compressor section with a compressor wheel measurement of 59.1mm inducer and an 82mm exducer. The turbine wheel measurement will have a 67.3mm inducer with a 58.8mm exducer. It will come with the 84mm Flow Advancement Port compressor cover that will be coupled with the Forced Performance 8cm turbine housing. Additionally, it will have the CHRA FP journal bearing and has a flow rating of 71LB per minute. This is a great upgraded turbo for your racecar, rally car, overlander and daily driver!

Note that this particular turbocharger will come with the Type 1 oil line application. Due to part number changes year to year and make to make you need to determine which type of oil line you will need. Now the Type 1 Oil Line is to be used if at the oil feed location off the back of the head only feeds the turbo. This was formally known as the non-AVCS line.

Also, because this turbocharger has the 84mm cover, it will require the TGV Delete to be able to fit in the stock location.

The Forced Performance Black Turbocharger will come with the oil line, hardware which includes banjo bolts, as well as a new downpipe and up-pipe gasket to make this turbocharger ready for the installation.

For a perfect install, FP recommends using their 84mm Inlet. The 84mm compressor housing is slightly larger than 3" and other brands inlet hoses are not compatible with this turbo.

84MM FAP Cover Requires TGV Delete to fit in stock location

SPECIFICATIONS
