FactionFab Titanium Front Brake Shim Set - 4-Piston Brembo - 2004-2017 STI

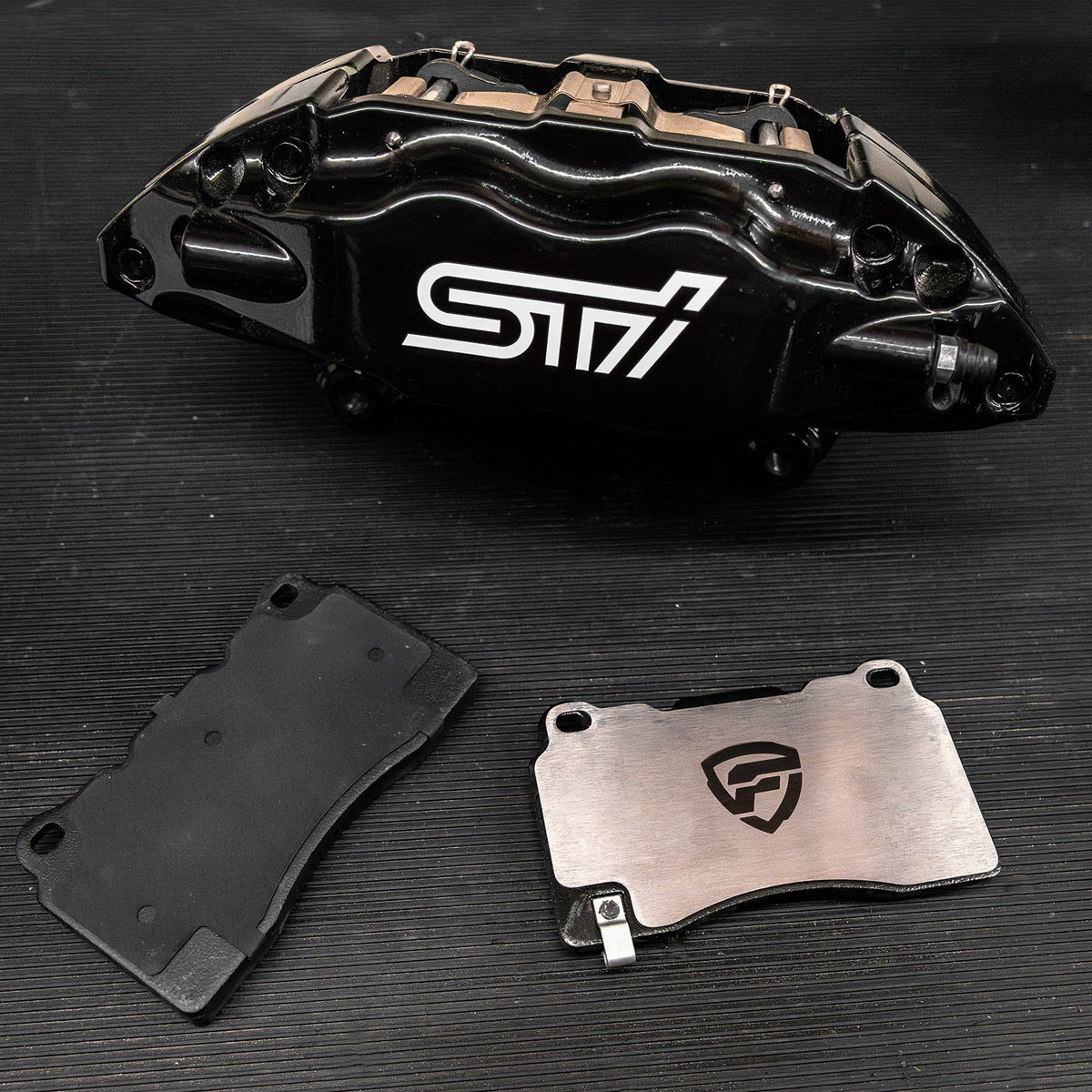

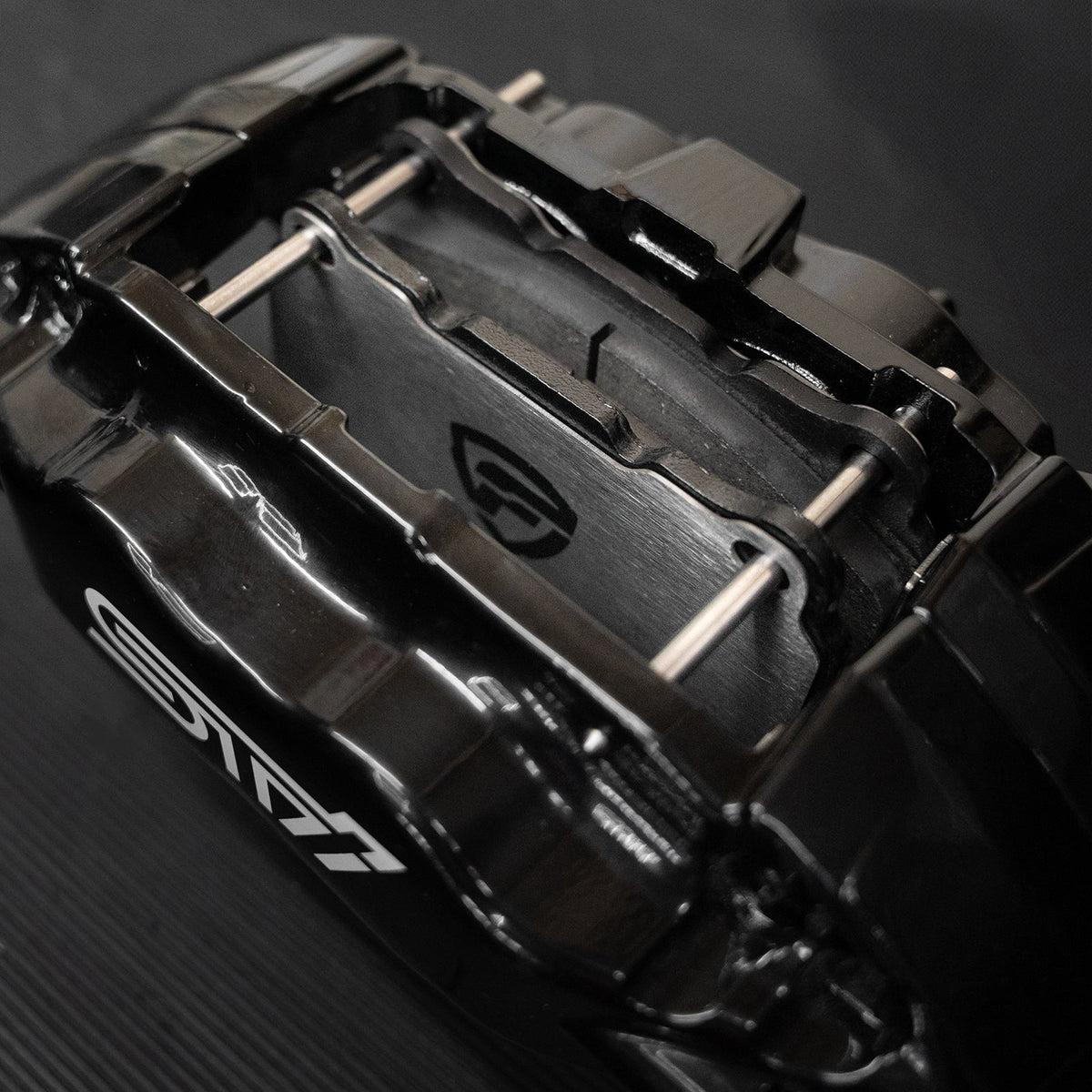

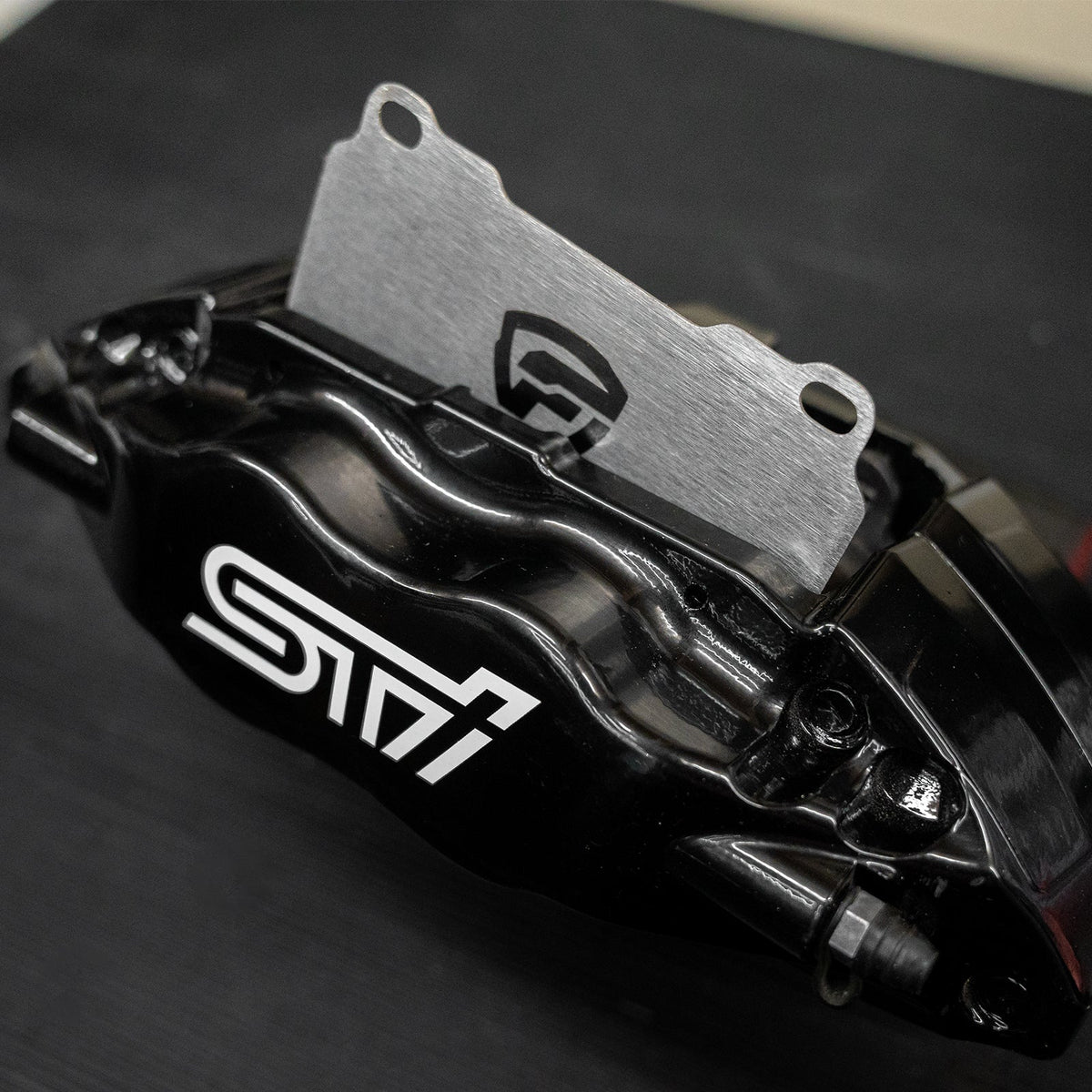

FactionFab titanium brake shims form a thermal barrier between the brake pad and caliper piston, helping limit heat transfer into the caliper and brake fluid during aggressive driving, autocross and track use.

Features and Specifications

• 6AL-4V / Grade 5 titanium with low thermal conductivity.
• 1.0 mm thickness forms a thermal barrier between pad backing plate and caliper piston.
• Helps reduce heat transfer into the caliper and fluid, supporting resistance to heat-related brake fade.
• Four shims per set. Competition eligibility depends on the official SCCA / NASA class rules.

Specifications

• Manufacturer part number: FFA1.10315.1
• Position: Front
• Pad shape: FMSI D1001
• Material: 6AL-4V / Grade 5 titanium
• Thickness: 1.0 mm

What's Included

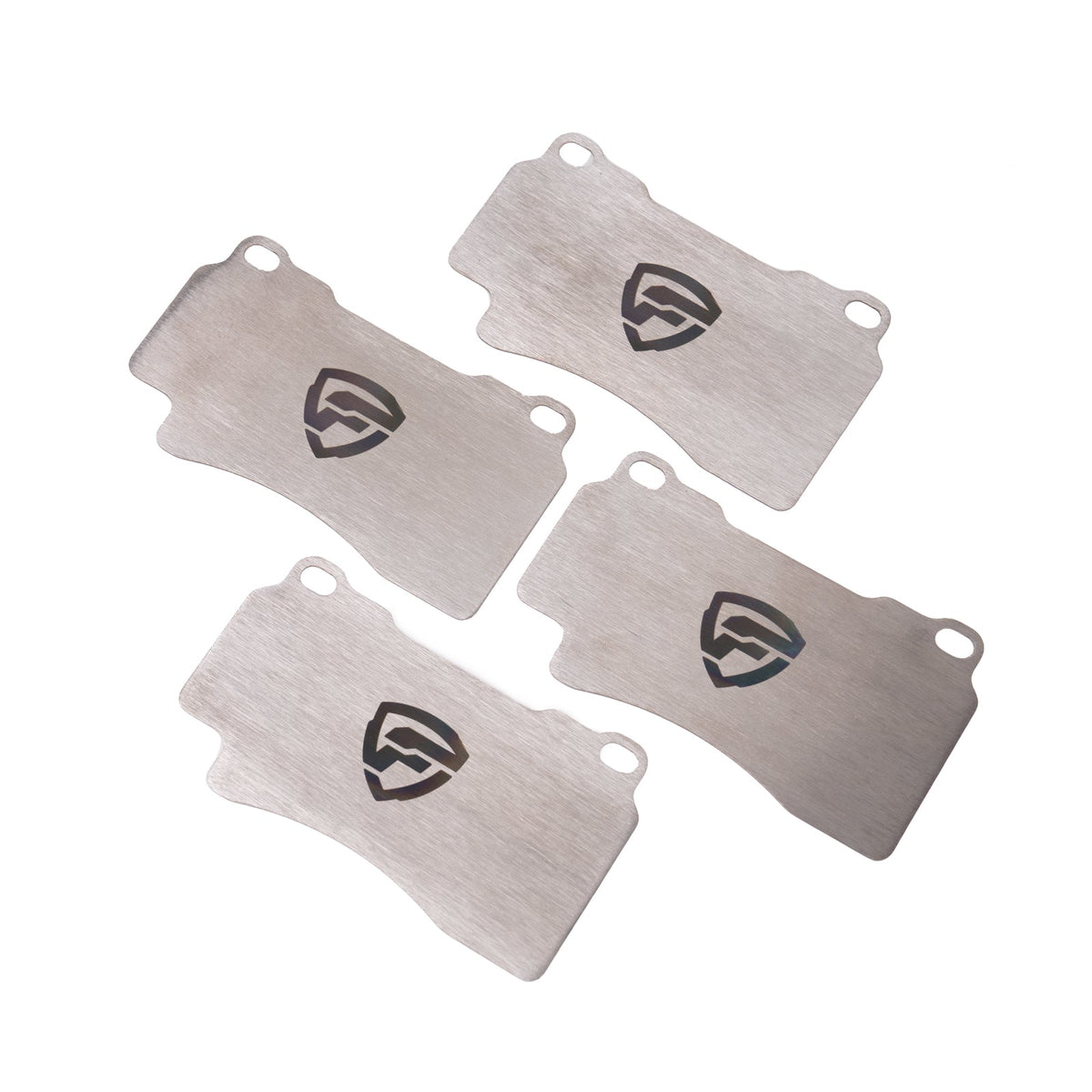

Four titanium front brake shims.

Vehicle Fitment

For compatible four-piston Brembo calipers using FMSI D1001 pads: 2004–2017 Subaru STI; 2017+ Honda Civic Type R; 2003–2014 Mitsubishi Lancer EVO; 2007–2014 Ford Mustang with Brembo package; 2004–2007 Volvo S60 R and V70 R; 2009 Pontiac G8 GXP; 2015–2017 Dodge Viper; 2004–2007 Cadillac CTS-V; 2013–2017 Cadillac ATS with Brembo package; 2007–2011 Cadillac STS; 2010–2016 Hyundai Genesis Coupe with Brembo package; 2014–2018 Chevrolet Camaro with Brembo package; 2012–2015 Buick Regal GS.
