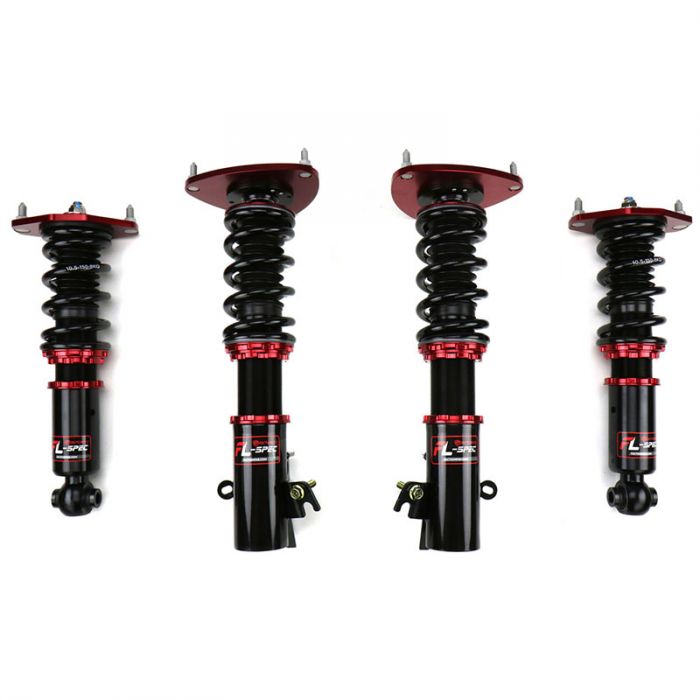

FactionFab FR-Spec V2 Coilover Kit - 2008-2014 STI

FactionFab V2 FR-Spec Track Coilovers

The FactionFab V2 FR-Spec Coilovers are the track-focused option in FactionFab's V2 suspension lineup, designed for enthusiasts looking for maximum handling performance, control, and adjustability.

Building on the original V1 FR-Spec, the V2 features revised spring rates, updated shock valving, an expanded 30-way damping adjustment range, and redesigned components throughout the system.

The FR-Spec is primarily designed for track cars, race cars, autocross builds, and other performance-focused applications. However, it can also be used on street-driven vehicles where the driver prefers a firmer, more responsive suspension setup.

Key Features

• 30-way adjustable damping for fine-tuning suspension response

• Performance-focused spring rates and shock valving

• Monotube shock design front and rear

• Vehicle-specific valving and shim stacks

• Revised, application-specific spring rates

• Independent ride-height adjustment separate from spring preload

• Front pillowball camber-adjustable top hats

• Offset camber plate design provides increased negative camber adjustment

• Forged 6061 aluminum adjustable collars and spring seats

• Heavyweight shock oil for improved heat resistance and consistent damping

• Longer shock bodies provide increased stroke and greater oil capacity

• OEM-style mounting provisions for brake lines and ABS wiring

• Fully assembled with top hats included

• 12-month manufacturer's warranty against manufacturing defects

V2 FR-Spec Track Design

The FR-Spec is specifically engineered for performance driving and track use. Increased spring rates are paired with higher damping coefficients to provide greater chassis control during aggressive cornering, braking, and acceleration.

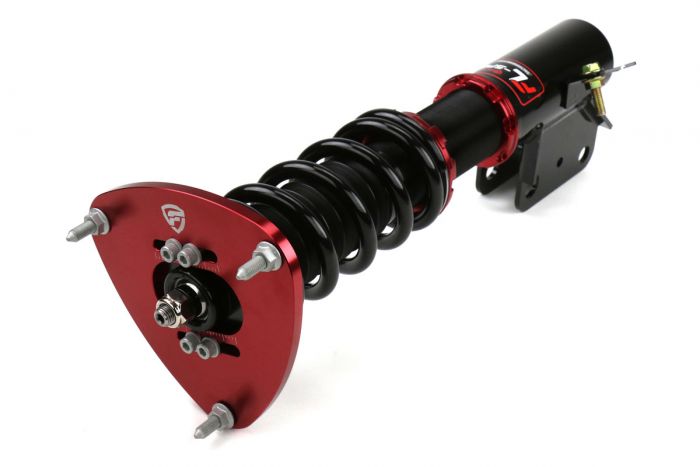

Solid aluminum front top hats with pillowball mounts help reduce suspension deflection under high-load driving conditions while providing adjustable camber for more precise performance alignments.

Heavyweight shock oil and increased shock-body capacity help maintain consistent damping as temperatures rise during extended performance driving.

Track-Focused Performance

FactionFab's adjustable damping system provides 30 levels of adjustment, allowing the suspension to be fine-tuned for different tracks, road surfaces, tires, and driving styles.

FactionFab testing has shown up to a 0.12G increase in cornering performance on firmer settings compared to softer settings in tested applications.

Actual results may vary depending on vehicle setup, tires, alignment, road or track conditions, and other modifications.

V1 to V2 Improvements

FactionFab's V2 FR-Spec system has been redesigned with several key improvements over the original V1:

• All-new components throughout the coilover assembly

• Revised application-specific spring rates

• Expanded and more dynamic 30-click damping adjustment range

• Offset front camber plates for increased negative camber adjustment after lowering

• Updated shock valving for performance-focused applications

• Improved thermal management for more consistent damping during demanding use

Specifications

Brand: FactionFab
Series: V2 FR-Spec Track
Condition: New
Damper Design: Monotube
Damping Adjustment: 30-Way Adjustable
Ride Height Adjustable: Yes
Independent Height Adjustment: Yes
Camber Adjustable: Yes
Front Camber Plates: Included
Front Spring Rate: 12.0 kg/mm
Rear Spring Rate: 9.8 kg/mm
Top Hats Included: Yes
Manufacturer Warranty: 1 Year
