DEATSCHWERKS DW440 SERIES FUEL PUMP WITH INSTALL KIT AND DUAL SPEED CONTROLLER- 08-14 WRX, 08-20 STI, 05-09 LGT

SKU: 9-441-C102-0910

$659.99 CAD
The DW440 is the ALL-NEW brushless in-tank fuel pump on the market.

The brushless DW440 delivers a lot of flow in a small package. With standard 13.8v battery voltage, the pump flows 440LPH at 40 PSI to support 1000hp on gas and 750hp on e85. If even more flow is needed, the 40amp controller and brushless design make this pump an ideal candidate for use at voltages beyond typical 13.8 battery voltage. The pump and controller have been endurance tested at voltages up to 24v. At a recommended max intermittent voltage of 20v, the DW440 flows 620LPH at 40psi.

All brushless pumps require digital controllers to drive the brushless armature. The controller included with the DW440 pump kits were designed exclusively for DW and includes features and options to maximize ease of integration into your fuel system. The DW brushless C1 pump controller is rated at 40amps and includes variable timing advance, digital thermal protection, and high capacity integrated heat sinks. The controller is housed in a compact 2.5x3.5 inch billet aluminum case making it easy to tuck away out of sight near the pump module. 3 different controller options are available to maximize compatibility with your fuel system… single speed, dual speed, or PWM compatible.

Controller Function:
- C102 is a dual-speed controller which allows you to operate the DW440 at low duty cycle during normal driving conditions and full duty cycle during high load conditions.

All DeatschWerks fuel pumps are backed by a 3-year no fault warranty.

Features:
- Dual-speed controller allows you to operate at a low duty cycle during normal driving conditions and full-cycle under heavy loads
- Capable of supporting 1000HP on gasoline and 750 HP on E85
- 620LPH open flow, 440LPH at 40psi
- 3-year no-fault warranty

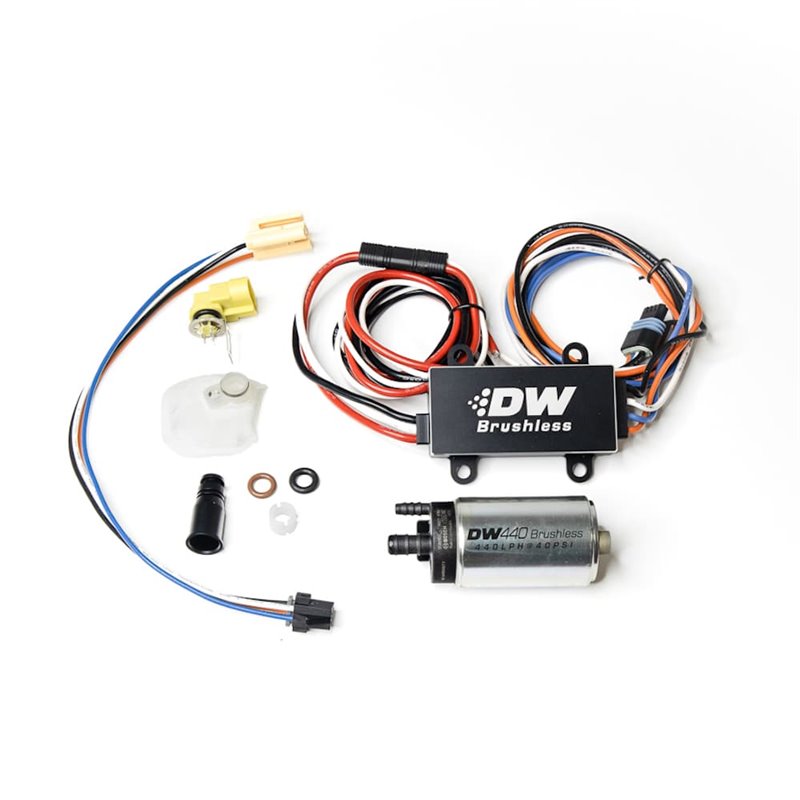

Kit Includes:
- DW440 Brushless 440 LPH Fuel Pump
- DW Brushless Controller
- Controller Harness w/Flying Leads
- 4 Wire Bulkhead w/Retainer Clip and O-Ring
- Pump to Bulkhead Harness
- Fuel Sock w/Retainer Clip
- 12” Submersible Fuel Injection Hose
- 5/16” Adjustable Hose Clamps (x2)

Notes:
- Only brushless fuel pumps require the fuel pump controller.
- Does NOT fit previous generations.

Fitment:
2008-2020 Subaru STI & Type-RA
2008-2014 Subaru WRX
2005-2009 Subaru Legacy GT & Spec. B
2005-2009 Subaru Outback XT
