ACT

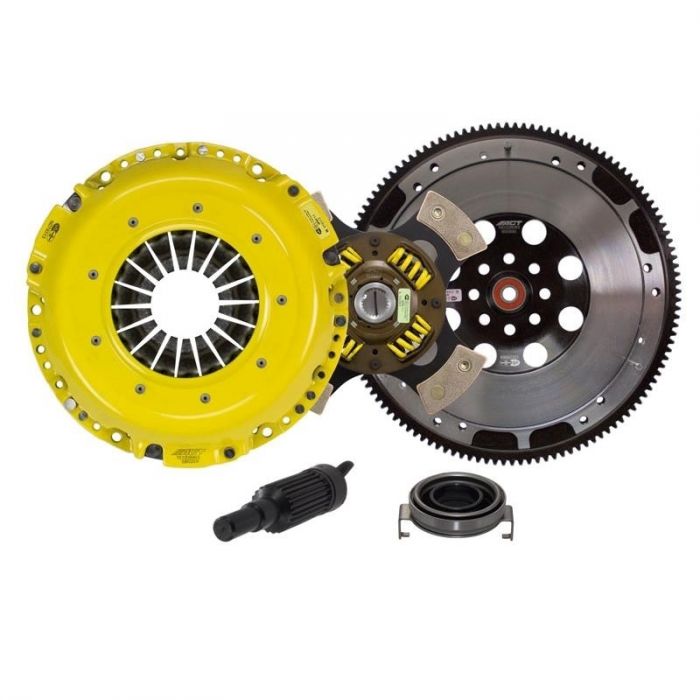

ACT HEAVY DUTY RACE SPRUNG 4-PUCK CLUTCH KIT WITH FLYWHEEL - 2006-2021 WRX, 2022+ WRX

SKU: ACTSB11-HDG4

$1,525.99 CAD $1,770.41 CAD

⏳ Sale ends in {timer}

SB11-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.



More Information
Manufacturer ACT
Warranty Manufacturer
Color Yellow
Alignment Tool Included Yes
Disc Material Ceramic
Disc Style Sprung Hub
Disc Type 4-Puck
Flywheel Included Yes
Pilot Bearing Included Yes
Pressure Plate Style Push
SFI Approved Yes
Throwout Bearing Included Yes
Torque Capacity 650 ft/lbs - Crank
