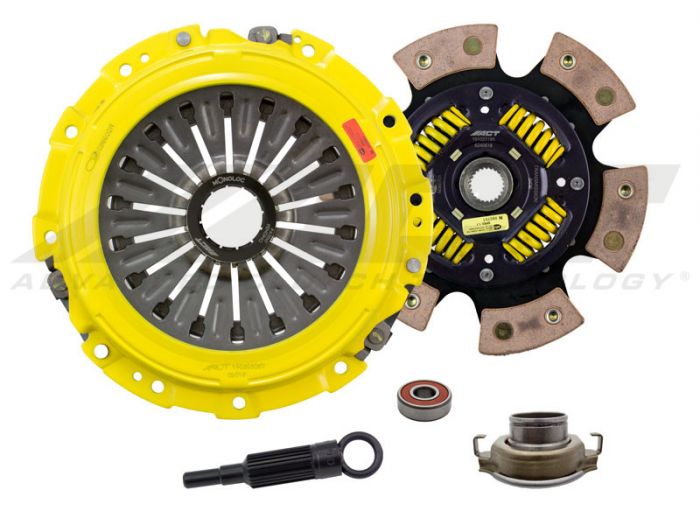

ACT HEAVY DUTY 6-PUCK DISC CLUTCH KIT - 06-17 WRX, 05-12 LGT, 2006 SPEC B, 06-08 FXT, 2022+ WRX

The ACT SB5-HDG6 kit features ACT’s proven Heavy Duty pressure plate, engineered for high horsepower street or race applications. This pressure plate uses ACT’s exclusive diaphragm design to deliver increased clamp load, reduced deflection, and extended clutch life. Each diaphragm spring is four-stage heat-treated for exceptional strength and consistent performance.

The 6-pad, spring-centered race disc is built to handle aggressive driving conditions. Its spring-center design effectively damps torsional vibrations while resisting failure under extreme use. Reinforced spring retainers and wraparound spring windows improve durability and strength. Engagement is firmer and more direct than stock, allowing for faster, more confident shifts.

Specs

• Torque Capacity: 535 ft-lbs (69% over OE)
• Disc Material: Ceramic
• Disc Diameter: 9 in / 228 mm
• Input Shaft Diameter: 1 in
• Pressure Plate Type: Heavy Duty
• Product Weight: 14.9 lbs

Performance Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, mild gear rattle
• Life: Moderate friction life enhanced by ACT’s precision-engineered diaphragm design
• Quality: Premium ceramic friction materials ensure high heat tolerance and reliable performance
• Recommended Use: Ideal for high horsepower street or race setups
• ACT Difference: Every unit is 100% clamp-load tested and dynamically computer balanced for smooth, high-RPM operation

Note: 2005-2009 Legacy GT must use a 2006-2007 WRX flywheel for proper fitment.
