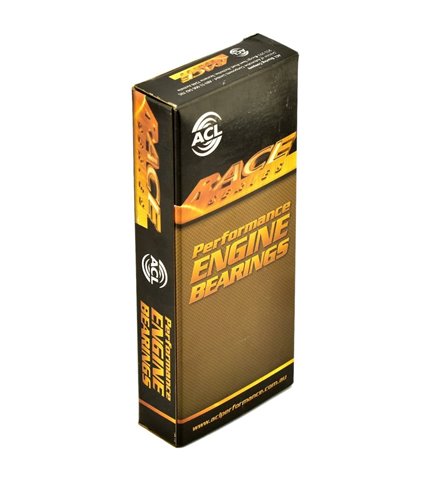

ACL Subaru EJ20/EJ22/EJ25 (For Thrust in #3 Position) 0.25mm Oversized High Performance Main Bearing

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.



Designed to withstand higher RPM conditions, ACL Race Series Bearings are available for many of the popular 4, 6 & 8 cylinder applications.



- High strength overlay plate with reduced thickness for improved fatigue properties

- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.

- Increased crush for improved bearing retention

- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.

- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.

- Tight consistent wall tolerances to help you maintain consistent clearances.

- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.



- Race / Performance

- Oversized 0.25mm Main Bearing Set

- Thrust #3 Location



- Recommend for high RPM / high horsepower engine builds.

- Subaru main bearings are specific to either a #5 or #3 journal bearing position. Journal bearing position is not VIN or year specific, it must be known prior to purchase.



2004-2021 Subaru STI & Type-RA

2002-2014 Subaru WRX
