Verus Engineering Vented UCW Carbon Fiber Endplates - Universal
OVERVIEW

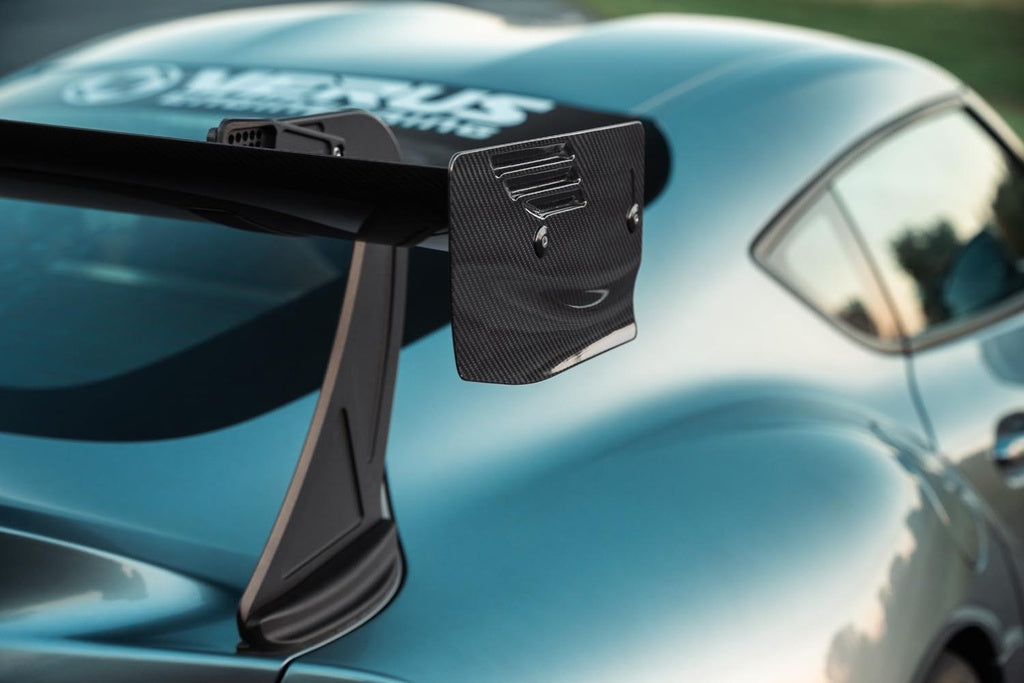

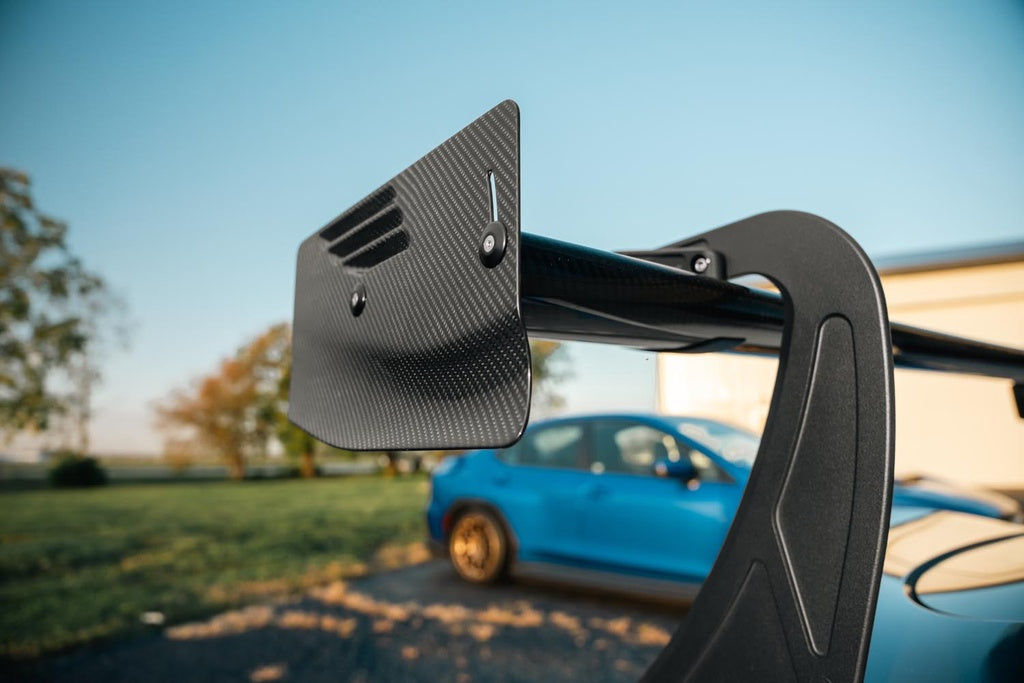

Add an aesthetic flare to your UCW wing with the new vented UCW carbon fiber endplates. The units bolt on exactly how our standard endplates bolt on with no change in hardware. The units are produced from 2x2 twill pre-preg carbon on machined aluminum molds for a consistent fit and finish. The units are finished with a gloss automotive clear for UV resistance.

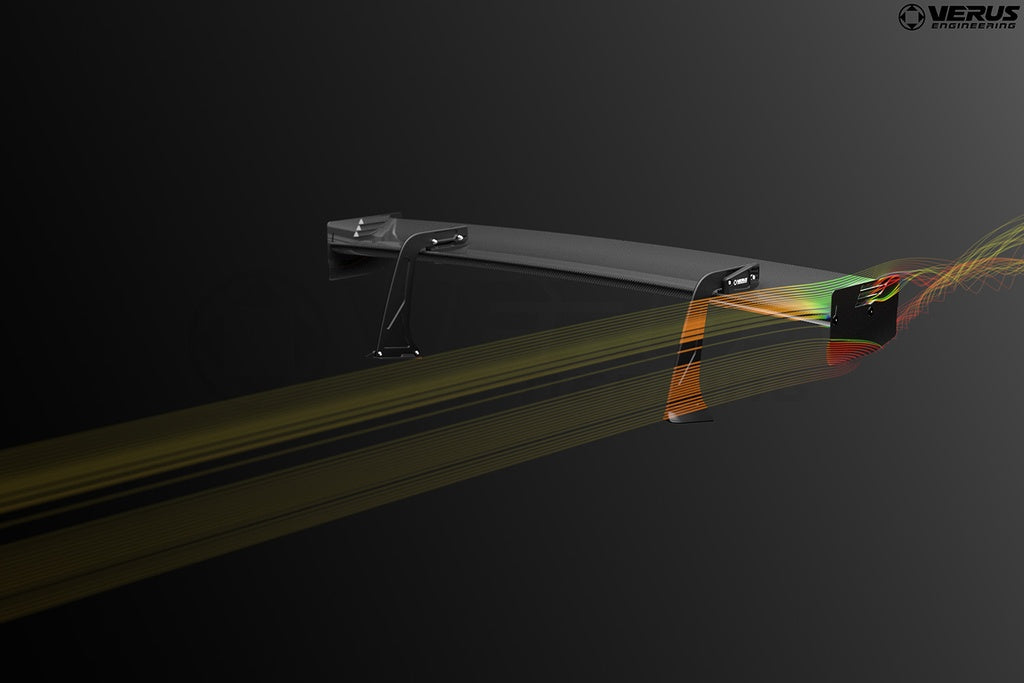

These were designed and developed in CFD to improve the performance and aesthetics of the UCW Rear Wing Element. By venting the top side of the wing in a specific way and shaping the bottom portion of the endplate, we were able to reduce drag, increase downforce which resulted in an improvement of 1.2% L/D on our rear wing element at 10 degrees AOA. Testing was conducted using a generic swan neck upright and mount style in free stream airflow.
WHAT IS INCLUDED

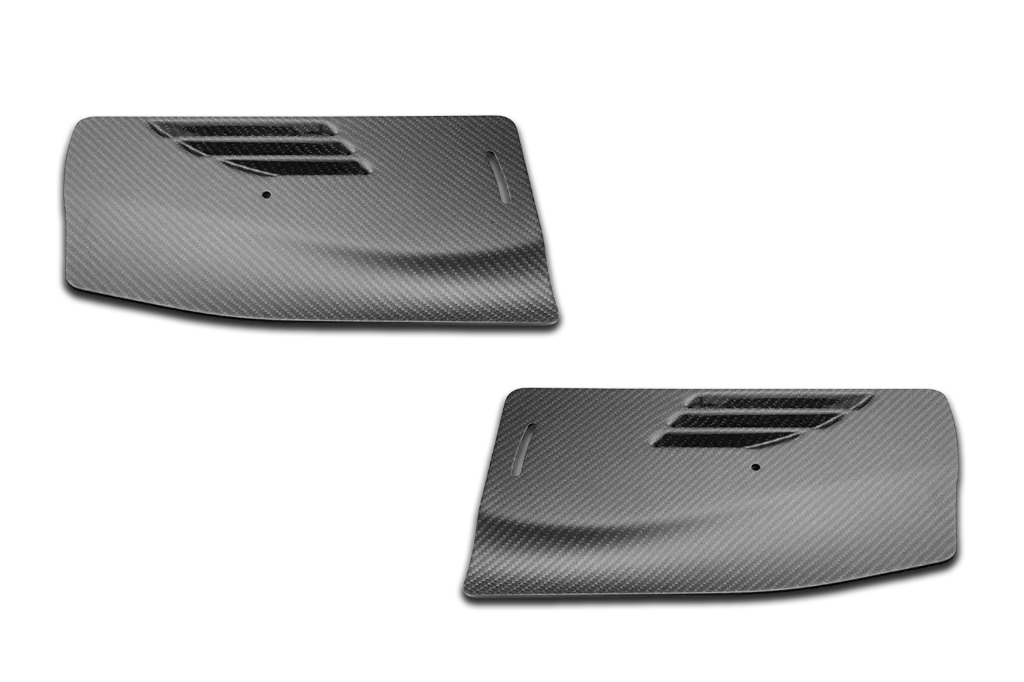

- 2 - UCW Vented Carbon Fiber Endplates
PART NUMBER
W-A0009
Features:
- Improved Rear Wing Performance (L/D improvement of 1.2%)
- Aesthetically Tasteful Vents, Shape, and Expanding 3D Contour
- Increased Downforce (0.3%)
- Reduced Drag (0.9%)
- Developed in CFD using Wing in Free Stream Airflow
Specifications:
- Carbon Fiber Endplate - 2x2 Twill Pre-preg carbon, Autoclave Cured, Automotive High-Gloss Clear
- Bolts Directly to *All* UCW Wing Elements
- Developed in CFD for Improved Performance
Science:
The Verus Engineering UCW Rear Wing was specifically designed for the typical enthusiast looking for a high downforce, efficient wing, for most street and track applications. To further enhance performance and aesthetics, we set out to develop endplates to push the envelope further. By reducing the vortices the endplate and wing produce as well as shedding some of the high pressure air on the top side of the wing, we were able to improve the wings' L/D (efficiency) by 1.2%.
Product Video:
Introducing our new UCW Vented Carbon Endplates.
