Verus Engineering Brake Cooling Kit - Toyota GR86

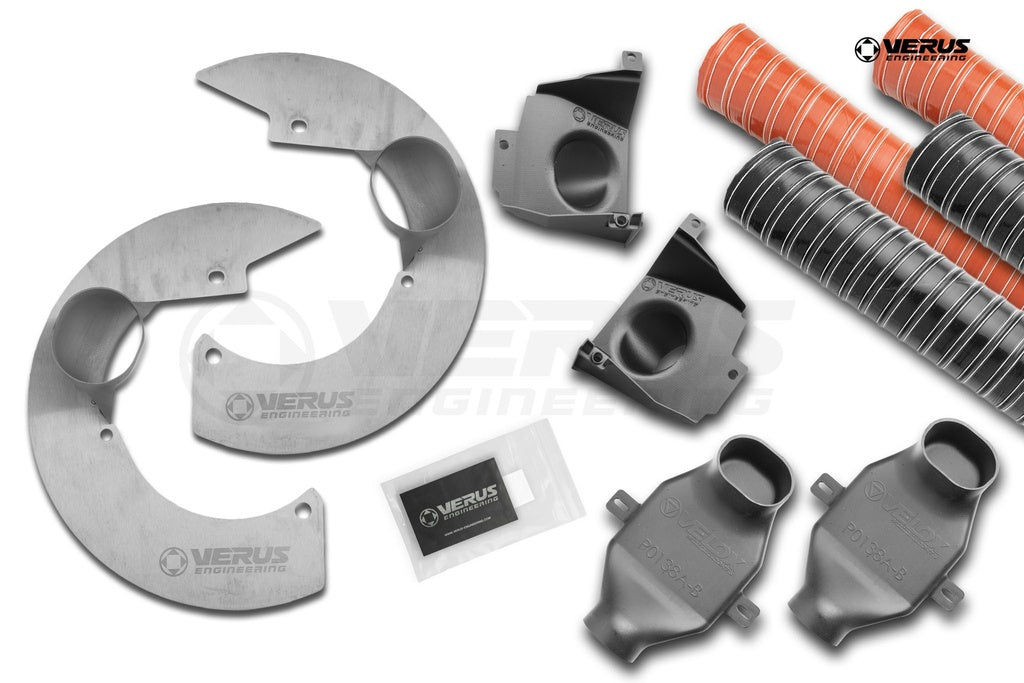

WHAT IS INCLUDED

• (2) Backing Plates with riveted 316L 3D-printed stainless steel ducts (LH and RH)
• (2) 2.5" Pre-Cut High-Temperature Silicone Brake Hoses
• (2) 3.0" Pre-Cut High-Temperature Silicone Brake Hoses
• (4) 3.0" Stainless Steel Hose Clamps
• (4) 2.5" Stainless Steel Hose Clamps

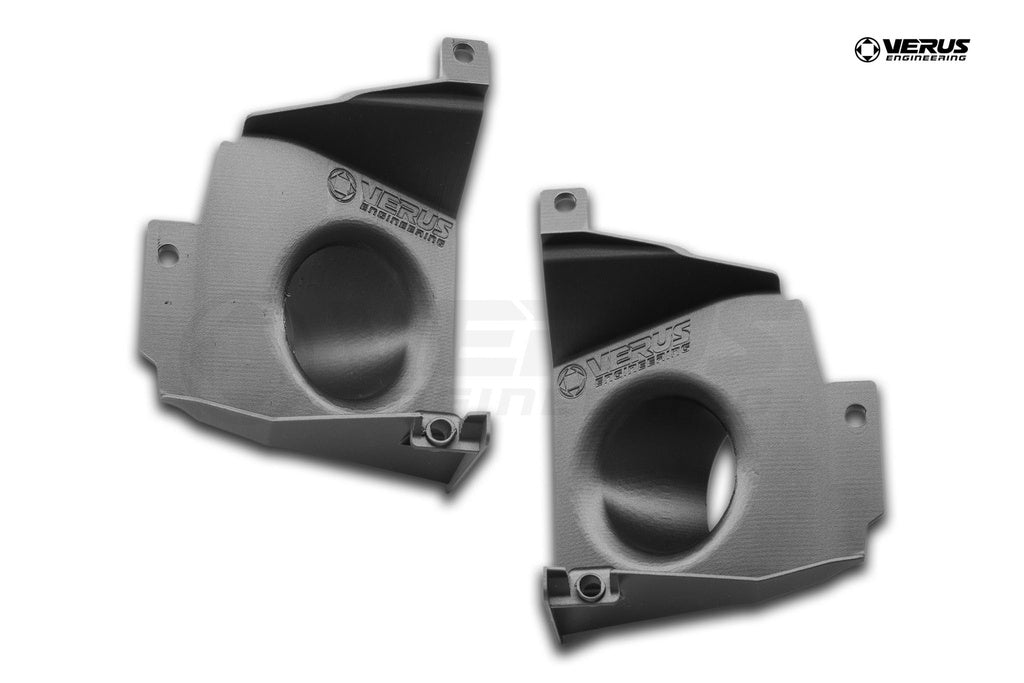

• (2) Fender Pancake Ducts
• (2) 3D-Printed Carbon Nylon Inlet Ducts
• (2) Pancake Duct Brackets
• (1) Hardware Kit with all necessary installation hardware

PART NUMBER

A0501A

FEATURES

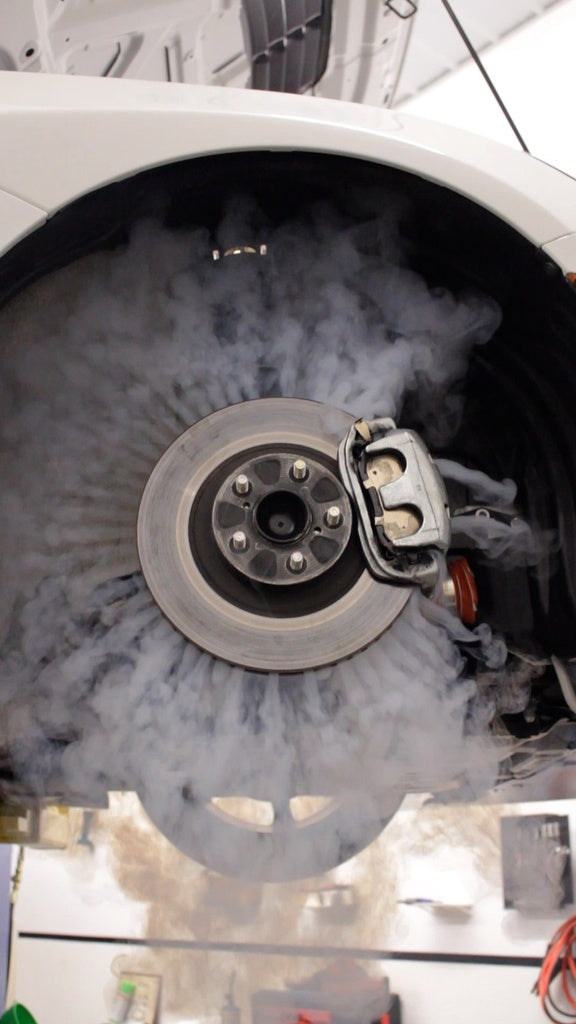

• Directs air into the center of the rotor
• Stainless steel backing plates help direct additional airflow into the center of the rotor
• OEM-style installation
• Installs in a few hours with minimal hand tools and mechanical knowledge

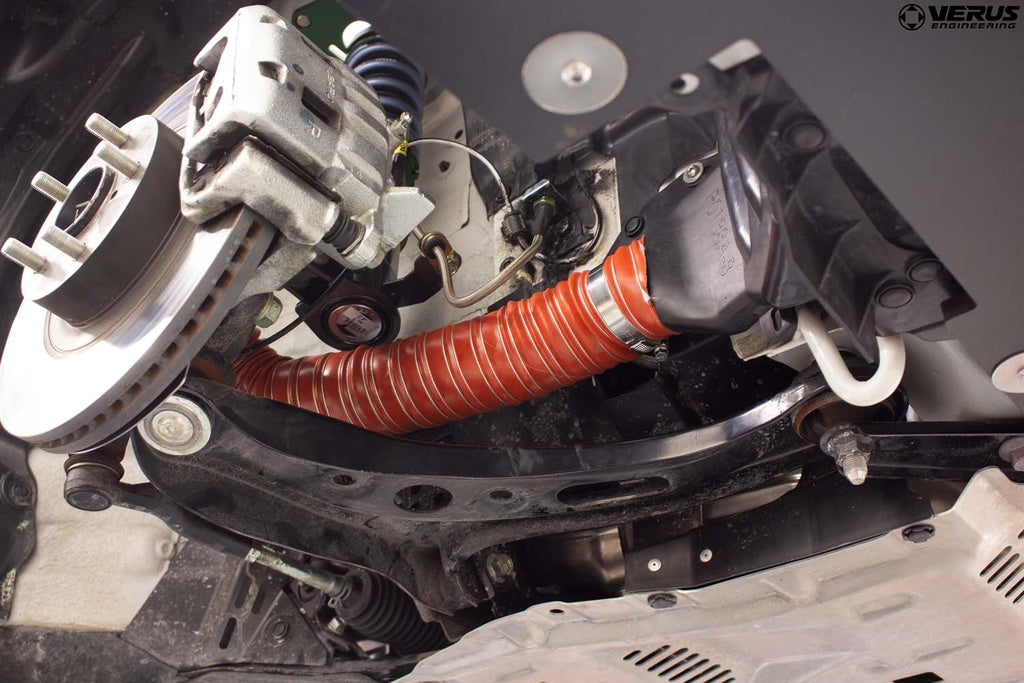

• Short duct routing for maximum cooling efficiency
• Pulls air from a high-pressure zone in the front bumper

SPECIFICATIONS

• Stainless steel backing plates
• Dry carbon air ducts
• Hard plastic fender ducts (pancake ducts)
• 3D-printed carbon nylon inlet ducts
• Pre-cut 3.0" and 2.5" brake duct hoses
• All necessary installation hardware included
• Made in the U.S.A.

STILL NEED WASHER FLUID?

Installation of the Brake Cooling Kit requires removal of the OEM washer fluid reservoir. A smaller replacement reservoir is available separately, allowing you to retain windshield washer fluid functionality while using the Brake Cooling Kit.
