OVERVIEW

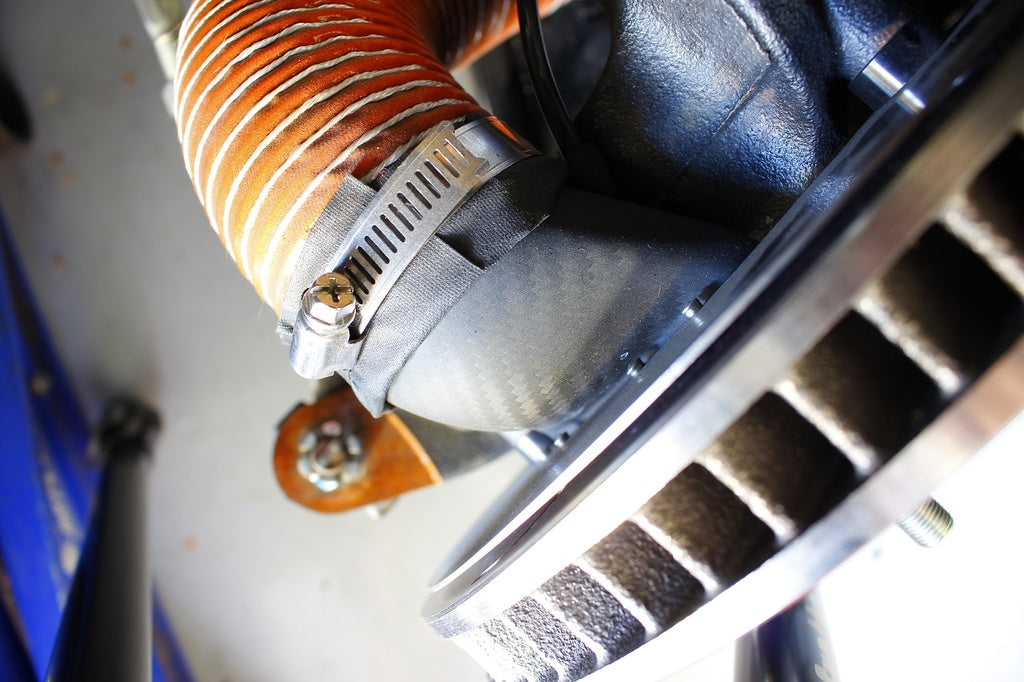

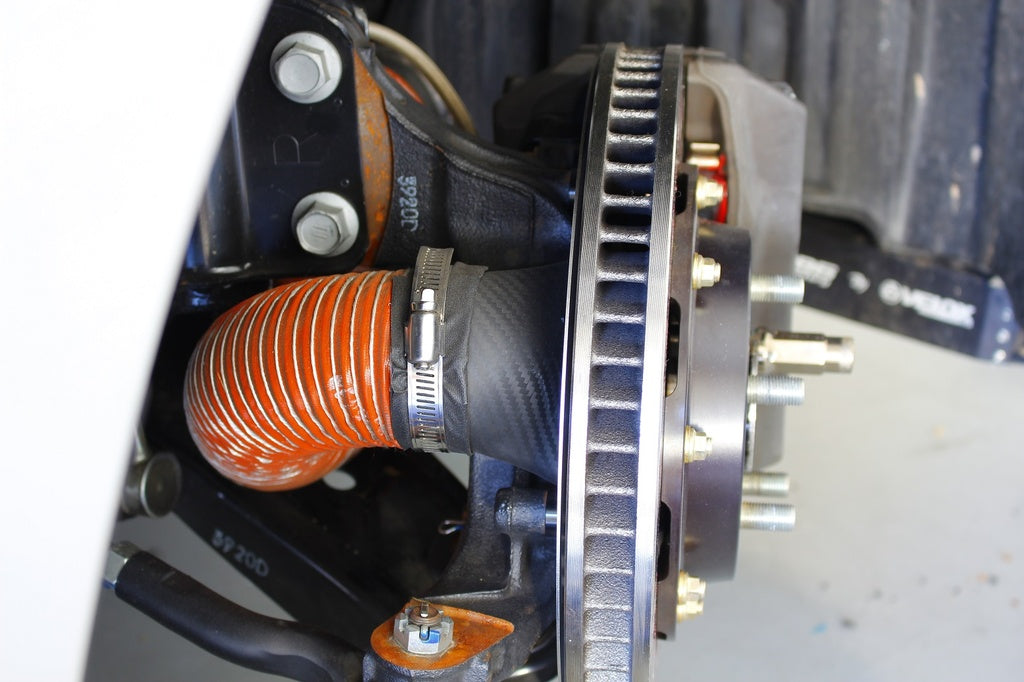

The Verus Engineering Full Brake Cooling Kit is configured in an OEM style format, with emphasis on the shortest route possible. The kit dramatically reduces rotor temperatures on track, improving pad and rotor wear. Using the OEM fog lights as the inlet to the kit and a well-formed duct in the inner fender line this is the brake cooling kit to have. The kit comes with everything necessary for an install, including pre-cut hoses.
*Please note that it does require the removal of the washer fluid reservoir. There are multiple ways to retain washer fluid reservoirs though. If you would to use washer fluid, please check out our Washer Fluid Reservoir Kit.
During the design process; we utilized in-house scan data and 3D printing. This resulted in a product that features a near OEM fit and finish.
This brake cooling kit was designed for owners looking to maximize their brake's cooling efficiency and increase the brake's ability to do their job.

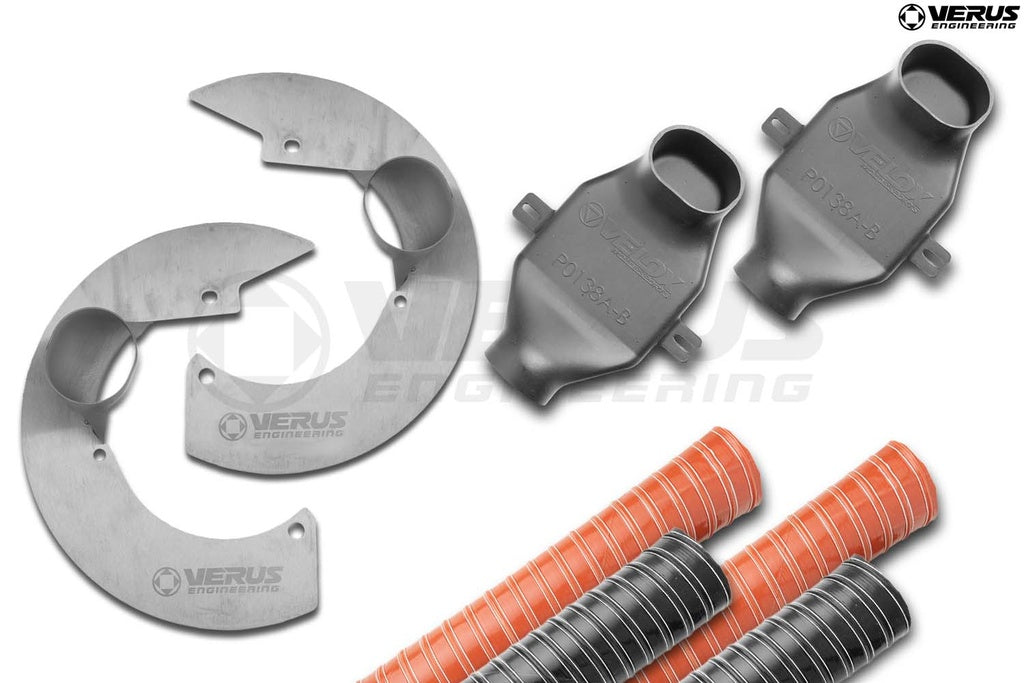

WHAT IS INCLUDED
-

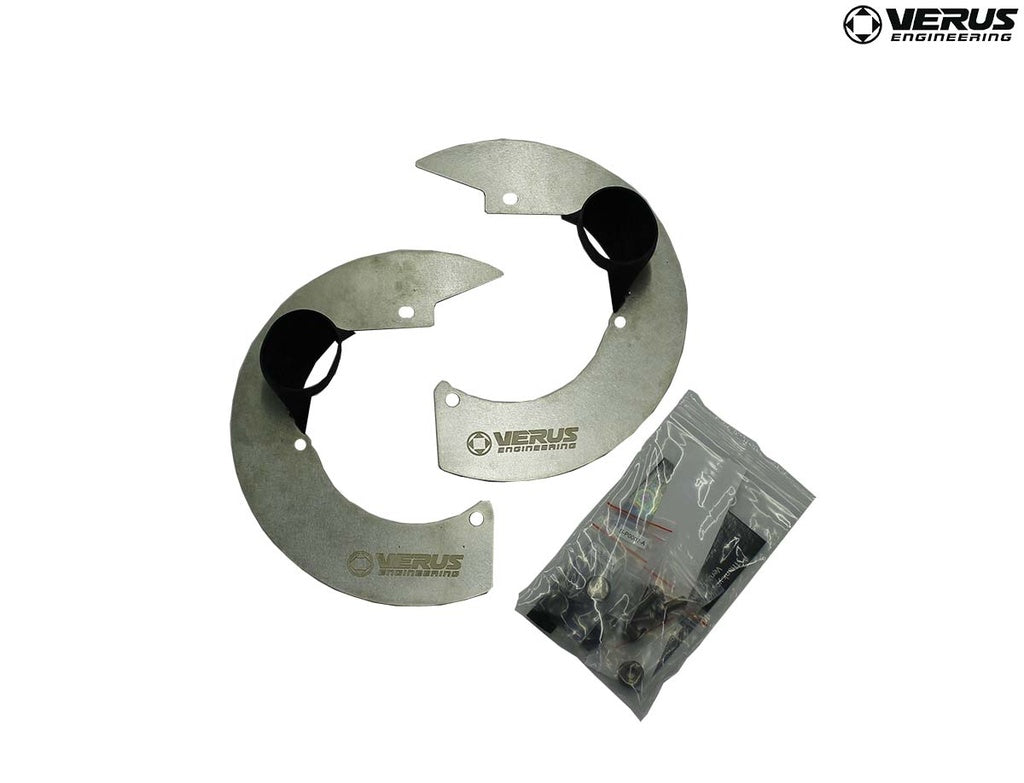

Backing Plate Including 316L 3D Printed Stainless Steel Ducts Riveted On (2, LH and RH)
- 2.5" Pre-Cut Silicone High Temp Brake Hose (2)
- Fender Pancake Duct (2)
- Fender Pancake Duct Bracket (2)
- 3.0" Pre-Cut Neoprene Brake Hose (2)
- 3.0" Stainless Hose Clamp (4)
- 2.5" Stainless Hose Clamp (4)
- Foglight Duct (2)
- 2013-2016 MY Foglight Duct Bracket (2)
- 2017+ MY Foglight Duct Bracket (2)
- Steering Rack Limiter Kit
- Hardware Kit, Includes All Necessary Pieces to Install Kit Seamlessly
PART NUMBER
A0037A
Features:
- Direct Air into the Center of the Rotor
- Stainless Backing Plate Adds Even More Airflow into Center of the Rotor
- OEM Type Install
- Installs in a Few Hours With Minimal Hand Tools and Know-How
- Short Routing to Maximum Cooling Efficiency
- Pulls Air from High-Pressure Zone in Front Bumper
Specifications:
- Stainless Backing Plate
- Dry Carbon Air Duct
- Hard Plastic Fender Ducts (Pancake Duct)
- 3D Printed Carbon Nylon Inlet Duct
- Pre-cut 3" and 2.5" Brake Duct Hose
- All Necessary Hardware Included
- Made in the U.S.A.
Still need washer fluid?
The installation of our Brake Cooling Kit requires the removal of the OEM washer fluid reservoir. As a remedy for this, we offer a smaller reservoir replacement that grants the ability to run our Brake Cooling Kit as well as washer fluid.
