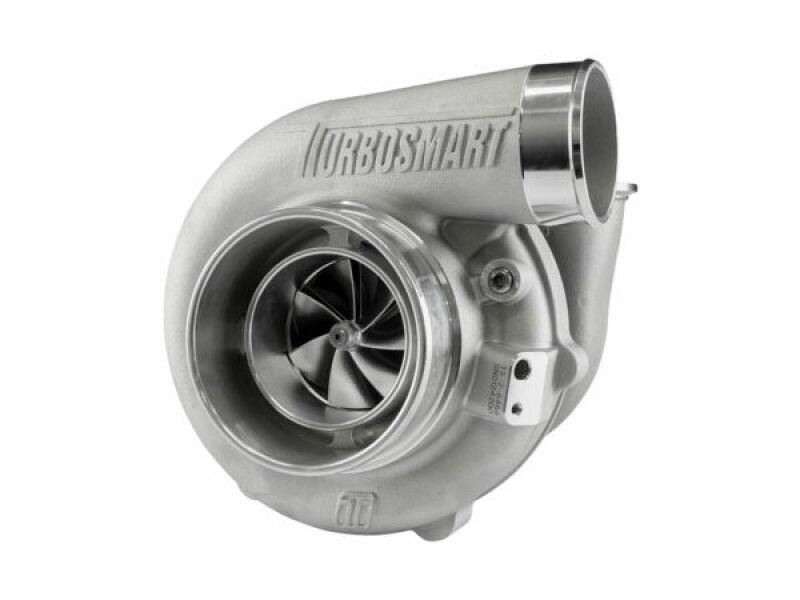

Turbosmart Water Cooled 6466 V-Band 1.07AR Externally Wastegated TS-2 Turbocharger

Smaller, Lighter & Faster

Turbosmart's turbocharger series has been developed using modern materials, advanced design, and manufacturing techniques to meet the demands of both motorsport and performance enthusiasts.

Every Turbosmart turbocharger comes standard with the components required for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings and Turbosmart's proprietary bearing and main shaft combination. The ultra-low rotating mass of the bearing and shaft assembly is paired with aggressive compressor aerodynamics to deliver exceptional transient response while maintaining strong performance at high loads and flow rates.

Turbosmart turbochargers are designed with an end-to-end approach focused on producing power through reduced backpressure and high-performance turbine technology—all while remaining smaller, lighter, and faster to respond.

Available Configurations

• TS-1 oil-cooled turbochargers
• TS-2 oil and water-cooled turbochargers
• V-Band turbine inlet options
• Various T3 flange options
• Various T4 flange options
• Reverse rotation available in select sizes
• Multiple A/R options
• Internal wastegate options
• External wastegate options

Features

• Unparalleled transient response
• Aggressive compressor aerodynamics
• 7+7 2618 aluminum splitter compressor wheel
• Lightweight 310S stainless steel investment-cast turbine housing
• Lightweight aluminum compressor cover
• CFD-designed housings for optimized A/R and airflow
• 713C Inconel turbine wheel for extreme EGTs
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4" / 101.6mm
• Compressor Inducer: 64mm
• Turbine Inlet: V-Band (2.25")
• Turbine Exducer: 66mm
• Turbine A/R: 1.07
• Turbine Outlet: V-Band (3.00")
• Weight: 6.06kg / 13.3lbs
• Horsepower Rating: 825–955 HP
