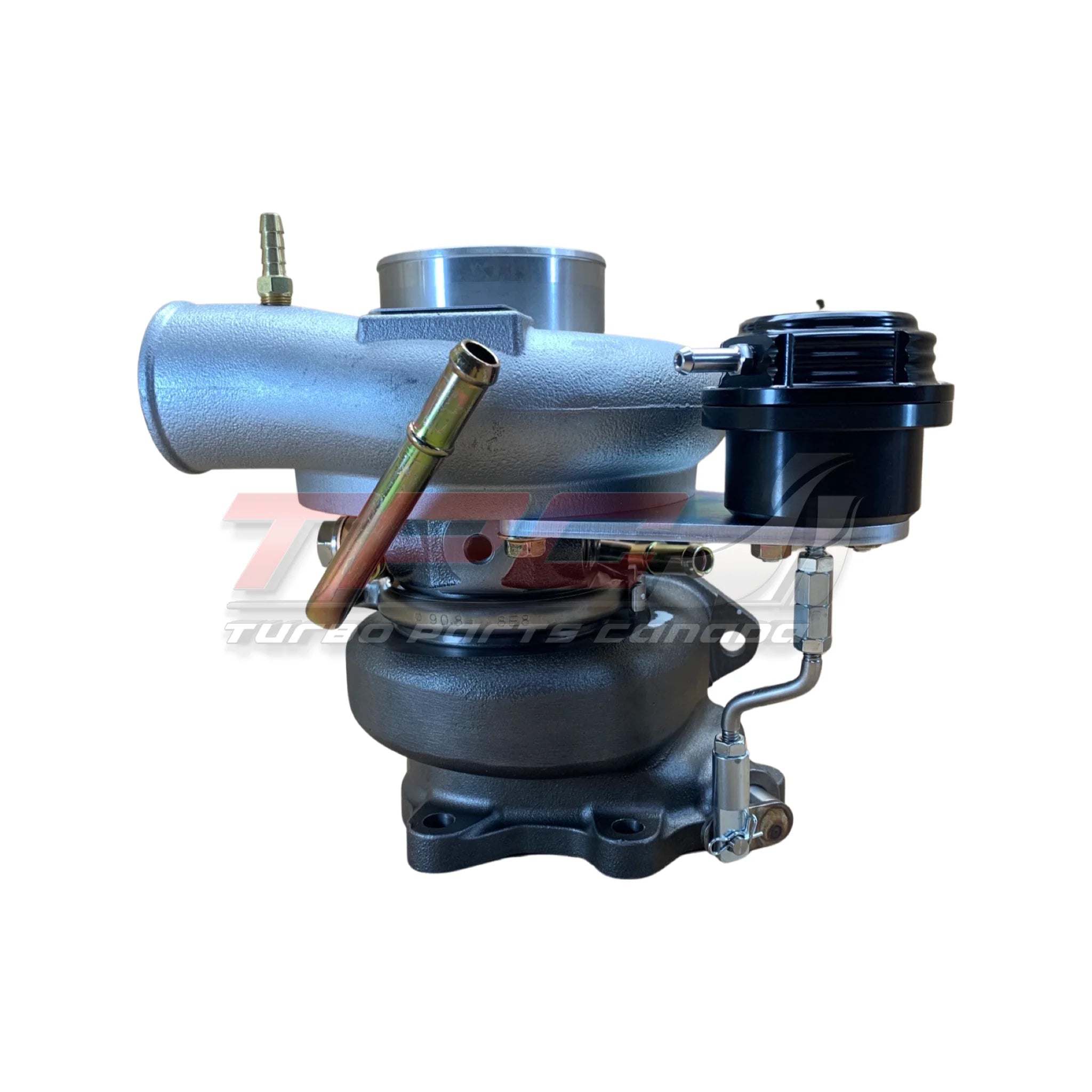

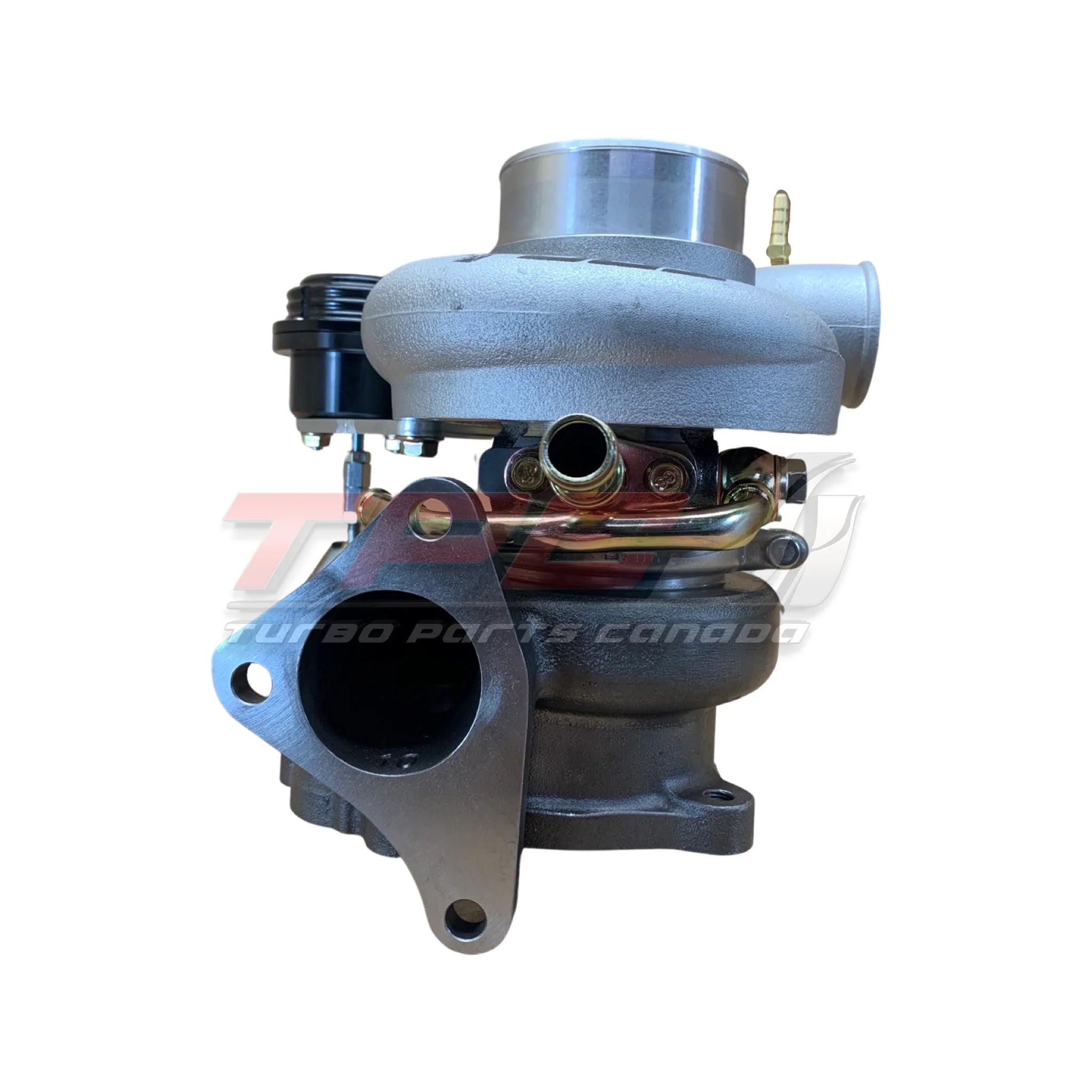

This bolt on Subaru turbocharger now features a G-series inspired 62mm 9 blade compressor wheel with 3" inlet and internal gate provision will easily get you north of 400whp on pump gas with stock compression and minimal fuel upgrades. Recommend for 2.5L applications with 500+ WHP possible on ethanol or race fuels.
Upgrade to our NEW 5+5 turbine wheel for better exhaust flow and less back pressure at higher RPM.
Requires TGV deletes on USDM cars for intake clearance. Some intakes may require a 45 degree angled silicone, we recommend Perrin intakes.
- Light weight turbine wheel design
- Upgraded journal bearing system
- Also available in Ball Bearing
- High Speed VSR Balancing in house
- Subaru bolt on 10cm
- 14 PSI actuator included or welded flapper for external WG
- Free Install kit included with exhaust gaskets, bolts and water lines
TPC recommends to run the Perrin 3 inch turbo inlet pipe for maximum airflow into the turbo.
|
OEM Part Number |
VARIOUS |
|
Compressor Wheel |
62MM BILLET 9 BLADE |
|
Turbine Wheel |
58MM 9 BLADE 58MM 5+5 BLADE |
|
Bearing Type Options |
UPGRADED JOURNAL BEARING SYSTEM BALL BEARING SYSTEM |
|
Engine |
2L AND 2.5L |
|
Turbocharger Upgrades |
UPGRADED COMPRESSOR WHEEL, UPGRADED TURBINE WHEEL, UPGRADED BEARING SYSTEM |
|
Potential Power |
500+WHP with supporting mods |
|
Install Hardware Included |
YES |
|
VSR Balanced |
YES |
|
Applications |
MULTIPLE OPTIONS |
|
Turbine Housings |
UPGRADED |
