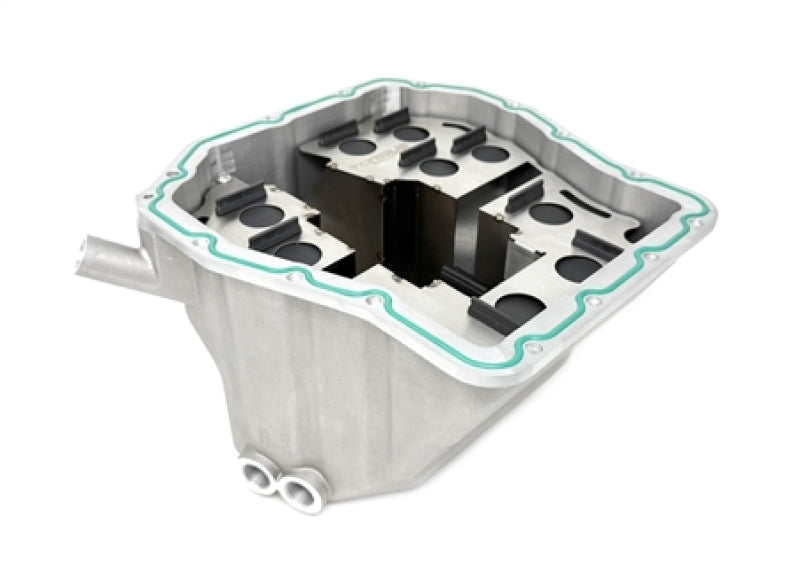

Torque Solution V2 HD Oil Pan with Race Baffle - EJ20/EJ25

Product Overview

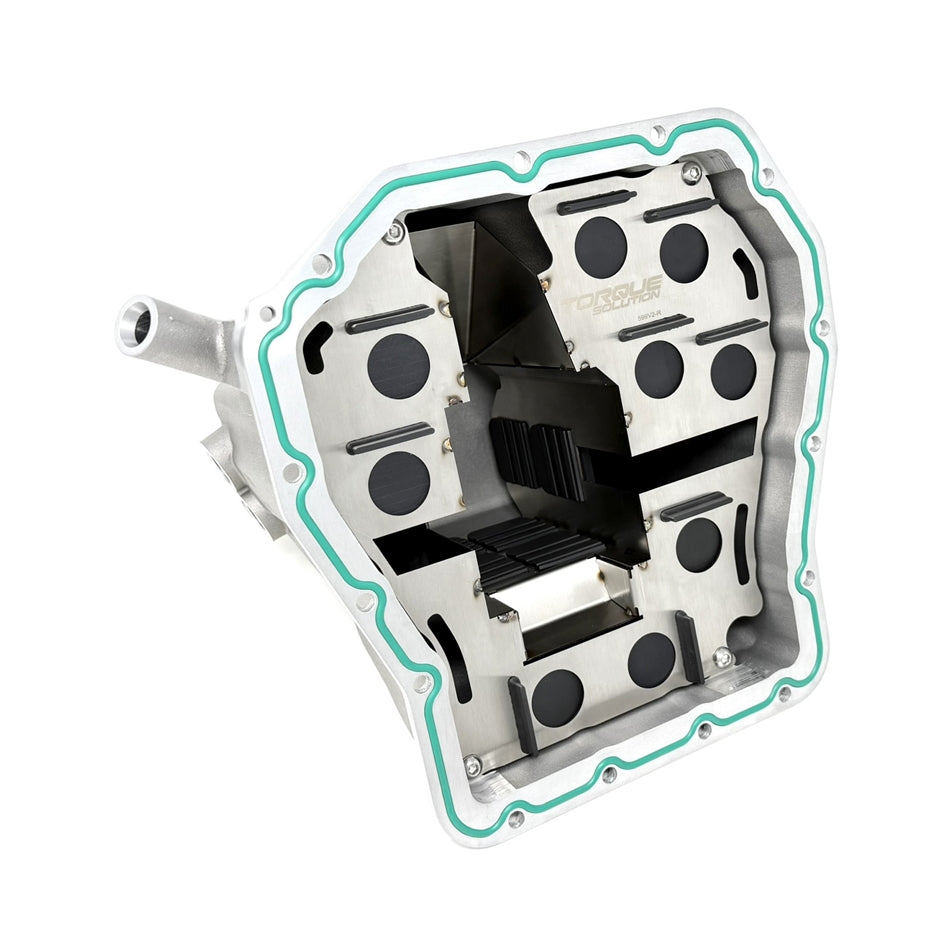

Increase oil capacity and control oil movement in an EJ engine with a cast-aluminum sump and a removable internal race baffle. A machined O-ring groove simplifies pan sealing and subsequent removal.

Features

• Machined cast aluminum
• Cooling fins
• TIG-welded stainless bolt-in baffle
• FKM one-way oil-control flaps
• Seamless FKM pan O-ring
• Manufacturer limited lifetime warranty

Specifications

• Manufacturer part number: TS-SU-599V2-R
• Approximate oil capacity: 6 quarts
• Drain port: OEM M20
• Auxiliary port: 1/2-inch NPT
• Engine: EJ20/EJ25

What's Included

• Cast-aluminum oil pan
• Preinstalled race baffle and four M6 x 15 bolts
• Seamless pan O-ring
• Two 2 x 10mm dipstick-tube O-rings
• OEM M20 drain plug 807020010 and five copper gaskets
• 1/2-inch NPT plug and 1/2- to 1/8-inch NPT adapter with Teflon tape
• Billet suction-tube spacer with two -117 FKM O-rings
• Two billet pickup-pedestal spacers
• Four -008 FKM bolt-retainer O-rings
• Four M6 washers
• Two M6 x 30 bolts
• Fourteen M6 x 18 pan bolts
• Two M6 x 25 pedestal bolts
• Oil pickup is not included

Vehicle Fitment

• Subaru EJ20/EJ25 engines
• 2002-2014 Subaru WRX
• 2004-2021 Subaru STI
• 2005-2012 Subaru Legacy GT
• 2005-2009 Subaru Outback XT
• Requires an aftermarket oil pickup; OEM and Moroso pickups are not compatible

Installation Information

Use an aftermarket pickup with the supplied spacers and seals. 2002-2005 WRX EJ20 requires EJ25 dipstick 11140AA150. Torque Solution confirms ETS and Killer B header clearance; a Perrin header requires slight compression of the upper primary tube toward the lower tube. Check header clearance during installation and use the specified sealing hardware.
