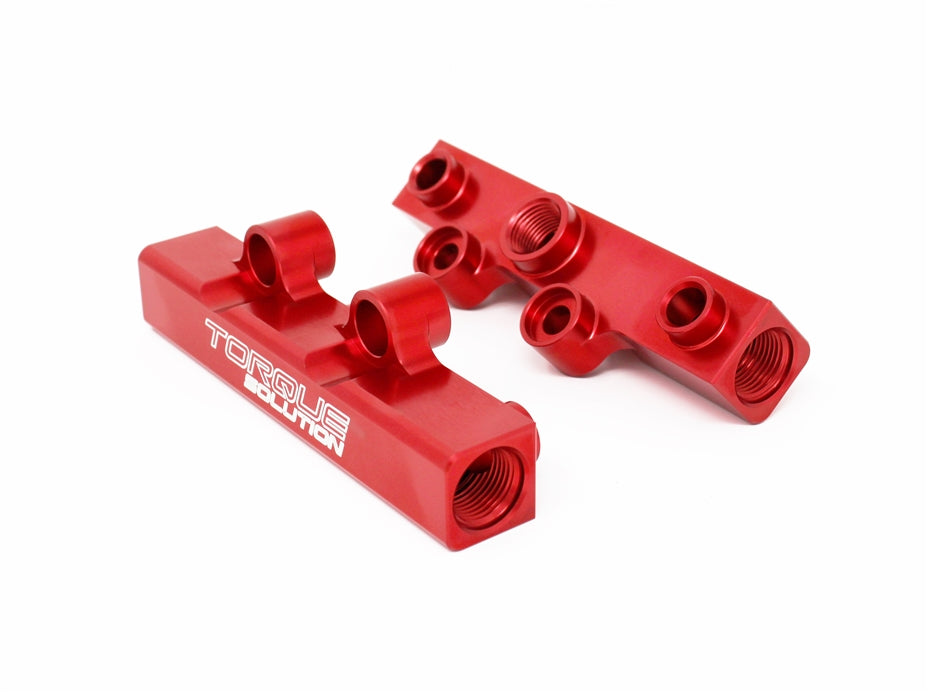

Torque Solution V2 Top Feed Fuel Rails - Red - 2002-2014 WRX, 2007-2020 STI

Product Overview

These V2 top-feed fuel rails support an upgraded fuel system on the listed Subaru applications. Their large internal bore and -8 ORB connections allow aftermarket fuel lines to be arranged in parallel. Two spacer heights accommodate differences in injectors and TGV housings.

Features

• Machined 6061 aluminum rails
• Suitable for all fuel types
• Integrated port for an optional fuel pulse dampener
• Engraved Torque Solution logo
• Manufacturer limited lifetime warranty

Specifications

• Manufacturer part number: TS-SU-400R.2
• Rail bore: 5/8 inch
• Connections: -8 O-ring boss
• Pulse dampener port: 3/8 inch NPT
• Finish: Red

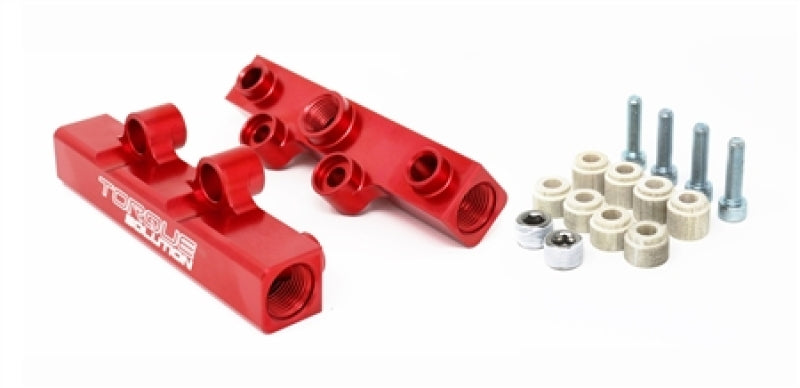

What's Included

• Two billet fuel rails
• Four M8-1.25 x 30 zinc socket-head bolts
• Four short and four tall phenolic spacers
• Two 3/8 inch NPT stainless hex plugs
• Fuel lines, -8 ORB fittings and optional pulse dampeners are not included

Vehicle Fitment

• 2002-2014 Subaru WRX
• 2007-2020 Subaru STI
• 2008-2012 Subaru Legacy GT
• 2006-2013 Subaru Forester XT
• Top-feed injector configuration; use the supplied spacers appropriate to the injector and TGV combination

Installation Information

Aftermarket fuel lines are required. Select the appropriate spacer height, connect the rails with compatible -8 ORB fittings and plug unused dampener ports with the supplied plugs. Depressurize the fuel system before installation and thoroughly inspect for leaks before operation.
