Torque Solution Titanium Top Mount Charge Pipe Kit - Burnt Blue - 2015-2021 WRX

Product Overview

Replace the FA20DIT WRX's corrugated factory charge pipe with a formed titanium passage. A billet turbo adapter and molded turbo/bypass-valve coupler connect the turbo to the top-mount intercooler using the original routing.

Features

• Titanium charge pipe
• CNC billet aluminum turbo adapter
• Four-ply silicone couplers
• Silicone-safe stainless clamps
• Manufacturer limited lifetime warranty

Specifications

• Manufacturer part number: TS-SU-843-BU
• Finish: Burnt Blue
• Pipe transitions from 2.25 inches at turbo to 2.75 inches at intercooler

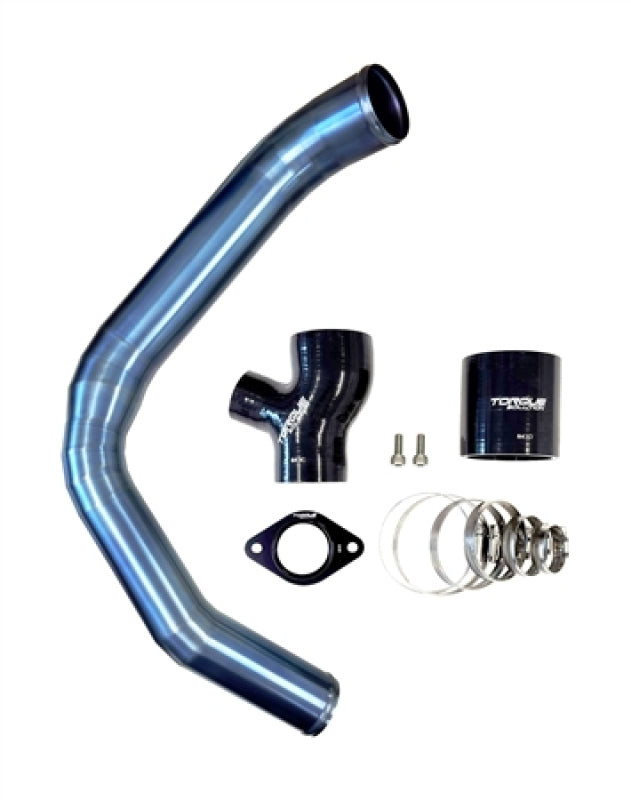

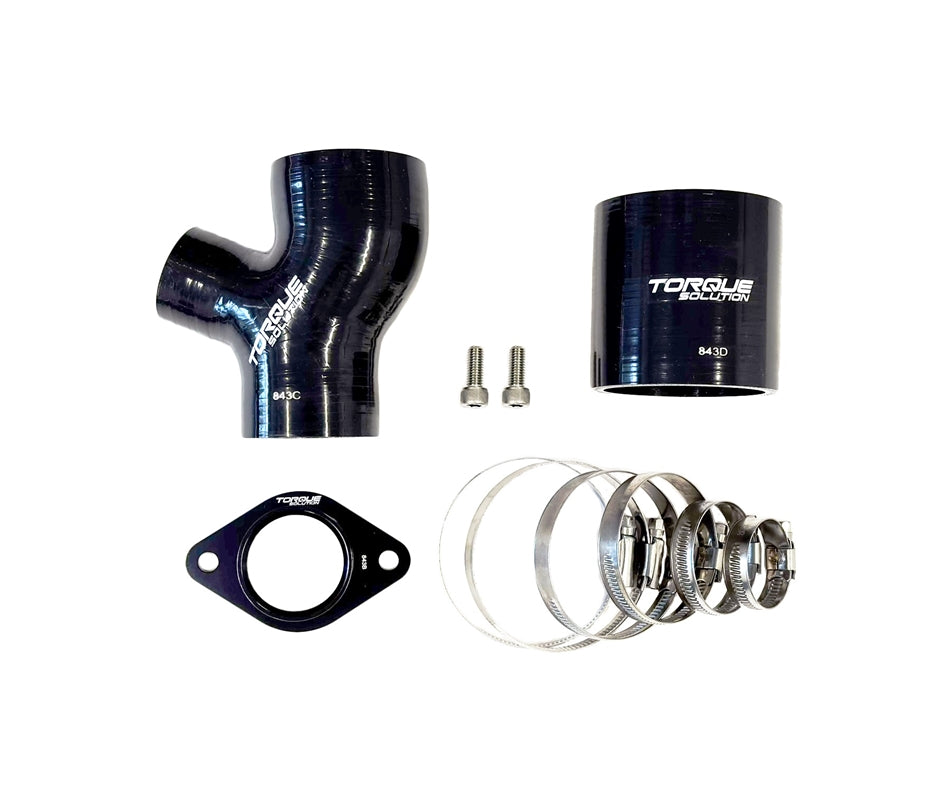

What's Included

• Titanium pipe and billet turbo adapter
• Molded turbo/bypass-valve coupler
• 2.75-inch intercooler coupler
• Two 60-80mm clamps; one each 50-70mm, 40-60mm, 30-45mm and 23-35mm clamp
• Two M8 x 20 stainless socket-cap screws

Vehicle Fitment

• 2015-2021 Subaru WRX, FA20DIT engine
• OEM top-mount intercooler or a direct-replacement top-mount intercooler only

Installation Information

Fit the supplied adapter and couplers with their corresponding clamps. Check every charge-air connection after assembly. The manufacturer states that this kit does not require a tune.
