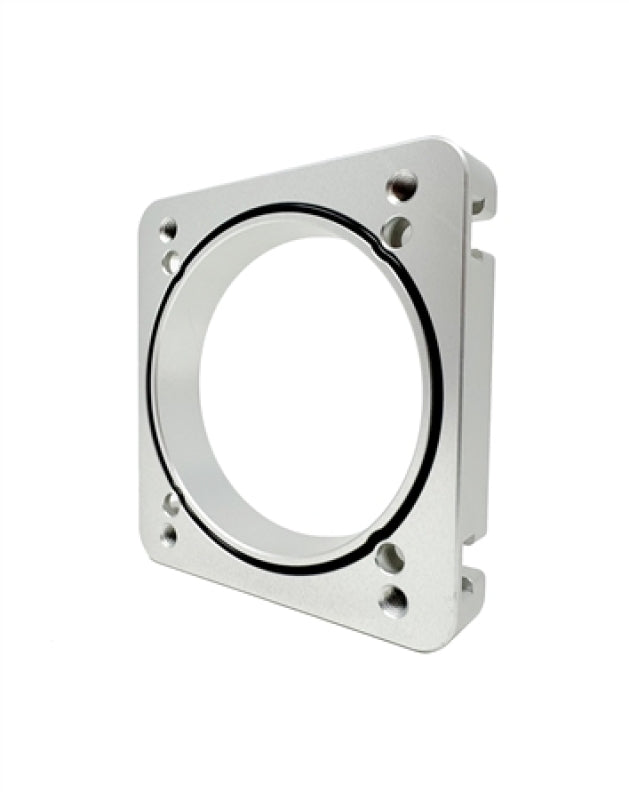

Torque Solution 76mm Throttle Body Adapter - Silver - Process West / Corsa Veloce Manifold

Product Overview

Adapt a Toyota 76mm throttle body to a compatible Subaru EJ intake manifold for a high-power build. This big-bore adapter is specifically configured for Process West or Corsa Veloce manifolds and requires throttle-body motor conversion and tuning.

Features

• 6061 billet aluminum
• Anodized silver finish
• O-ring sealing

Specifications

• Manufacturer part number: TS-SU-870P-S
• Throttle body references: Toyota 22030-0S010 or 22030-0F010
• Adapter configuration: P
• Compatible intake manifolds: Process West or Corsa Veloce

What's Included

• Billet adapter spacer
• Two large and four small O-rings
• Four M6 x 20 low-profile zinc bolts
• Four M6 x 50 stainless bolts
• Four M6 washers
• Seven rivets
• One M4 nylon-lock nut used as a spacer during rivet-cover installation
• Throttle body, transition coupler, clamp and aftermarket MAP sensor are not included

Vehicle Fitment

• 2004-2021 Subaru STI; 2004-2005 requires a compatible 2006-on DBW donor throttle-body motor
• 2006-2007 Subaru WRX
• 2008-2014 Subaru WRX only with compatible intake-manifold swap
• 2004-2008 Subaru Forester XT
• Requires Process West or Corsa Veloce intake manifold

Installation Information

Requires a tuner able to calibrate the converted throttle body and relocated MAP sensor. Transfer a compatible DBW motor from a 2006-2021 STI, 2006-2007 WRX or 2004-2008 Forester XT throttle body. A front-mount intercooler, potentially modified piping, 3.5-inch transition coupler and clamp are required. Relocate an aftermarket MAP sensor to the manifold or a vacuum block. Intake manifold images are illustrative; manifold is not included.
