Torque Solution HD Cast Aluminum Turbo Inlet - 3 inch - 2002-2007 WRX, 2004-2021 STI

Product Overview

Replace the corrugated rubber inlet with a rigid cast-aluminum passage on EJ applications using an STI-style intake manifold. This specific kit supplies the 3 inch turbo coupler. The included recirculation adapter and speed-density cap support either installation configuration.

Features

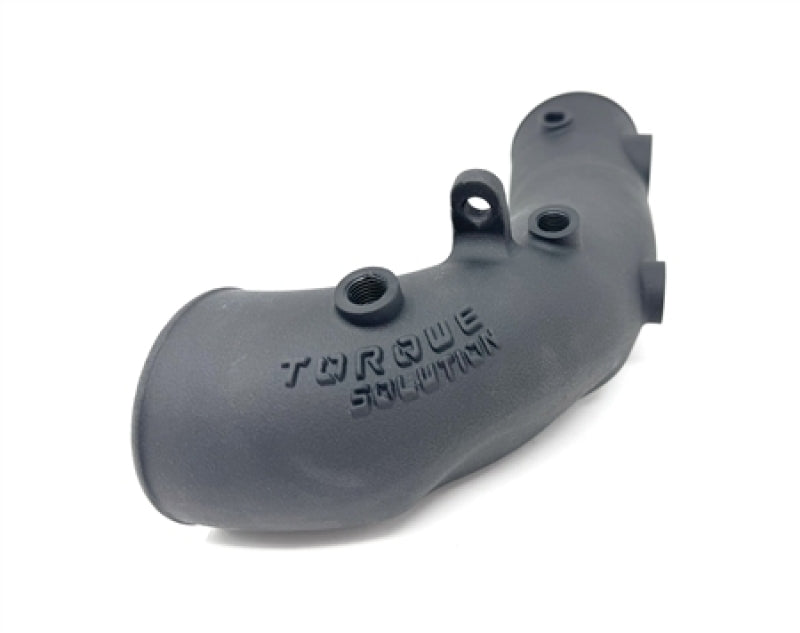

• Black anodized cast-aluminum inlet body
• Four-ply silicone turbo coupler
• Silicone-safe stainless steel clamps
• Recirculation and speed-density connection components
• Manufacturer limited lifetime warranty

Specifications

• Manufacturer part number: TS-SU-881-3
• Turbo connection: 3 inch
• Body material: cast aluminum
• Finish: black anodized

What's Included

• One cast-aluminum HD turbo inlet
• One 3 inch silicone turbo coupler
• One 1/4-inch stainless NPT plug
• 1/4 NPT to 3/8-inch straight and 90-degree barb fittings
• One 3/8 NPT to 5/8-inch 90-degree barb fitting
• Recirculation adapter and speed-density cap
• One 80-100mm wide clamp; one 70-90mm wide clamp; two 70-90mm standard clamps; one 25-40mm standard clamp

Vehicle Fitment

• 2002-2007 Subaru WRX
• 2004-2021 Subaru STI
• EJ engine with STI or similar intake manifold
• Turbo must match the supplied 3 inch coupler

Installation Information

The silicone coupler requires trimming at both ends. Trim gradually in approximately 1/8-inch increments using a clamp as a guide and a sharp blade, exercising care when cutting. Protect the inlet finish with masking tape during trial fitting. Apply PTFE tape to the threaded fittings. Select the recirculation adapter or speed-density cap to match the engine's configured intake system.
