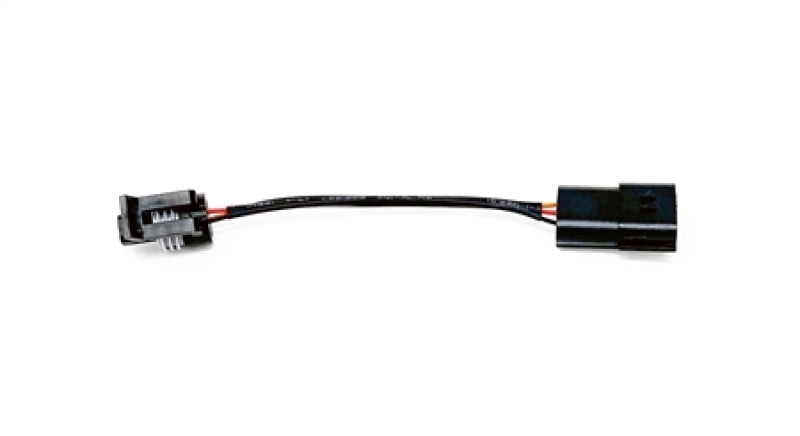

Torque Solution Plug-and-Play MAP Sensor Harness Adapter - 2002-2007 WRX, 2004-2021 STI

Product Overview

Connect a supported aftermarket MAP sensor to the original engine harness without cutting or splicing the factory wiring. The adapter provides the connector conversion; ECU calibration must match the selected sensor.

Features

• Plug-and-play harness connections.
• Waterproof connectors.
• High-temperature heat-shrink protection.

Specifications

• Manufacturer part number: TS-WH-496
• Heat-shrink temperature range: -55°C to 125°C.
• Supported sensor examples: AEM 3.5 bar 30-2130-50, 5 bar 30-2130-75 and 7 bar 30-2130-7.

What's Included

• One MAP-sensor harness adapter.
• MAP sensor and ECU tuning are not included.

Vehicle Fitment

• 2002-2007 Subaru WRX, USDM.
• 2004-2021 Subaru STI.
• 2004-2013 Subaru Forester XT.
• For the compatible original harness connector and supported aftermarket MAP sensor.

Installation Information

Connect the adapter between the original harness and selected sensor, and secure it away from heat and abrasion. A professional ECU tune is required to operate a non-OEM MAP sensor; the wiring adapter alone does not recalibrate sensor scaling.
