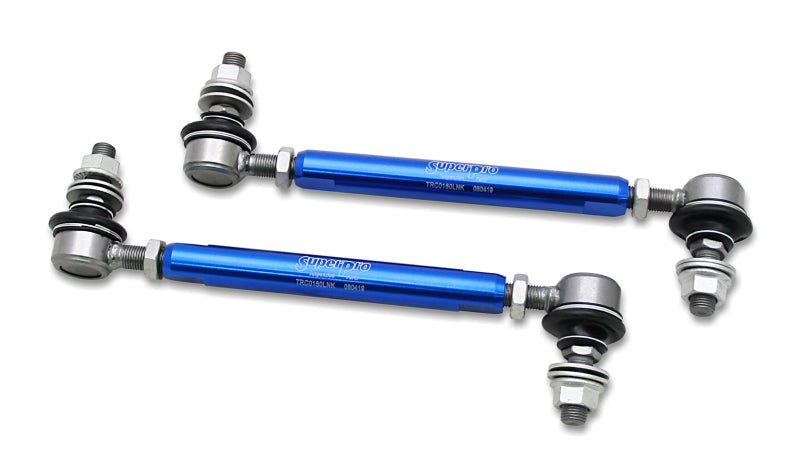

Super Pro Front Adjustable End Link Set (210-260mm, 12mm Studs) - 2013-2020, 2022-2025 BRZ
Product Overview
The Super Pro TRC12160 adjustable end links connect the sway bar to the suspension and allow its installed position to be set for the supported Subaru applications.
Features
- 6060-T5 alloy links designed to resist flex.
- Ball-joint ends and spanner provisions permit on-car length adjustment.
- Adjustable length helps achieve a neutral sway bar position.
Specifications
- Manufacturer part number: TRC12160
- Fitting Position: Front
- Kits Required: 1
- On Car Adjustable: Yes
- Length and studs: 210-260mm, 12mm Studs
What's Included
2 Links
Vehicle Fitment
Verified Subaru applications and trim levels are listed below. Year ranges apply only to the trims shown.
| Model years | Subaru model | Trim / configuration |
|---|---|---|
| 2013-2020, 2022-2025 | BRZ | Limited |
| 2013-2019, 2022-2025 | BRZ | Premium |
| 2015 | BRZ | Series Blue |
| 2016 | BRZ | Series Hyperblue |
| 2017 | BRZ | Series Yellow |
| 2018, 2020 | BRZ | tS |
| 2019 | BRZ | Series Gray |
Installation Information
- Manufacturer estimated installation time: 1 Hour.
- SuperPro does not specify a wheel alignment requirement for this installation.
- Link length is measured between ball-joint stud centres. Manufacturer fitment is based on original link sizing; changed ride height or relocated coilover mounting tabs can require a different link length. The listed length and stud diameter must match the installed suspension.
