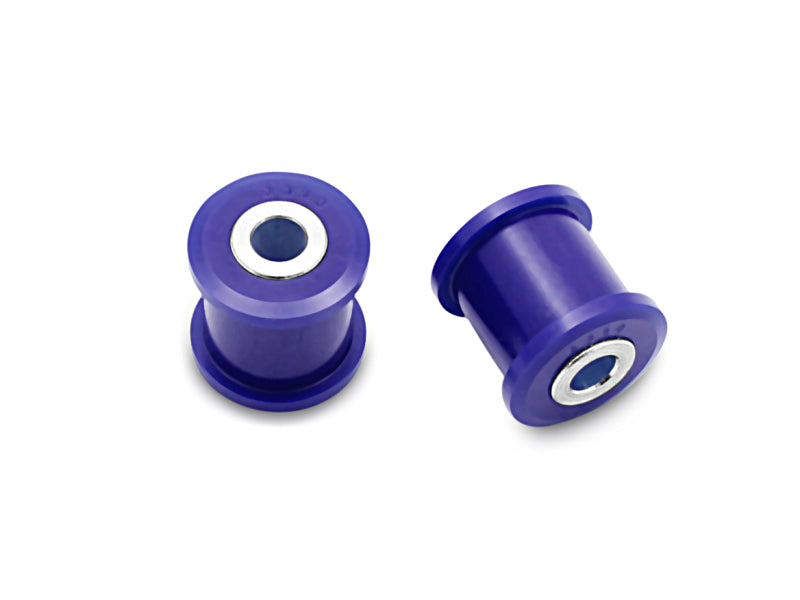

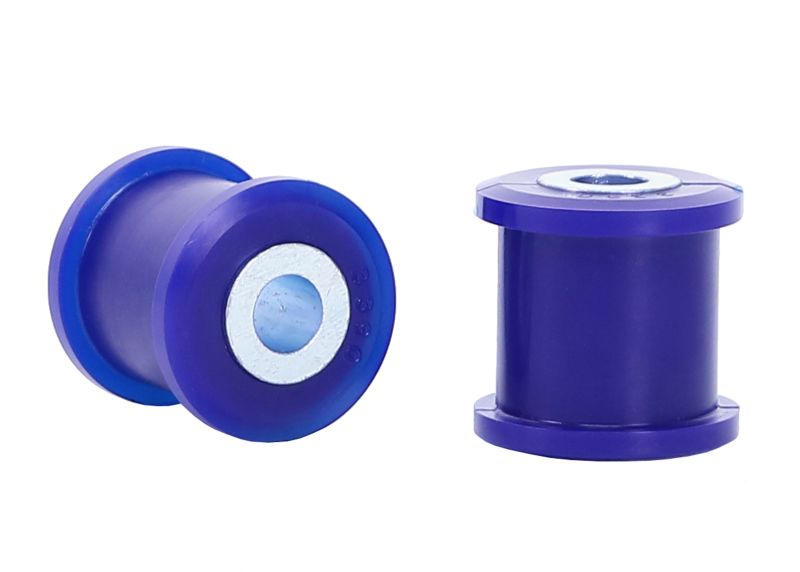

Super Pro Rear Upper Control Arm Inner Bushing Kit - 2000-2009 Legacy, 2000-2009 Outback
Product Overview
The Super Pro SPF3390K rear upper control arm inner bushing kit replaces the bushings at the suspension position identified below.
Features
- Polyurethane construction reduces unwanted deflection at the identified pivot.
- Helps maintain consistent suspension geometry as loads change.
Specifications
- Manufacturer part number: SPF3390K
- Fitting Position: Rear
- Kits Required: 1
- Bushing outer diameter A (mm): 34
- Bushing inner diameter B (mm): 21.8
- Bushing length C (mm): 41
- Flange thickness D (mm): 5.25
- Flange outer diameter E (mm): 41
- Tube OD x ID x length (mm): 22.22x12.3x43
What's Included

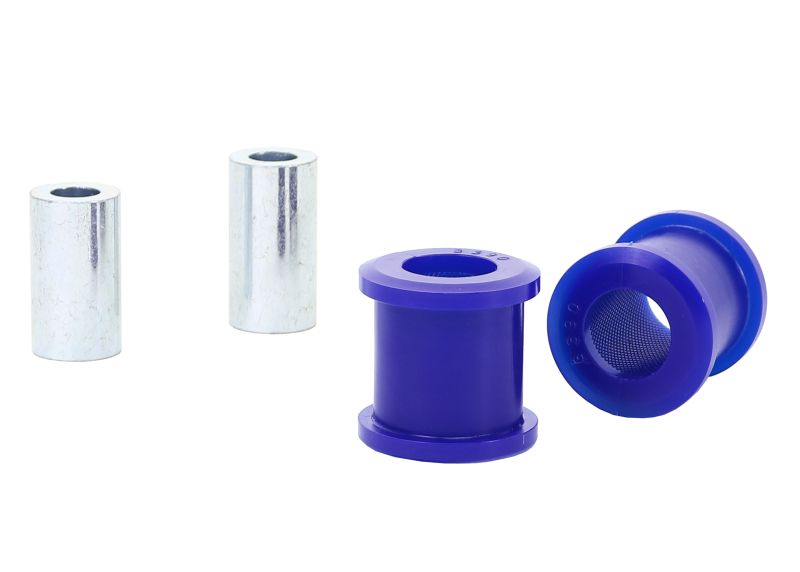

2 Bushings, 2 Tubes
Vehicle Fitment
Verified Subaru applications and trim levels are listed below. Year ranges apply only to the trims shown.
| Model years | Subaru model | Trim / configuration |
|---|---|---|
| 2000 | Legacy | Brighton |
| 2000-2004 | Legacy | L |
| 2000-2006 | Legacy | Gt |
| 2000-2002, 2005, 2007-2009 | Legacy | Gt Limited |
| 2003 | Legacy | L Se |
| 2004 | Legacy | L 35Th Anniversary |
| 2005 | Legacy | I, Limited |
| 2006-2009 | Legacy | 2.5I, Gt Spec B |
| 2007-2009 | Legacy | 2.5I Limited, 2.5I Special Edition |
| 2008-2009 | Legacy | 3.0 R Limited |
| 2009 | Legacy | 3.0 R |
| 2000-2005 | Outback | Limited |
| 2000-2004, 2008 | Outback | Base |
| 2001-2003 | Outback | Vdc |
| 2001-2004 | Outback | L L Bean |
| 2002-2004 | Outback | H6 |
| 2004 | Outback | H6 35Th Anniversary Edition, H6 Vdc |
| 2005 | Outback | I, Vdc Limited |
| 2005-2006 | Outback | R, XT |
| 2005-2008 | Outback | R L L Bean Edition |
| 2005-2009 | Outback | XT Limited |
| 2006 | Outback | R Vdc Limited |
| 2006-2009 | Outback | 2.5I, 2.5I Limited |
| 2007 | Outback | 2.5I Basic |
| 2008 | Outback | 2.5I L L Bean Edition, 2.5I Limited L L Bean Edition |
| 2009 | Outback | 2.5I Special Edition, 3.0 R Limited |
Installation Information
- Manufacturer estimated installation time: 3 Hours.
- Installation by a suspension specialist is recommended.
- Rear Wheel Alignment required after installation.
