Super Pro Front Control Arm Lower-Inner Rear Bushing Kit - Double Offset - 1998-2008 Forester, 1994-2004 Legacy, 2000-2004 Outback
Product Overview
The Super Pro SPF1388AK front control arm lower-inner rear bushing kit - double offset replaces the bushings at the suspension position identified below.
Features
- Polyurethane construction reduces unwanted deflection at the identified pivot.
- Helps maintain consistent suspension geometry as loads change.
- Double-offset design provides caster correction; SuperPro specifies +/-0.5 degree in its part-number catalog.
Specifications
- Manufacturer part number: SPF1388AK
- Fitting Position: Front
- Kits Required: 1
- Bushing outer diameter A (mm): 56.15
- Bushing inner diameter B (mm): 29.6
- Bushing length C (mm): 51.3
- Flange thickness D (mm): 4.5
- Flange outer diameter E (mm): 45
- Tube OD x ID x length (mm): 30x25-20.3x51
What's Included

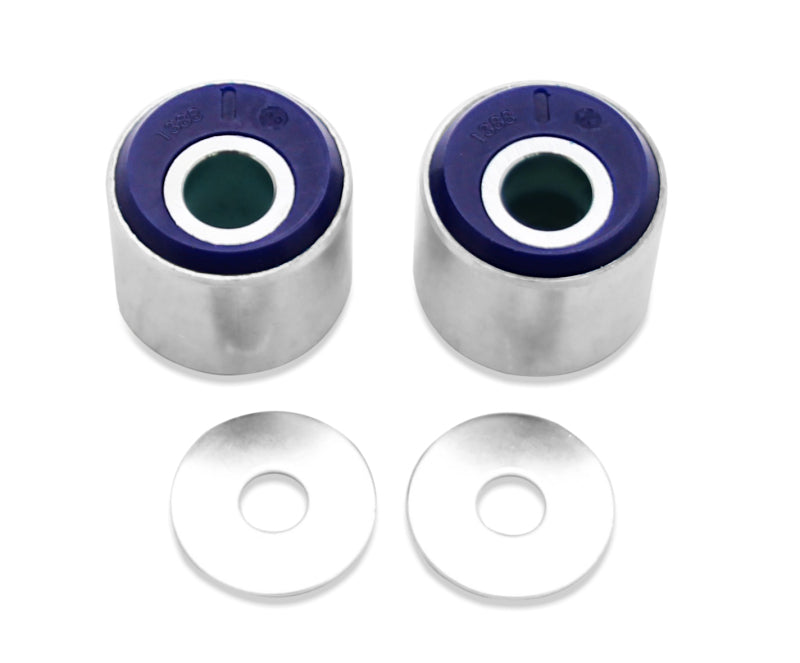

2 sleeves, 2 washers, 2 steel tubes and 2 polyurethane bushings.
Vehicle Fitment
Verified Subaru applications and trim levels are listed below. Year ranges apply only to the trims shown.
| Model years | Subaru model | Trim / configuration |
|---|---|---|
| 1998-2002 | Forester | Base, L, S |
| 2003-2005 | Forester | Xs |
| 2003-2008 | Forester | X |
| 2004-2005 | Forester | XT |
| 2005 | Forester | Xs L L Bean Edition, XT Premium |
| 2006-2008 | Forester | X L L Bean Edition, XT Limited |
| 2008 | Forester | Sports 2.5 X, Sports 2.5 XT |
| 1994 | Legacy | Alpine Sport, Outdoor, Sport, Sun Sport, Touring |
| 1994-1996 | Legacy | Ls |
| 1994-1997 | Legacy | Lsi |
| 1994-2004 | Legacy | L |
| 1994, 1996-2004 | Legacy | Gt |
| 1995 | Legacy | Base |
| 1995-1998 | Legacy | Postal |
| 1995-1999 | Legacy | Outback |
| 1995-2000 | Legacy | Brighton |
| 1997, 1999 | Legacy | Outback Limited |
| 1998, 2000-2002 | Legacy | Gt Limited |
| 1999 | Legacy | L 30Th Anniversary, Limited 30Th Anniversary, Sus 30Th Anniversary |
| 2003 | Legacy | L Se |
| 2004 | Legacy | L 35Th Anniversary |
| 2000-2004 | Outback | Base, Limited |
| 2001-2003 | Outback | Vdc |
| 2001-2004 | Outback | L L Bean |
| 2002-2004 | Outback | H6 |
| 2004 | Outback | H6 35Th Anniversary Edition, H6 Vdc |
Installation Information
- Manufacturer estimated installation time: 3 Hours.
- Installation by a suspension specialist is recommended.
- Front Wheel Alignment required after installation.
