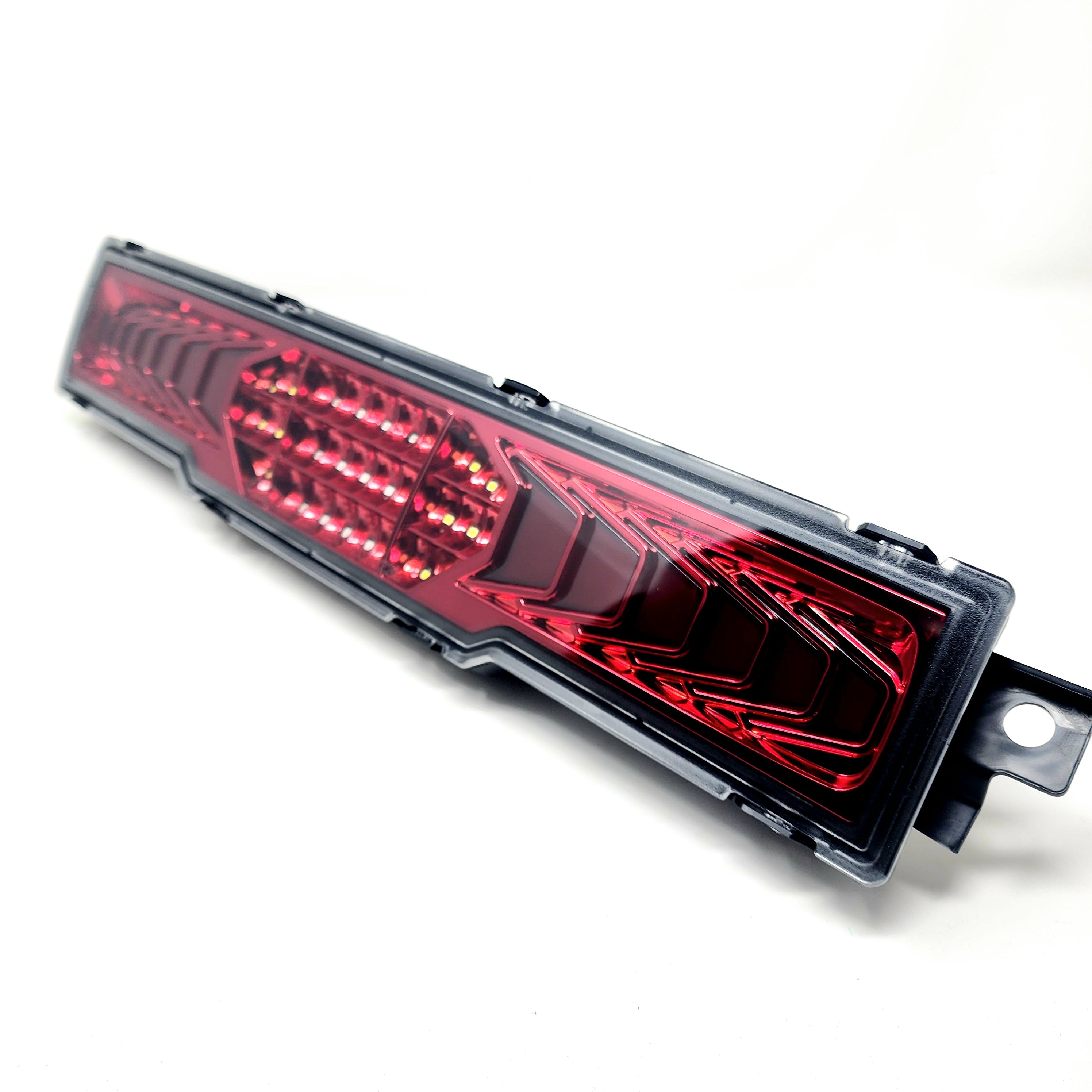

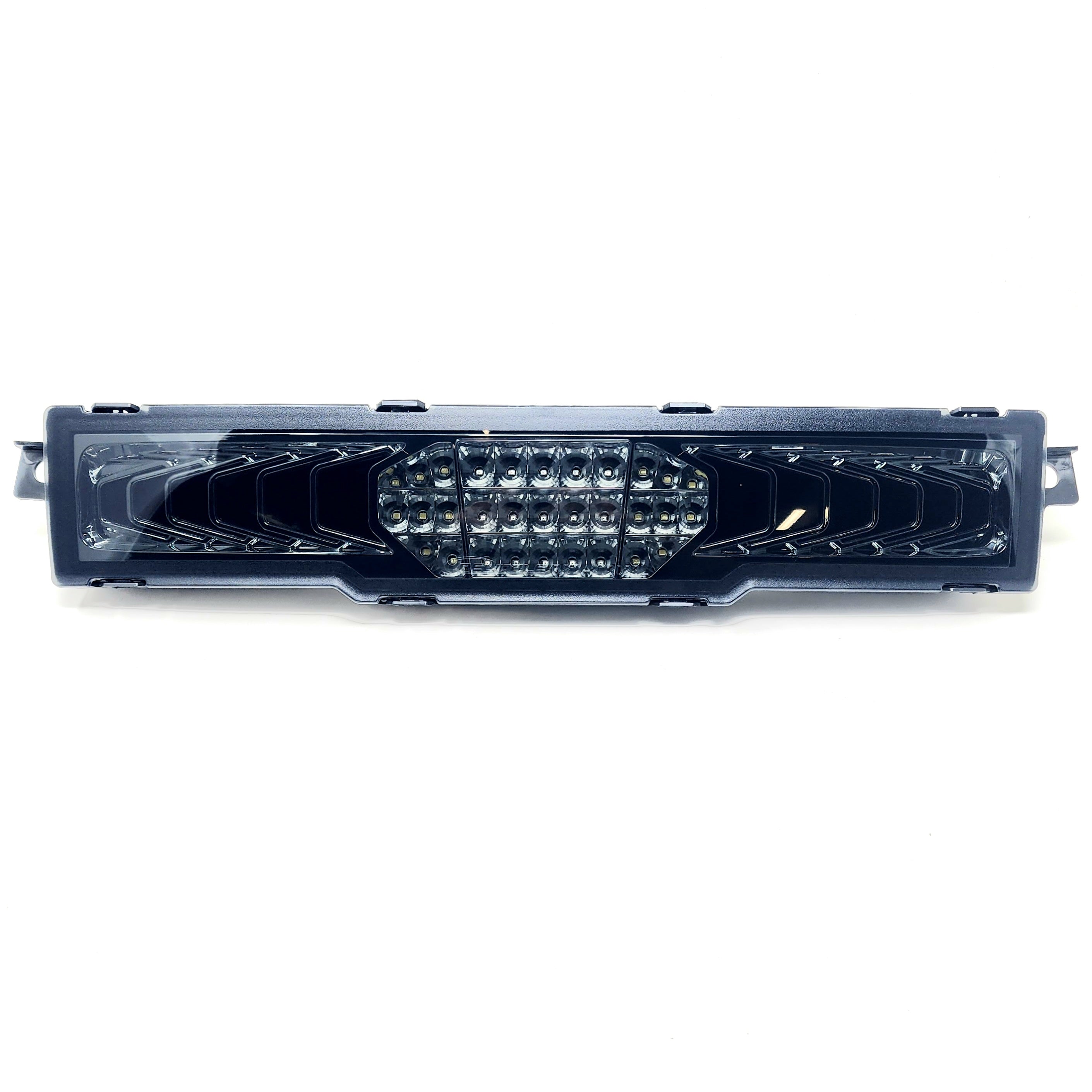

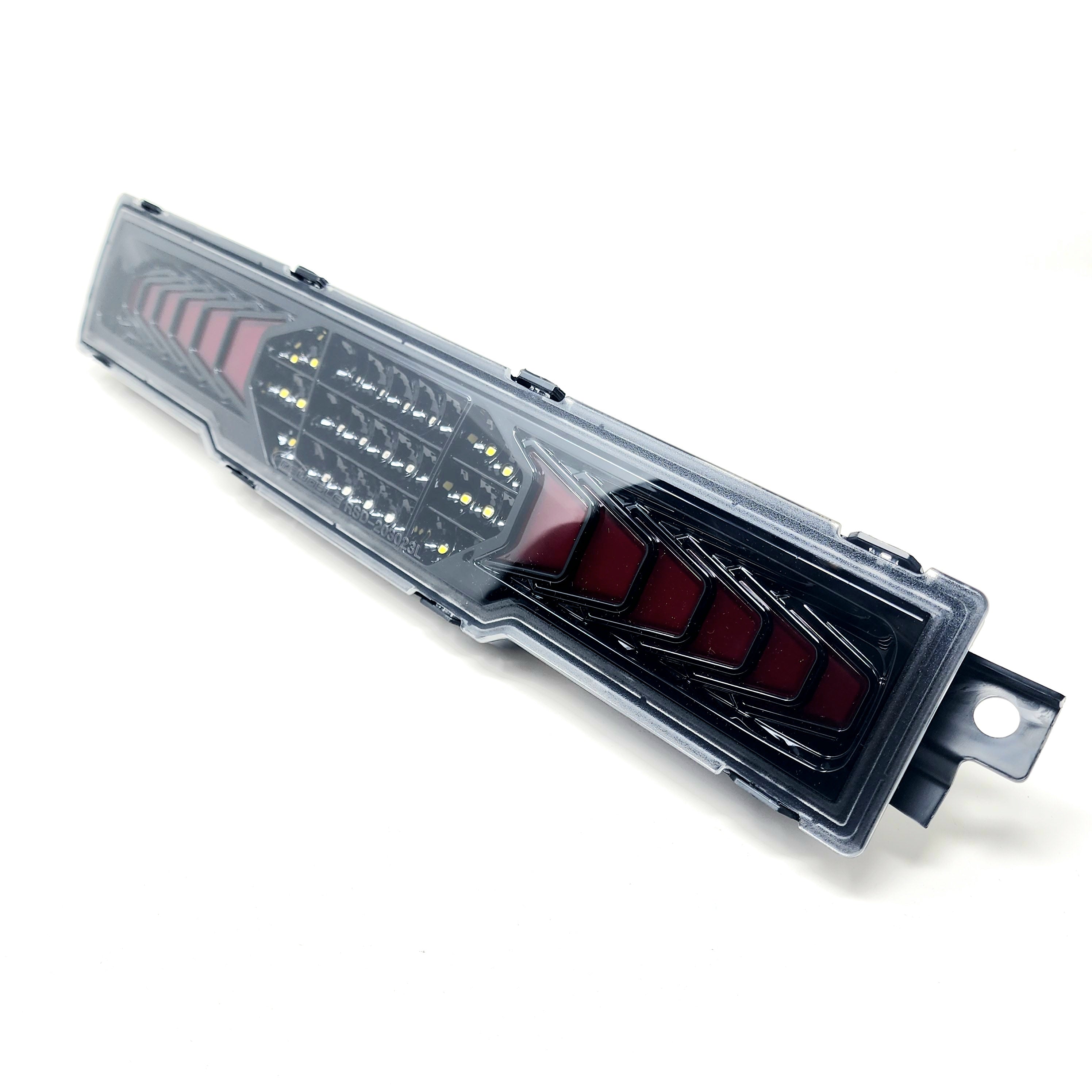

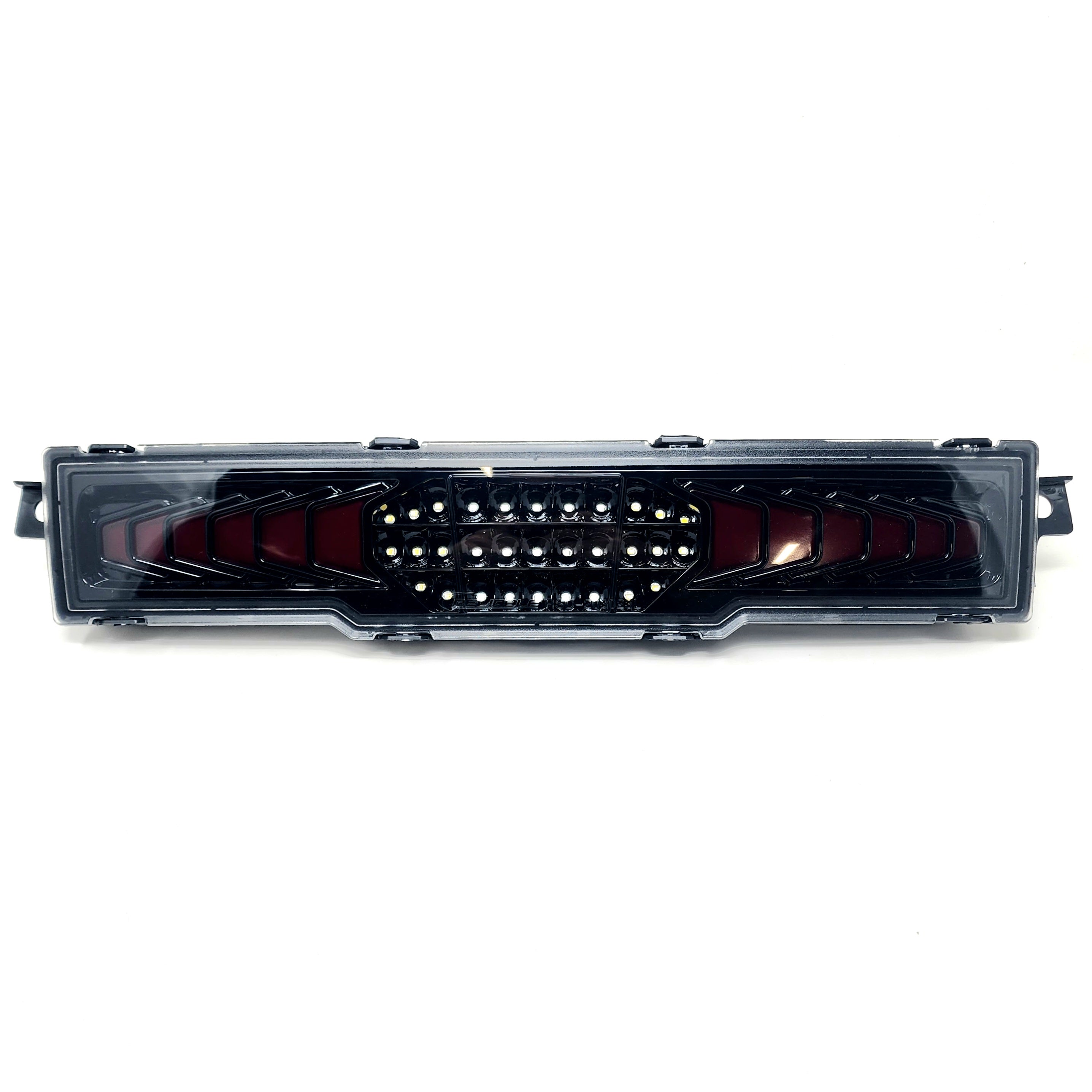

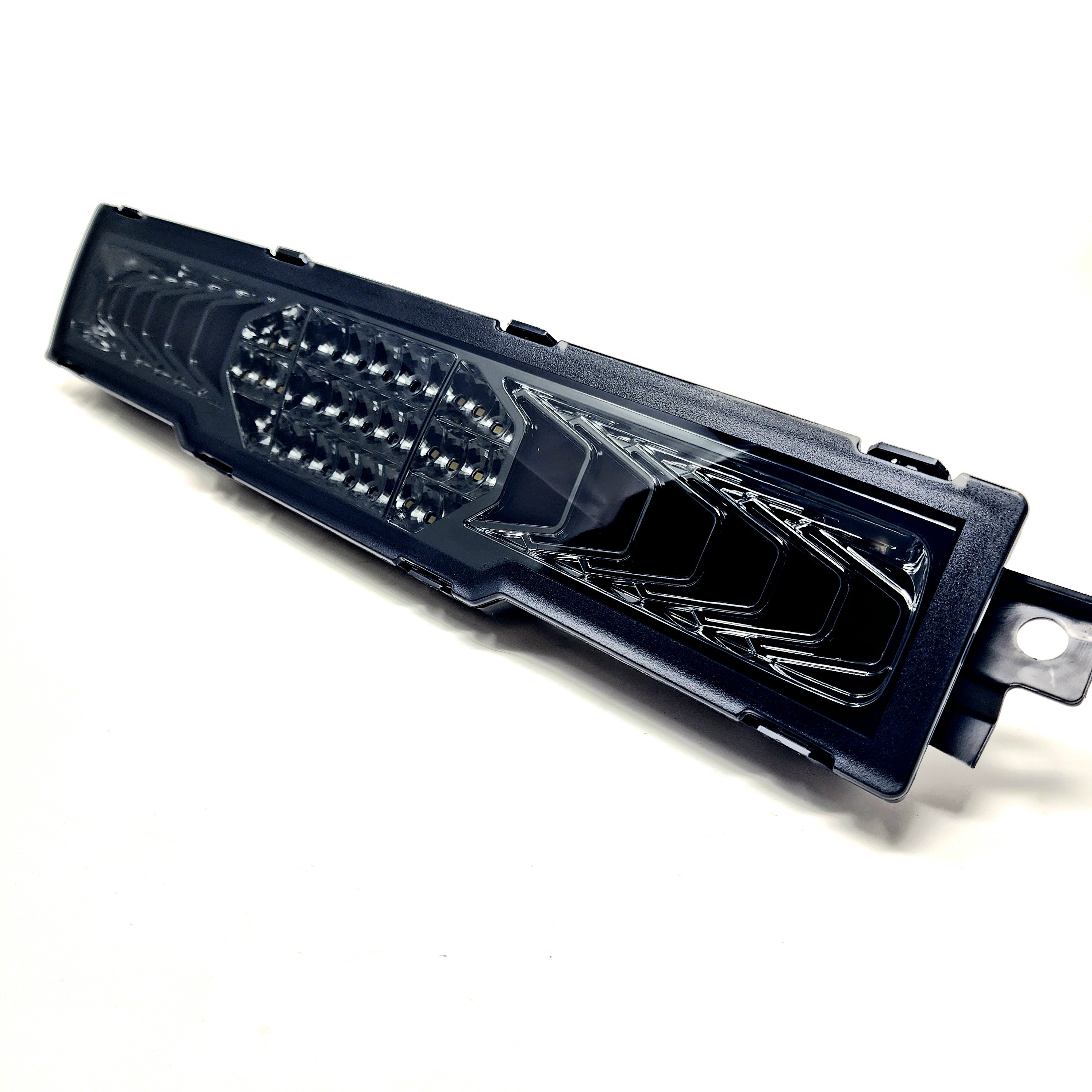

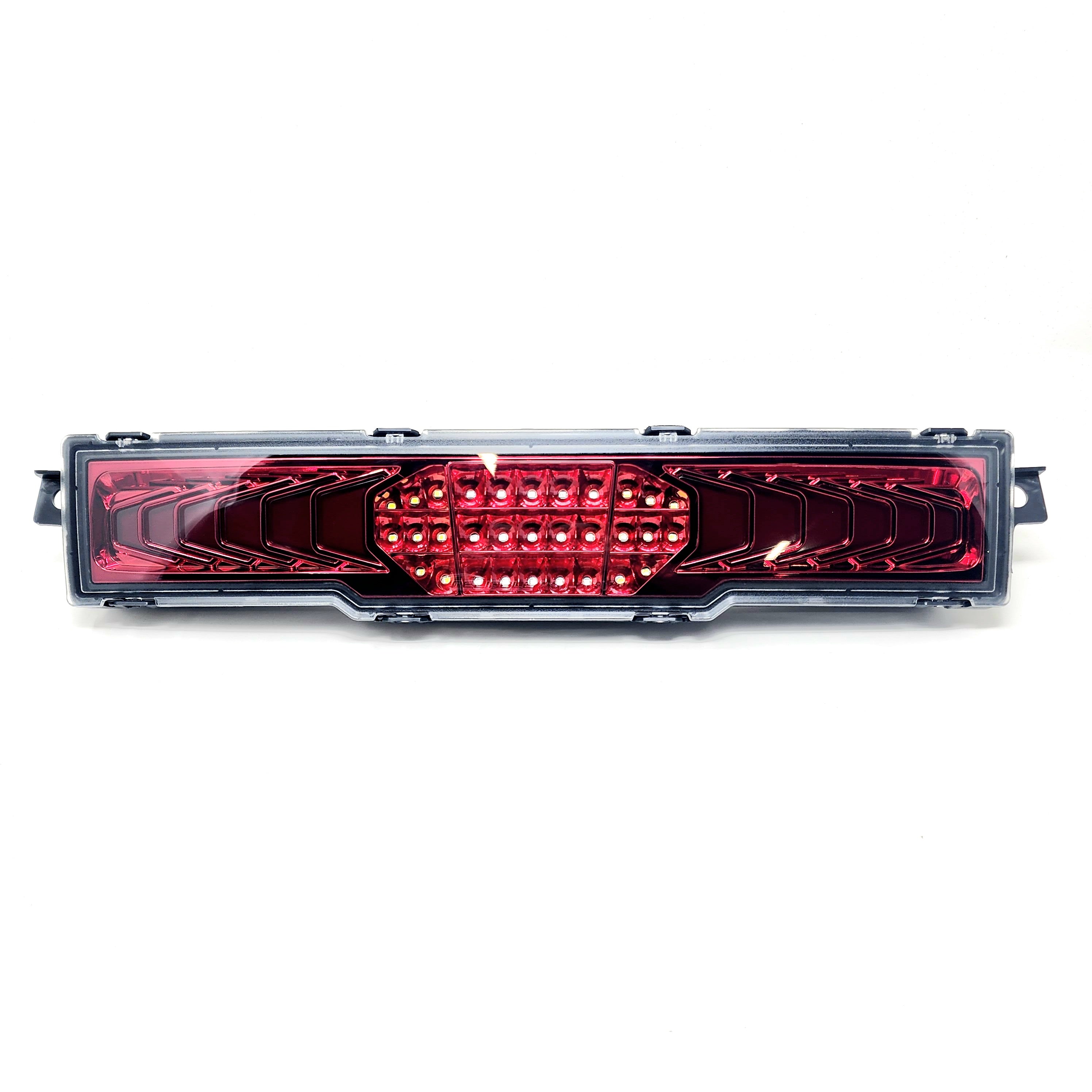

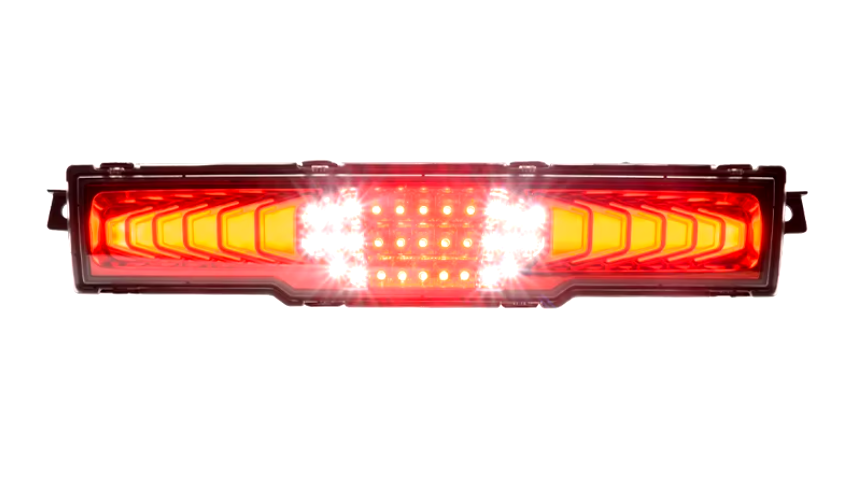

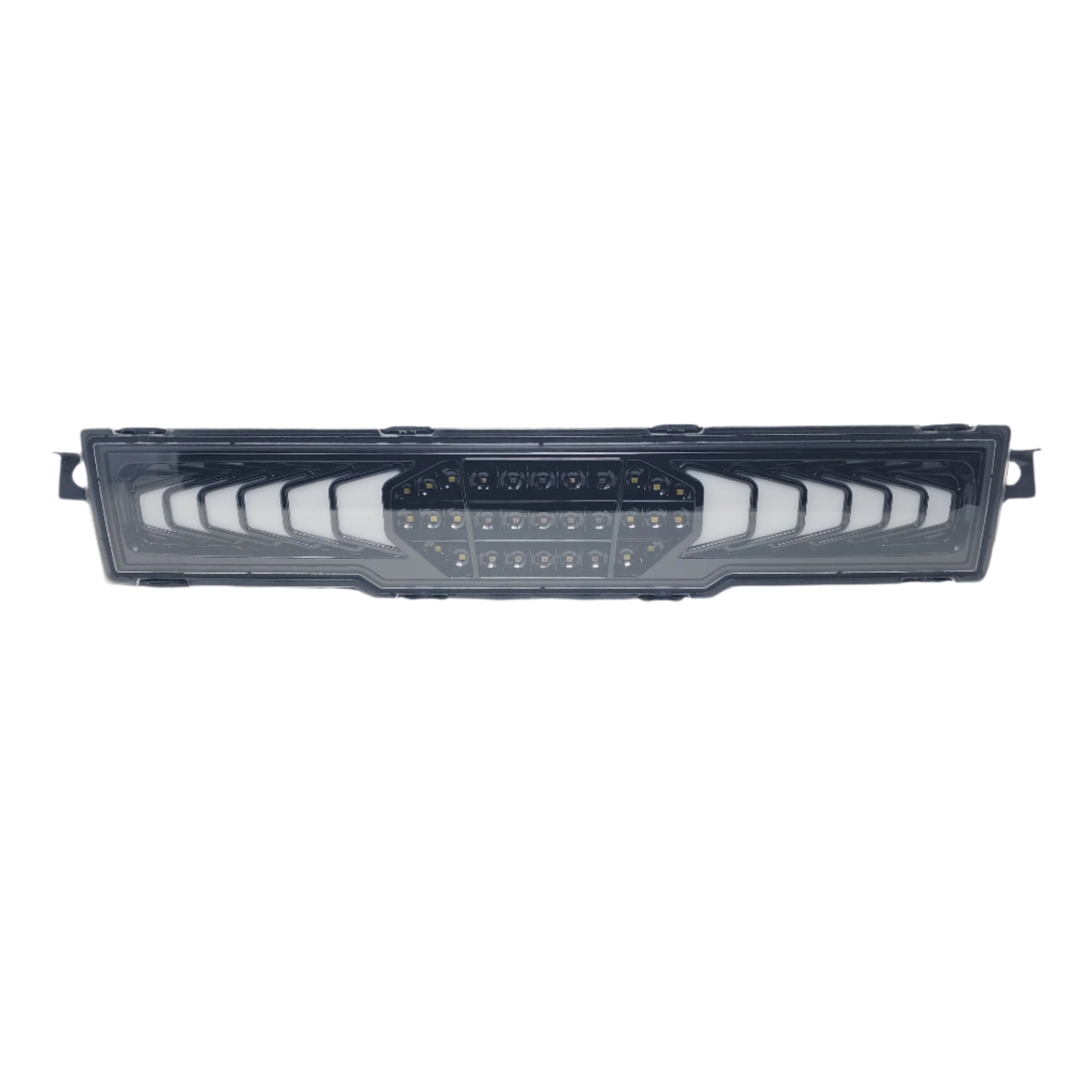

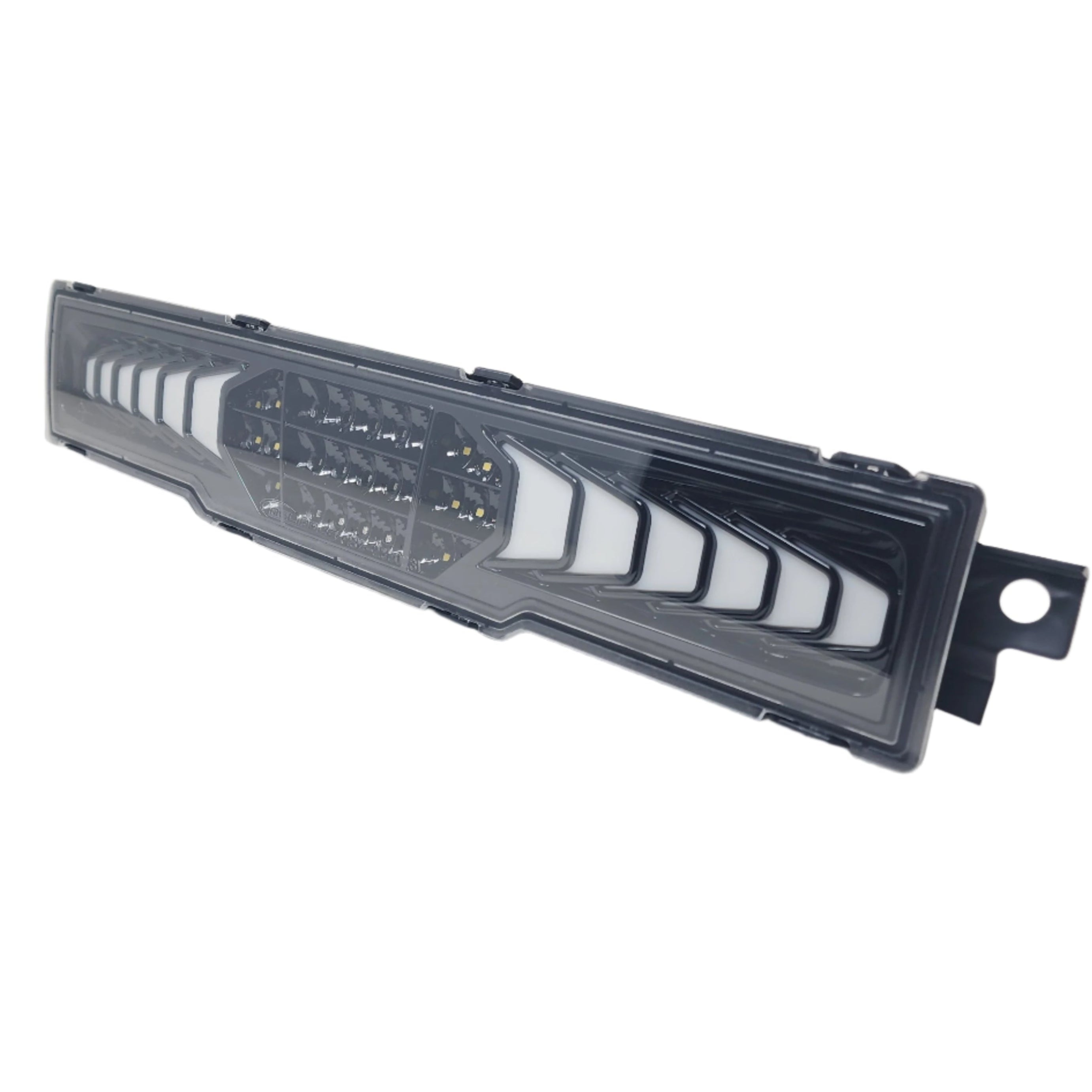

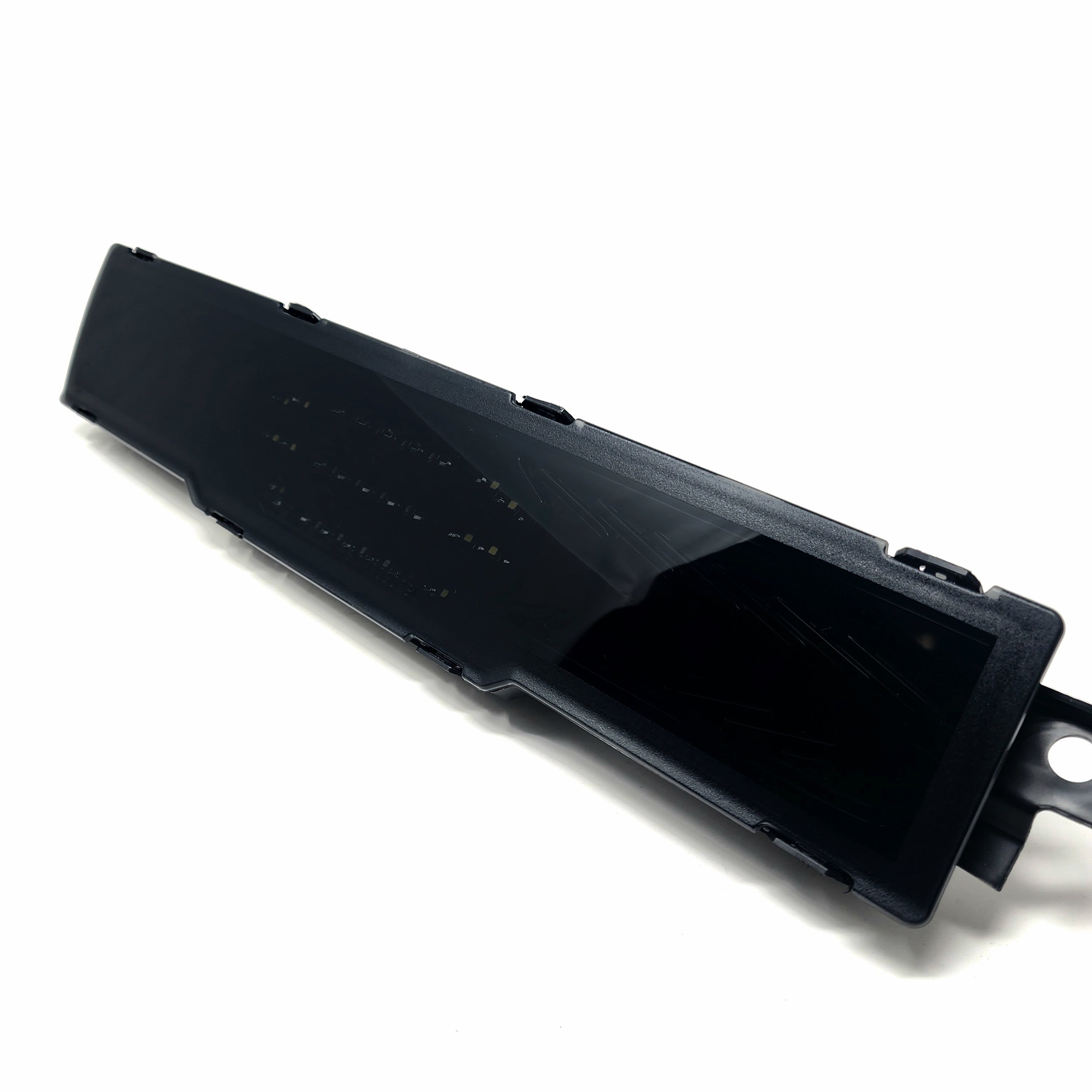

SSC CORE 4TH BRAKE LIGHT - 2022+ BRZ/GR86 , 2022+ GR86

Enhance Your BRZ with the Ultimate 4th Brake Light

Upgrade your 2022+ BRZ with our state-of-the-art 4th brake light, designed for effortless installation and enhanced safety. This premium accessory is 100% plug-and-play, featuring all necessary wiring for a seamless setup without any modifications.

Key Features:

• Plug-and-Play Installation: No cutting or splicing required. Simply plug into the factory tail lights using the included wiring harness for quick and easy installation.

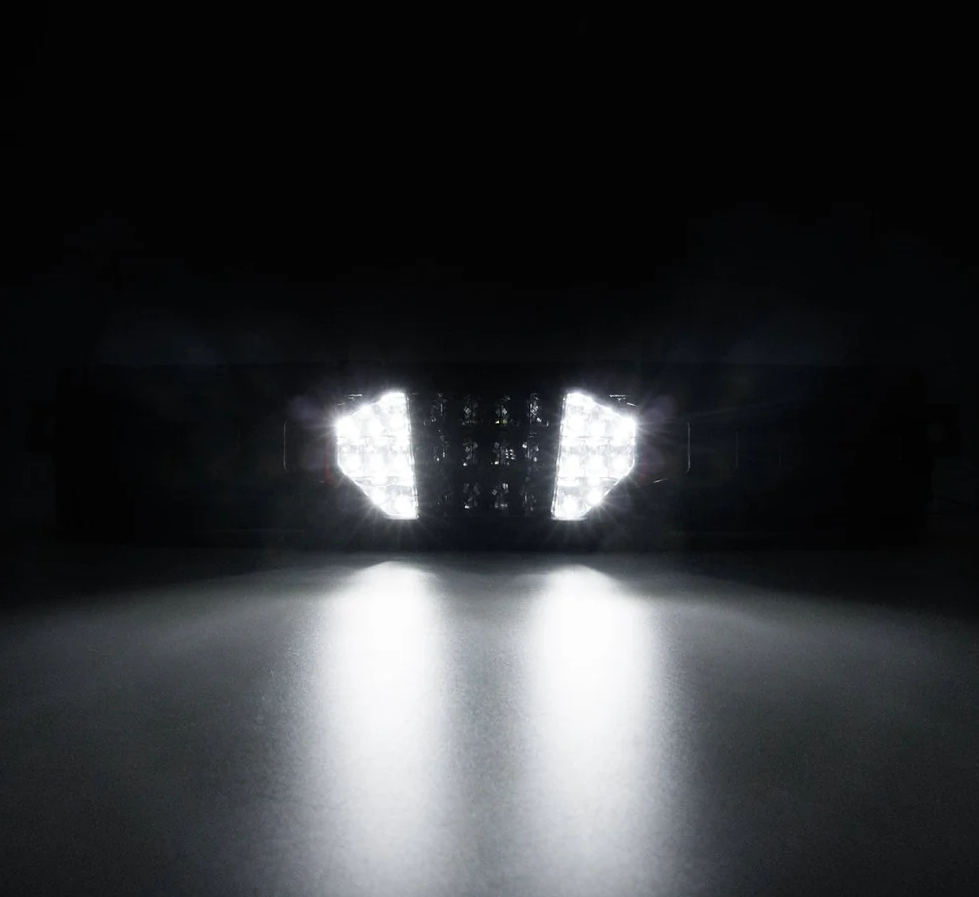

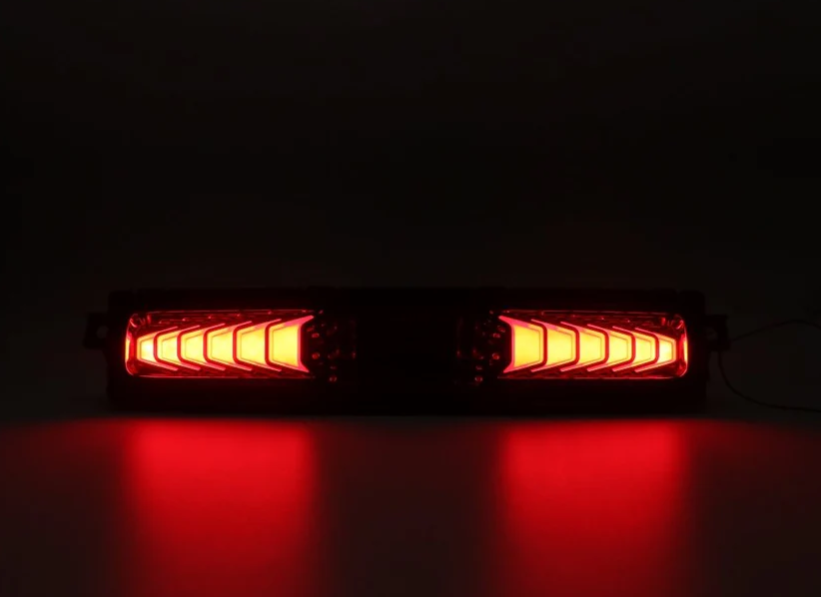

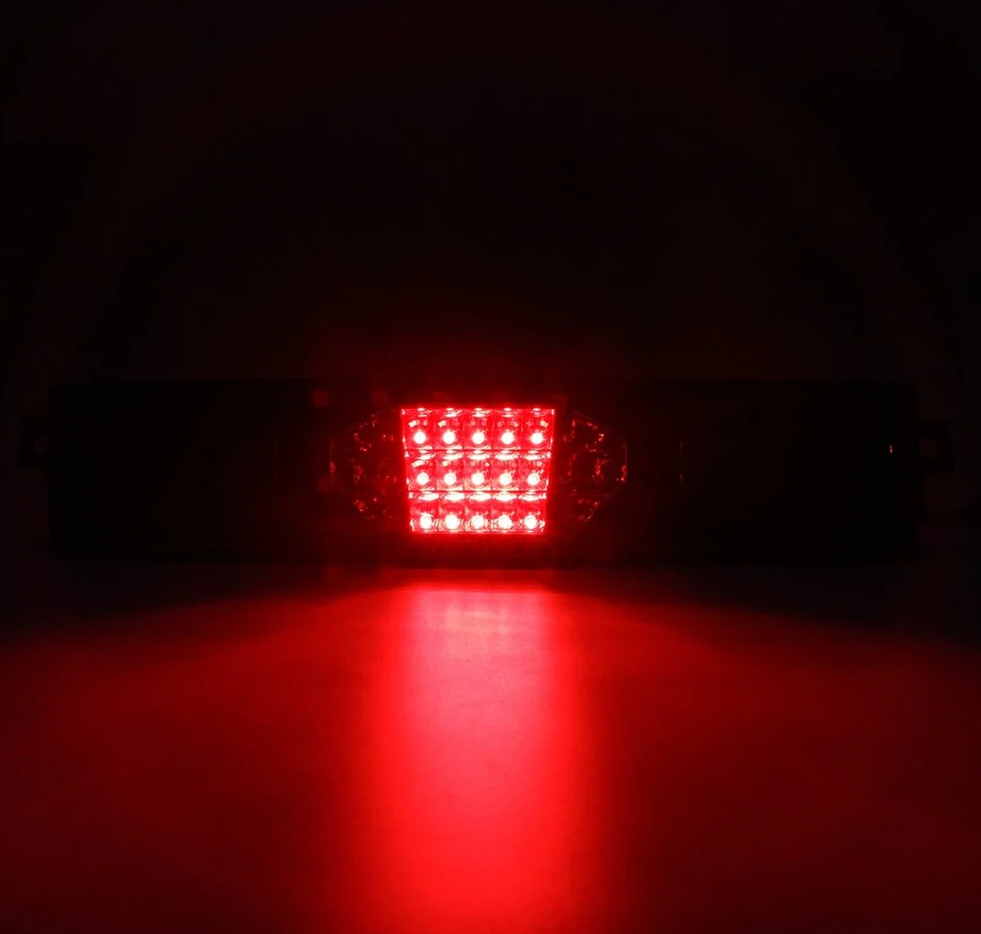

• Dual Functionality: Replaces the factory reverse light with an additional brake light and running light, improving visibility and adding a stylish touch to your vehicle.

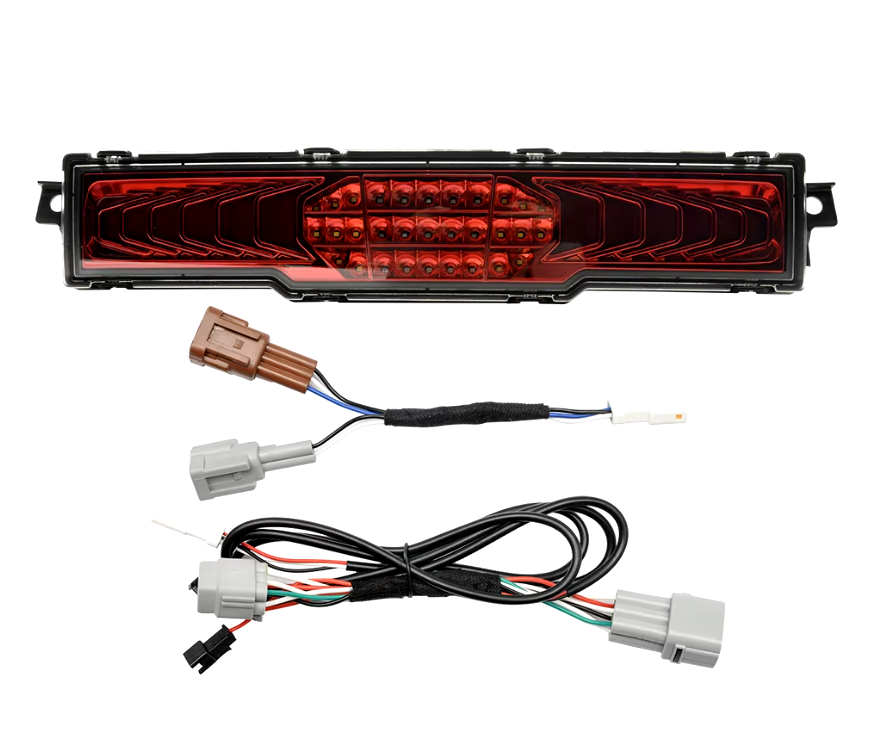

• Complete Kit: Comes with everything you need for installation.
• Enhanced Safety: Increases your vehicle's visibility to other drivers, providing an extra layer of safety during braking.

Perfect for BRZ enthusiasts looking to combine functionality with a sleek, modern look. Upgrade your ride today and experience the difference with our top-quality 4th brake light.

INSTALLATION:

CLICK HERE FOR A INSTALLATION WIRING DIAGRAM

Reverse Light Assembly Removal

1. Detach Trim Clips
   Start by removing the three pop clips located beneath the rear bumper that are securing the trim piece around the reverse light assembly.

2. Remove Trim Piece
   Once the clips are taken out, gently pull off the trim piece surrounding the reverse light assembly from the bumper.

3. Unfasten Bolts
   You will now see two 10mm bolts holding the reverse light assembly in position. Unscrew these bolts to release the assembly.

4. Disconnect Assembly
   After removing the bolts, pull the assembly out and disconnect it from the original wiring harness.

Tail Light Removal

1. Remove Inner Trim
   To fit the new harness for the 4th brake light, you’ll need to access one of the tail lights. Use a plastic pry tool to remove the trim piece on the inner side of the tail light by prying it away from the gap between the trim and the rubber trunk gasket.

2. Unscrew Bolts
   This will expose two 10mm bolts. Remove these, as well as the 10mm bolt located on the upper part of the tail light.

3. Take Out Tail Light
   Carefully pull the tail light straight out from the vehicle and disconnect it.

4. Connect New Harness
   Attach the provided wiring harness to the original harness and connect the two white wires together.

5. Route Wiring
   Run the rest of the wiring down to the reverse light area near the bottom of the bumper, then reinstall the tail light.

4th Brake Light Installation

1. Connect Short Harness
   Use the shorter harness included in your kit. Connect the grey connector to the OEM reverse light harness, and then connect it to the 4th brake light.

2. Attach Tail Light Harness
   Also connect the harness from the tail light to the 4th brake light.

3. Install 4th Brake Light
   Slide the 4th brake light into position and secure it with the two 10mm bolts.

4. Reassemble and Test
   Reattach the trim cover and pop clips. Test to ensure everything is functioning correctly.
