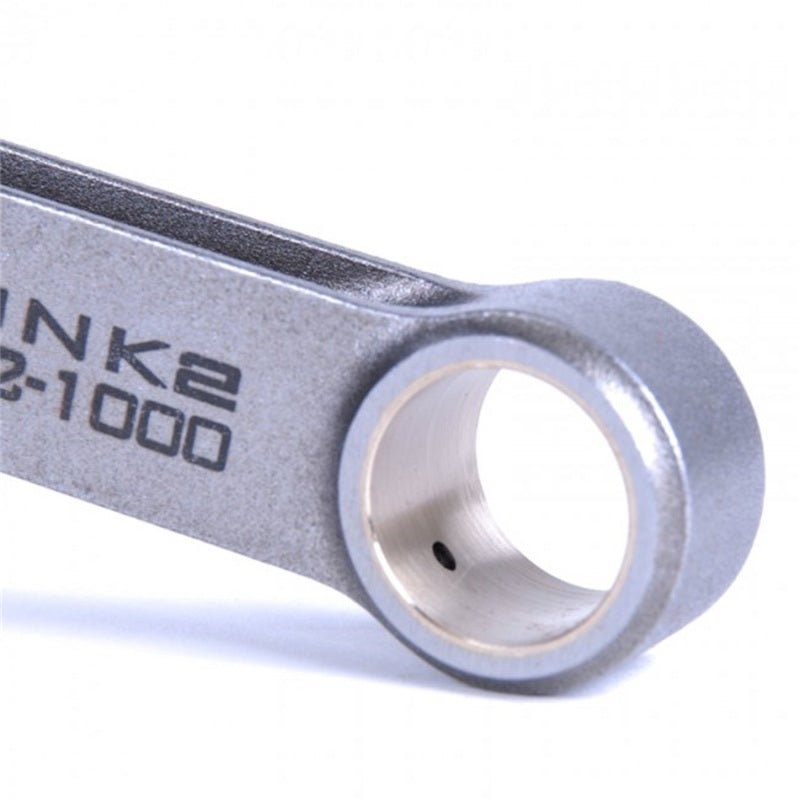

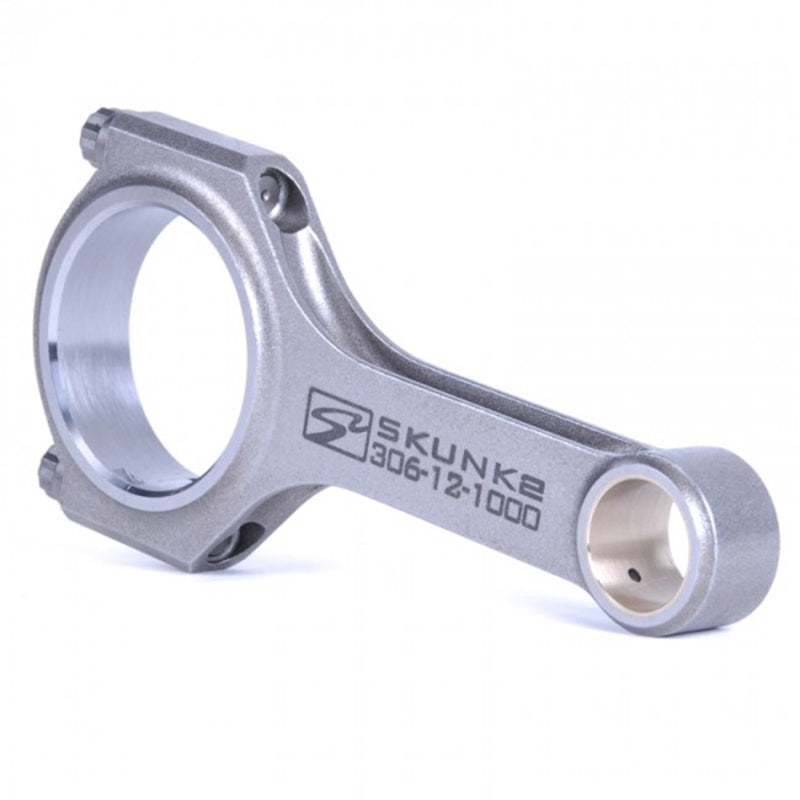

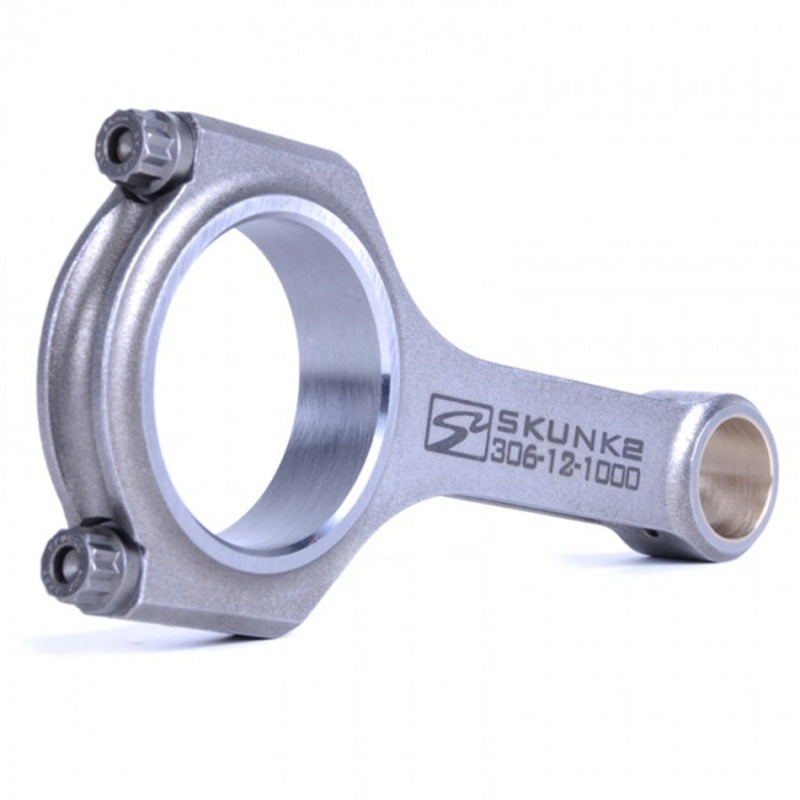

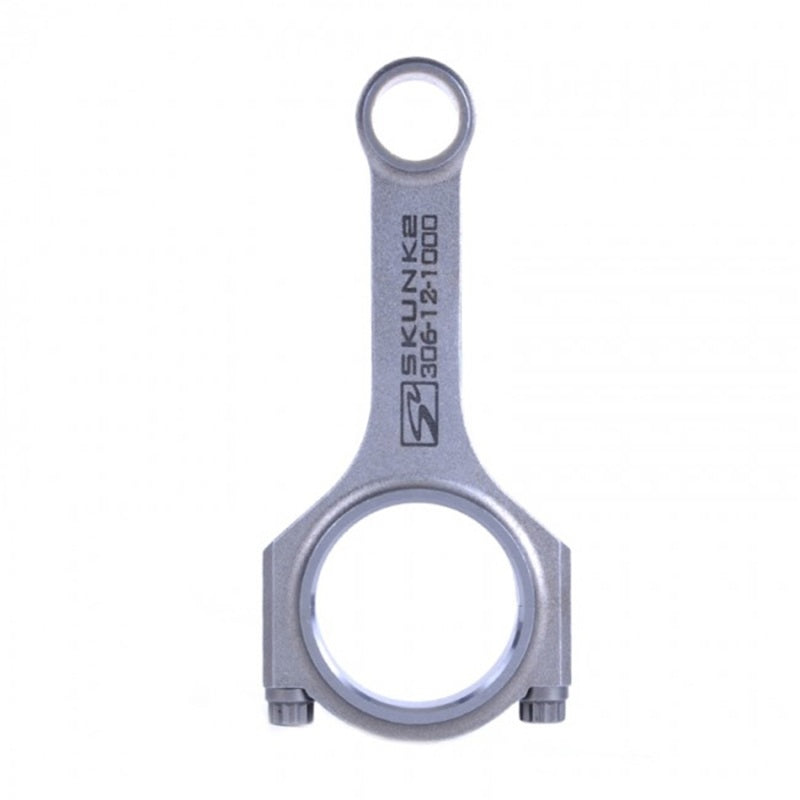

Skunk2 Alpha Series Connecting Rods - EJ MODELS

Skunk2 is proud to introduce its all-new Alpha Series Connecting Rods for the Subaru EJ25 engine.

Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications.

Skunk2's engineers spent nearly three years developing and testing its straight H-beam rod design. The results are one of the strongest beam configurations available, capable of handling more than 900 hp. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2's straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary.

Features:

• Length: 130.59mm
• Weight : 535 Grams

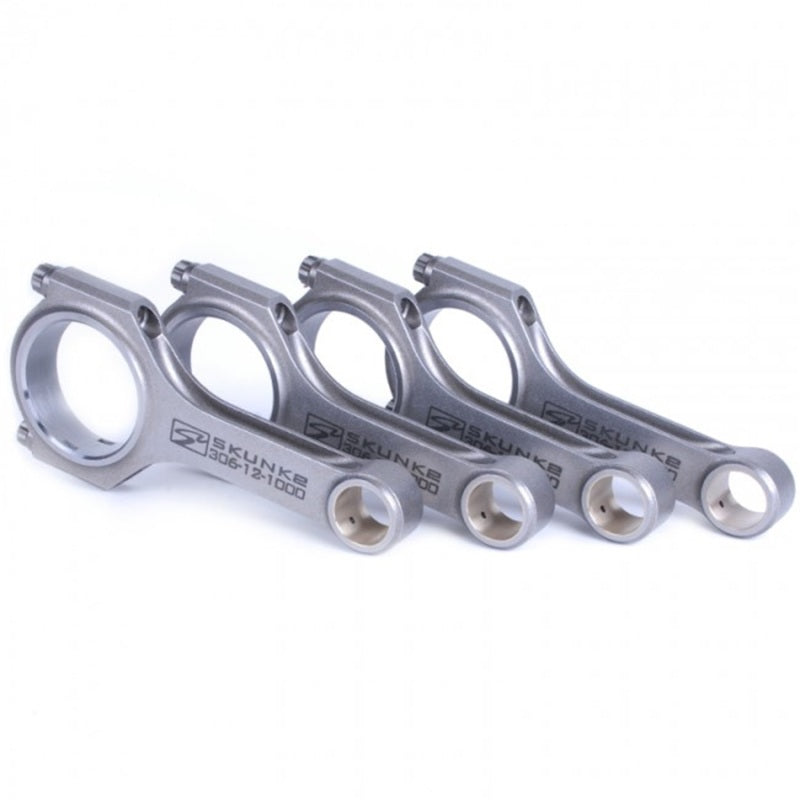

• Set of 4
• Precision Machined

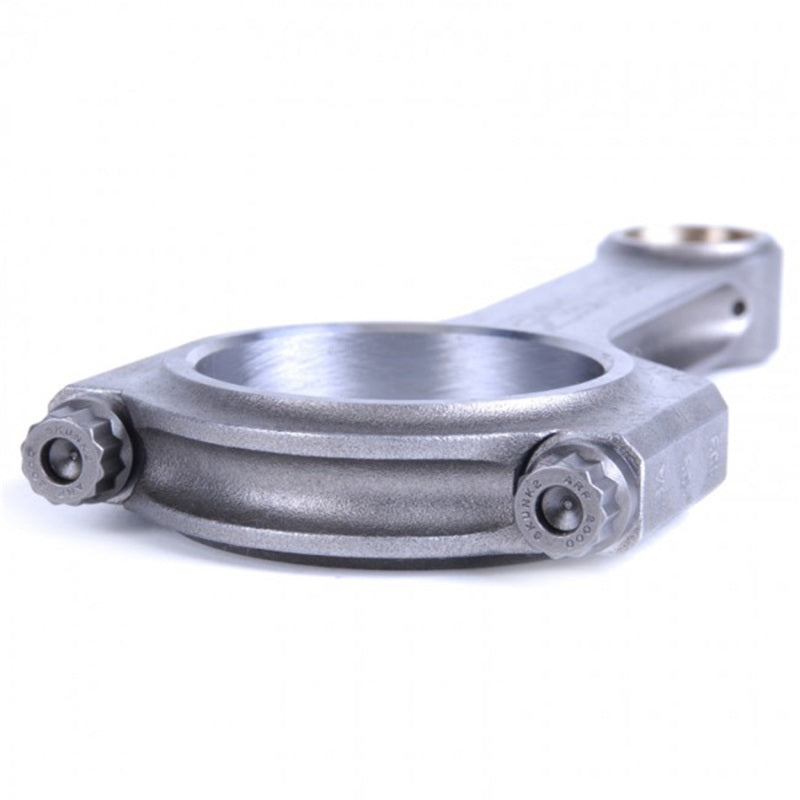

• 3/8-Inch ARP2000/Skunk2 bolts
• Shot-peened for reduced fatigue
• Bronze wrist pin bushings
• Laser-etched Skunk2 logo for authenticity
• Fatter, H-beam design without drastic weight increase
• Pin end compatible with most aftermarket pistons without machining
• Not compatible with OEM style pistons.
• Dual-pin oil passages for increased lubrication and strength
• Balanced +/- 1 gram
• Magna-flux inspected
• Heat-treated
• FEA analyzed

Fitment:

• 2006 - 2014 Subaru Impreza WRX (2.5 EJ25)
• 2005 - 2012 Subaru Legacy (2.5 GT EJ25)
• 2005 - 2009 Subaru Outback (2.5 GT EJ25)
• 2004 - 2013 Subaru Forester (2.5 EJ25)
• 2004 - 2006 Subaru Baja (2.5 EJ25)
