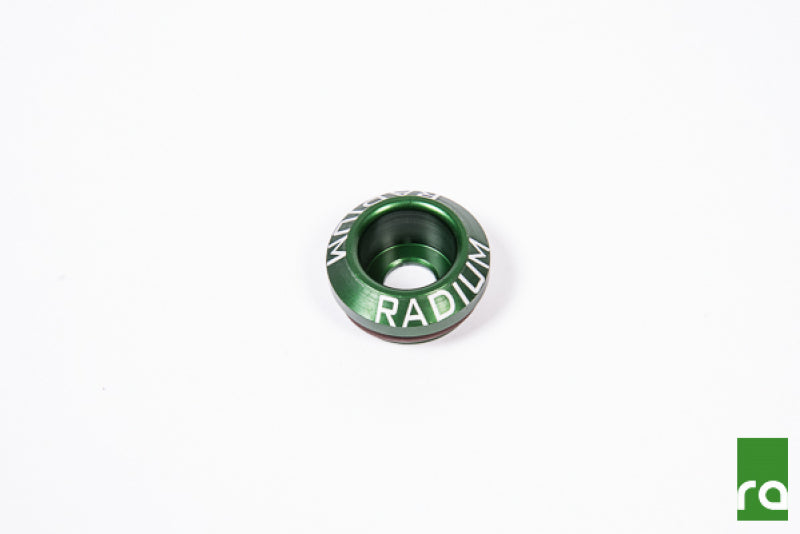

Radium Engineering Subaru Injector Seat 22mm

OVERVIEW

These are the same machined aluminum injector seats used in many Radium Engineering fuel rails. They are required when converting the OEM fuel injectors to aftermarket fuel injectors. They simply press-fit into the intake manifold/TGV injector ports with no modifications required. Using the included FKM O-ring, they seal into the machined injector counterbore preventing vacuum (or boost) leaks. The injector seat bores are designed to be used with a common 14mm lower injector O-ring.

NOTE: Because they are compatible with different cylinder engines, the injector seats are sold individually (not a set). Change quantity accordingly.

All injector seat styles use the following lower injector O-ring measurements shown. Measure before ordering.

	20-0171 Subaru Injector Seat 22mm (THIS LISTING) The same injector seat included in the Radium 20-0568-02 Top Feed conversion Rails for certain Subaru EJ engines. See the list below for applicable vehicles. COMPATIBILITY 04-07 WRX STi (USDM) 04-05 Forester XT 05-06 Legacy GT 04-06 Legacy GT (JDM) 05-06 Outback XT Always lubricate o-rings with o-ring lube, petroleum jelly, or oil before installation.
	20-0305 Subaru Injector Seat 26mm This injector seat is used in 3 applications of fuel rails. You will find this in parts 20-0569-02 and 20-0579-02 for the Subaru EJ engine as well as in the 20-0763-02 for the EG33. See the list below for applicable vehicles. COMPATIBILITY 97-00 WRX (JDM) 97-00 WRX (EDM) 98-01 Forester (JDM) 92-99 Legacy GT (JDM) 98 Impreza 92-96 WRX (JDM) 92-96 WRX (EDM) 94-96 WRX STi (JDM) 98 Forester 2.5L 94-95 Legacy 2.5L 96-99 Legacy GT 96-99 Outback 2.5L 92-97 SVX Always lubricate o-rings with o-ring lube, petroleum jelly, or oil before installation.
	20-0816 Subaru Air Assist Injector Seat This injector seat is used the Radium 20-0764-02 fuel rail for the Phase 1 EZ30 engine. See the list below for applicable vehicles. COMPATIBILITY 00-04 Legacy H6 00-04 Outback H6 Always lubricate o-rings with o-ring lube, petroleum jelly, or oil before installation.
