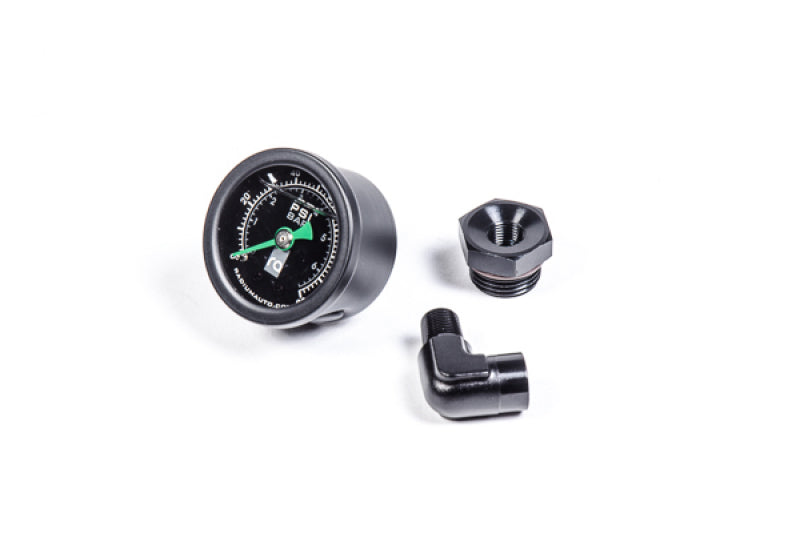

Radium Engineering Fuel Pressure Gauge w/ 8AN ORB 90 Deg Adapter for 08-21 STI FPR

Radium Engineering high-accuracy fuel pressure gauge is the perfect addition to finish that desired look for your engine bay and is suitable for all universal fueling applications and supports all fuel types.



- Lens Material: Acrylic lens with a silicone filled dial

- Readings: 0 to 100psi (0 to 6.9 BAR) with +/- 2% accuracy.

- Fluid Filled: Silicone fluid prevents the needle from vibrating for easy pressure readings. The internal bubble is normal.

- Body Material: Rugged stainless 1-5/8" OD steel case (1-3/4" OD bezel)

- Fitting Type: Nickel plated male 1/8" NPT fitting

- Color: Black bezel and housing



- (1x) Gauge

- (1x) 90 Degree 1/8" NPT fitting (Female to Male)

- (1x) 1/8" NPT to -8AN ORB adapter fitting



- Overpressurizing can permanently misalign the needle calibration.
- PTFE thread sealant paste should always be used on NPT threads.
