PERRIN FRONT MOUNT INTERCOOLER KIT - Red Tubes & Silver Core - 2022+ WRX
OVERVIEW
PERRIN Front Mount Intercooler Kits are ideal for those who want to get the most out of their turbocharged Subaru. Add power and a bold new look all in one with a PERRIN FMIC!
•Intercooler core is 28” long x 9.25” tall x 3.5” deep
•Intercooler core volume is 906.5 cu-in.
•Intercooler core features a powder coat finish
•Features end tanks to disperse hot charge air across the intercooler core
•Kit comes with a CNC machined throttle body adapter
•Boost tubes feature smooth routing
•Boost tubes are CNC mandrel bent from lightweight aluminum tubing
•Boost tubes feature a powder coat finish
•Boost tubes take the smoothest and shortest path to get air to and from the intercooler
•All intercoolers are pressure tested to 50 psi
•PERRIN stencil included
•No tuning required
Intercooler Construction
The PERRIN Intercooler Core is 28” long x 9.25” tall x 3.5” deep with a volume of 906.5 cu-in. which gives the PERRIN Intercooler the best overall design for cooling and pressure drop! The 3/8” bar and plate design is more durable than the tube and fin design and has the ability to withstand rocks and other debris.
The PERRIN Intercooler Core is 28” long x 9.25” tall x 3.5” deep with a volume of 906.5 cu-in. which gives the PERRIN Intercooler the best overall design for cooling and pressure drop! The 3/8” bar and plate design is more durable than the tube and fin design and has the ability to withstand rocks and other debris.
Intercooler Finish
Every PERRIN Intercooler Core features a black powder coat finish to protect your intercooler from the elements.
End Tanks Design
PERRIN End Tanks are designed to disperse hot charge air across the intercooler core. Turbulence is eliminated by eliminating 90º corners and adding a smooth, gradual taper from top to bottom.
Throttle Body Adapter
The PERRIN Front Mount Intercooler Kit comes with a CNC machined throttle body adapter to simplify the boost tube connection.
Boost Tube Construction
With boost tubes up to 2.75" in diameter, PERRIN Boost Tubes feature smooth routing while remaining large enough to flow more WHP than most turbos can put out. They are CNC mandrel bent from lightweight aluminum tubing and feature an oversized, beaded end to ensure the hose clamps and couplers stay connected and sealed, no matter your boost level!
Boost Tube Finish
PERRIN Boost Tubes are powder-coated black for protection from the elements, making them look awesome for years to come.
Boost Tube Routing

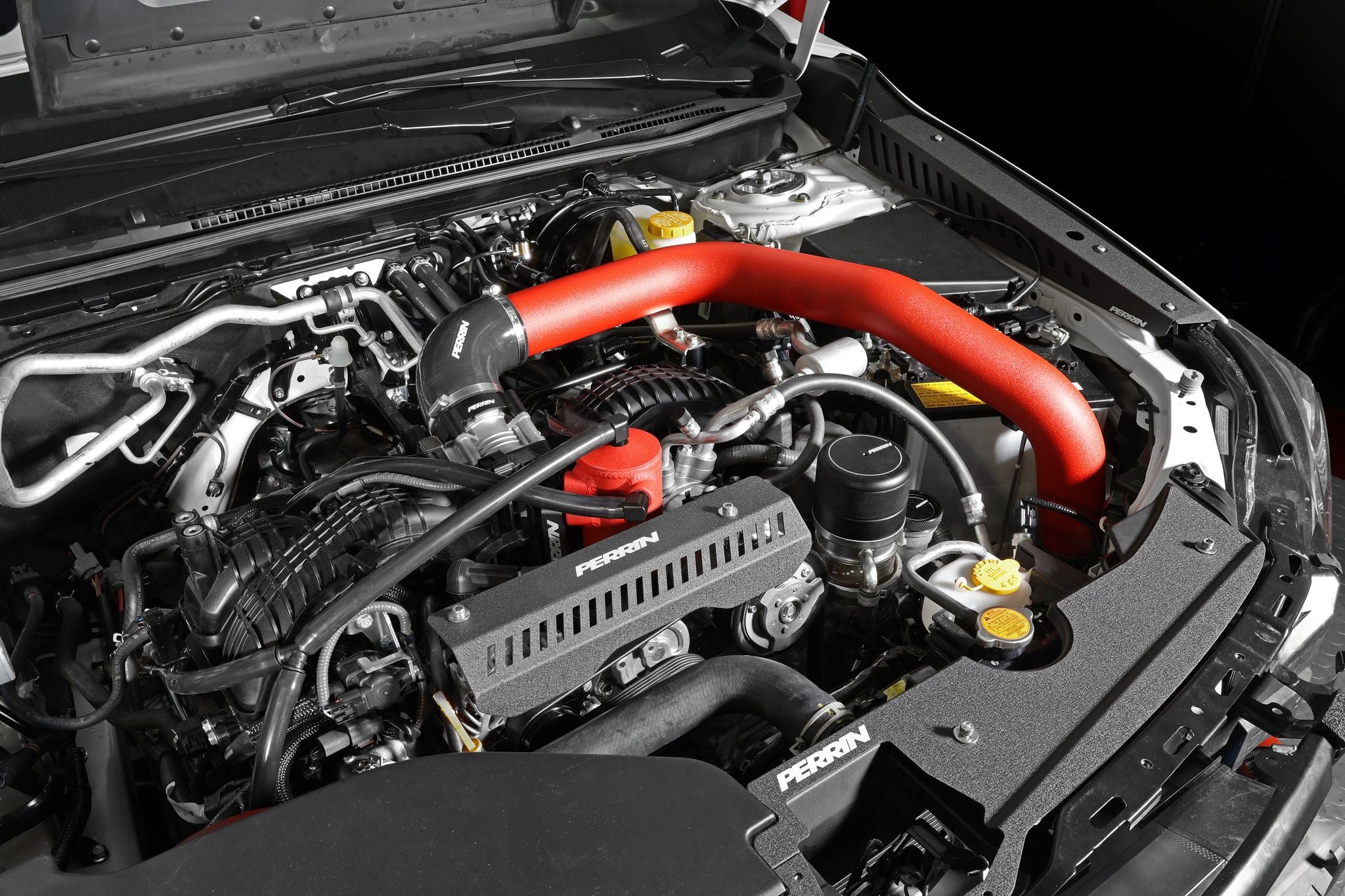

PERRIN Boost Tubes take the smoothest, shortest path to get air to and from the intercooler. Off the turbo, a short bend carries the hot side air charge past the intake system to the intercooler core. Cold side boost tubes are mounted high in the engine compartment clearing all accessories.
Intercooler Pressure Testing
PERRIN is one of the only intercooler manufacturers who pressure test every intercooler to 50 psi. Even the slightest leak can bleed turbo boost pressure out of the intercooler and cause your vehicle to lose power.
Intercooler Stencil
Included with our front mount intercooler is a free PERRIN logo intercooler stencil. Use the stencil to easily paint the PERRIN logo across the front of your intercooler. Simply peel, stick, paint, and remove!
No Tuning Required
Increase horsepower and torque without ECU recalibration or tune! This part is designed and tested to work safely on your vehicle without any tuning required! However, more power can be gained with proper ECU tuning! Confirm any tune or recalibration you add is specific for ALL modifications added to the vehicle. Questions? Contact Tech@PERRIN.com.excexc
Choose options
PERRIN FRONT MOUNT INTERCOOLER KIT - Red Tubes & Silver Core - 2022+ WRX
Sale price$1,609.59 CAD
Regular price$2,011.99 CAD
