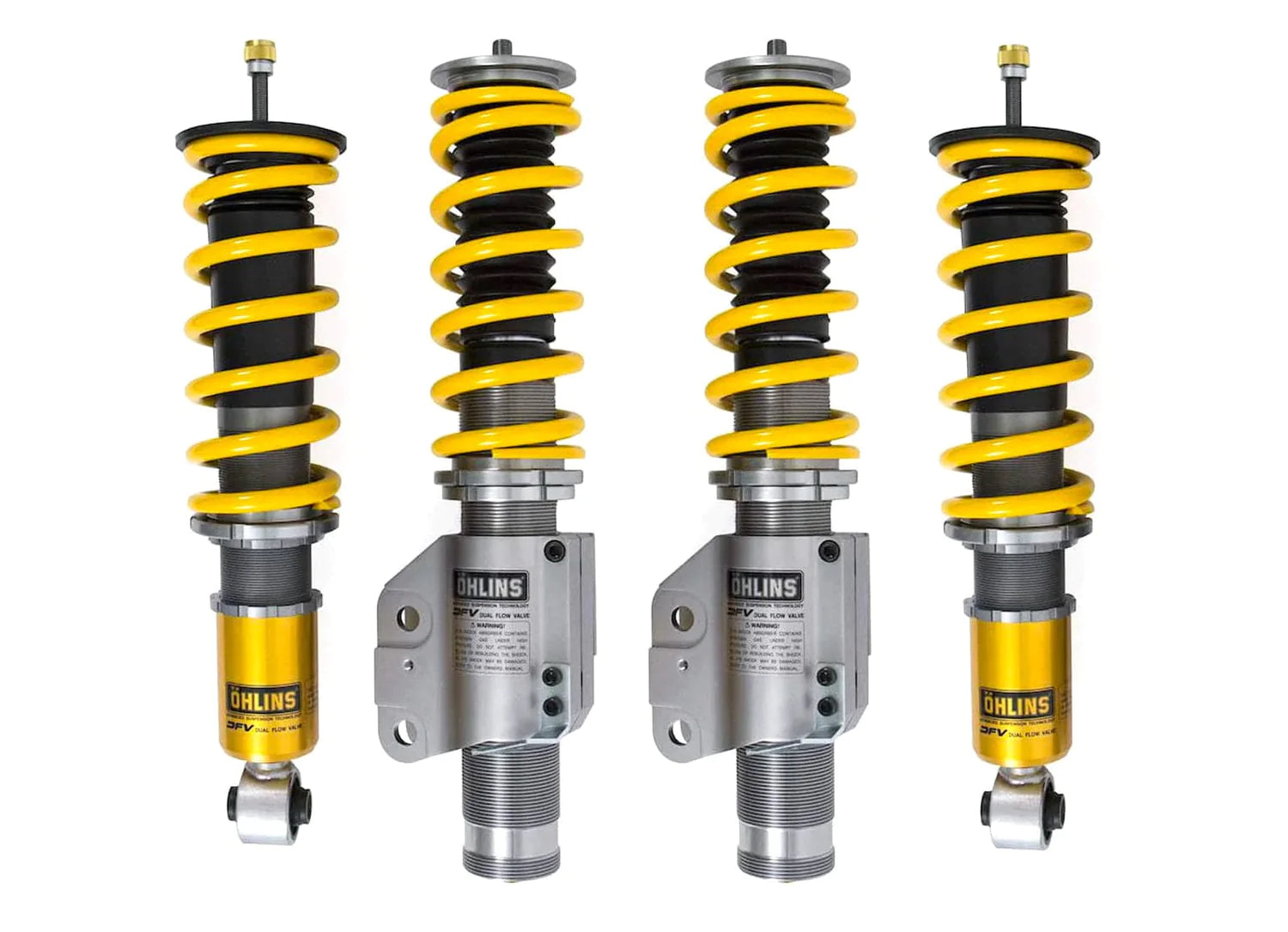

Ohlins Road & Track Coilover System - 13-21 BRZ, 2022+ BRZ , 2022+ GR86

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustmen
• Approx. 20 mm lower than standard
• Spring rate 60 N/mm
• Adjustable aluminum uniball top mounts

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustmen
• Approx. 20 mm lower than standard
• Spring rate 60 N/mm
• Aluminum uniball top mounts

Purchased Parts Package:

• Coilover suspension kit incl. springs and mounting parts
• Top mounts front/rear
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instructions
