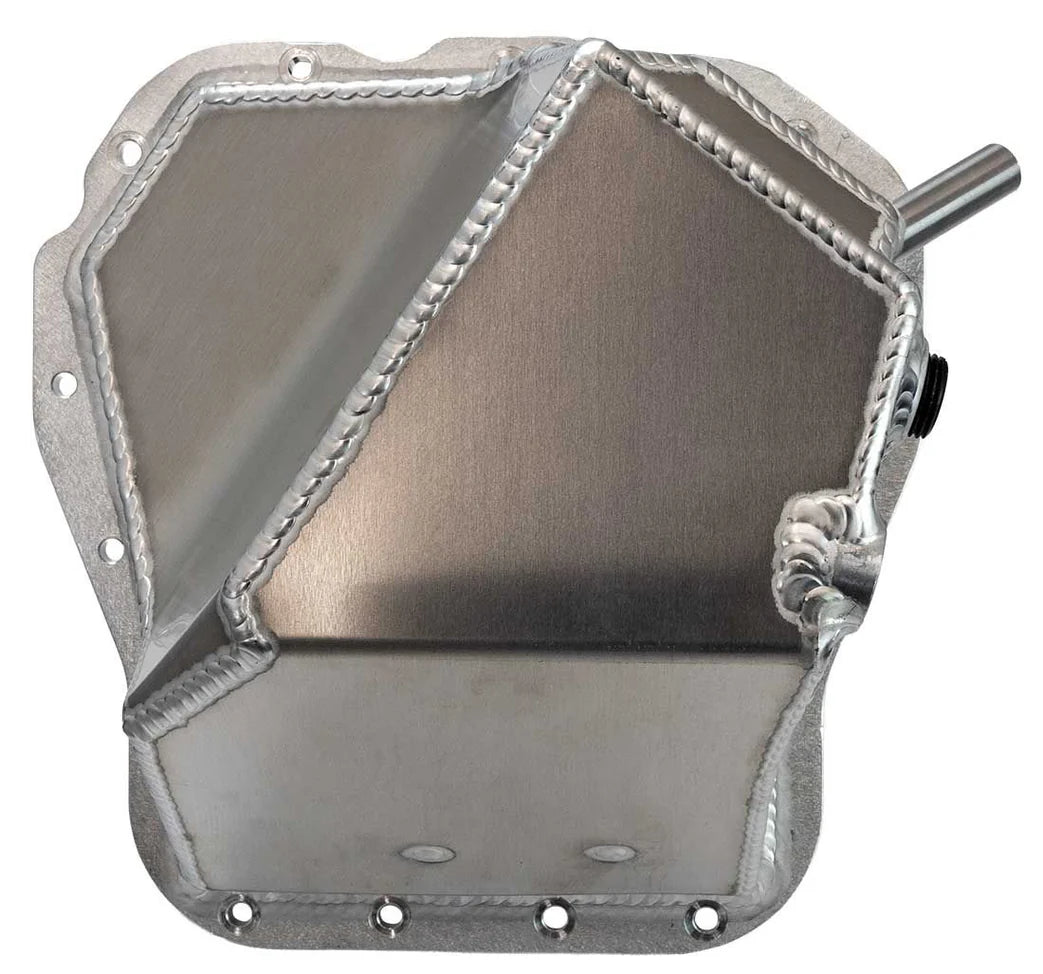

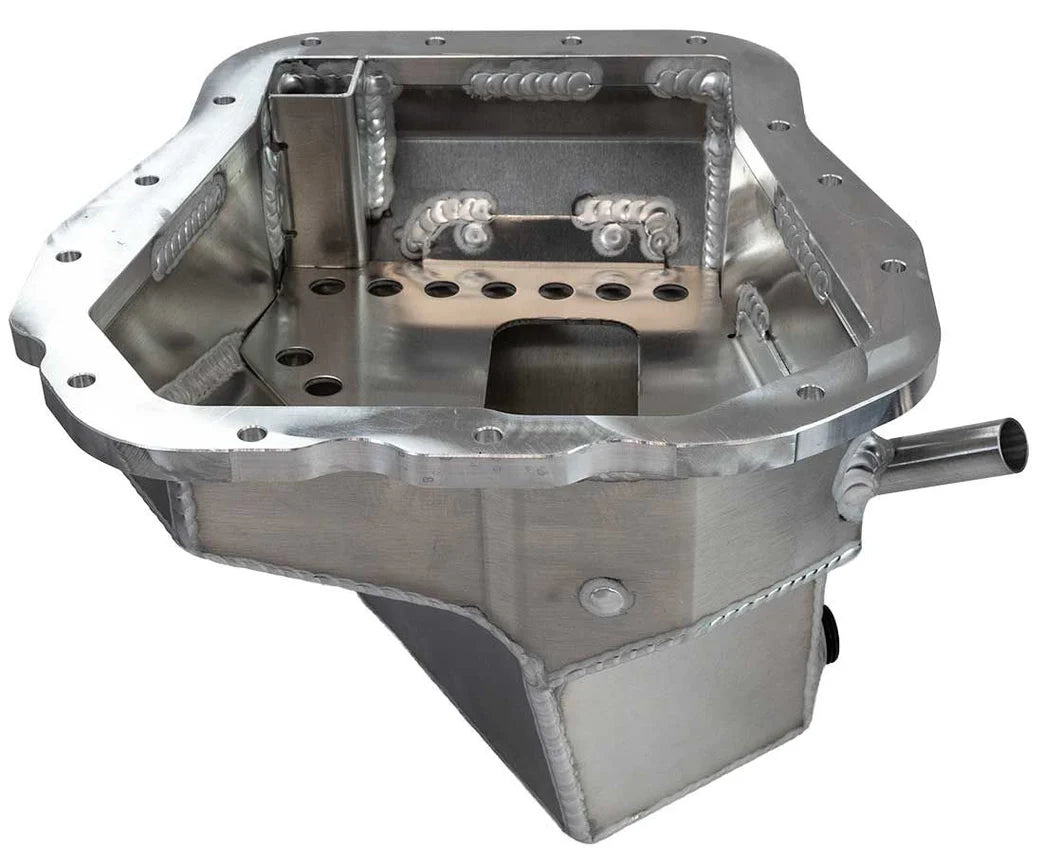

Moroso Aluminum Oil Pan w/ Windage Tray and Pick Up Tube - 2002-2014 WRX, 2004-2021 STI, 2004-2013 Forester XT, 2004-2009 Outback XT, 2004-2009 Legacy GT

Upgrade your oiling system with the Moroso Aluminum Oil Pan with Windage Tray and Pick Up Tube, designed for superior control, durability, and performance. Engineered for high-output builds and aggressive driving, this pan delivers improved oil management and rock-solid reliability—whether you're carving corners or heading to the track.

Features:

• Fully Fabricated Aluminum Construction – Built from high-quality aluminum with a billet rail for optimal sealing and long-term strength.
• Header-Friendly Fitment – Designed to clear most popular aftermarket header combinations.
• Enhanced Oil Control – Integrated slosh baffle and included windage tray reduce aeration and maintain consistent oil delivery under hard acceleration, braking, and cornering.
• Heavy-Duty Braced Pickup – Included reinforced oil pickup ensures dependable flow and added protection against vibration and high-RPM abuse.
• Sensor & Service Ready – Features a 1/2" NPT sensor bung for aftermarket monitoring and a 8AN magnetic drain plug with O-ring seal for clean, secure oil changes.
• OEM-Compatible Dipstick – Retains use of the factory dipstick for easy level checks.

Specifications:

• Material: Aluminum
• Capacity: 6 Quarts
• Style: Wet Sump
• Depth: 6-7/8"
• Includes: Oil Pan, Windage Tray, Heavy-Duty Pickup Tube

Note: Includes mounting hardware for tray and pickup; oil pan hardware (No. 38368) sold separately
