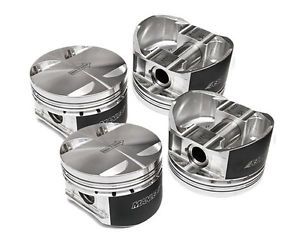

Manley Performance Platinum Series Piston Set - STD Stroke 93mm +1mm Bore 8.5:1 Dish Piston Set with Rings - 02-05 WRX
SKU: MAN615010C-4
$955.99 CAD
$1,014.26 CAD
Vehicle Fitment:
Subaru EJ205
2002-2005 WRX
Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier second ring
• Round wire locks included
• Recommended piston clearance: .003" for mildly boosted and .0035" for highly boosted
measured .850" (79mm stroke) and 1.100" (75mm stroke) from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Wire Locks
Images:
Pistons will vary by application. Images are for reference.
