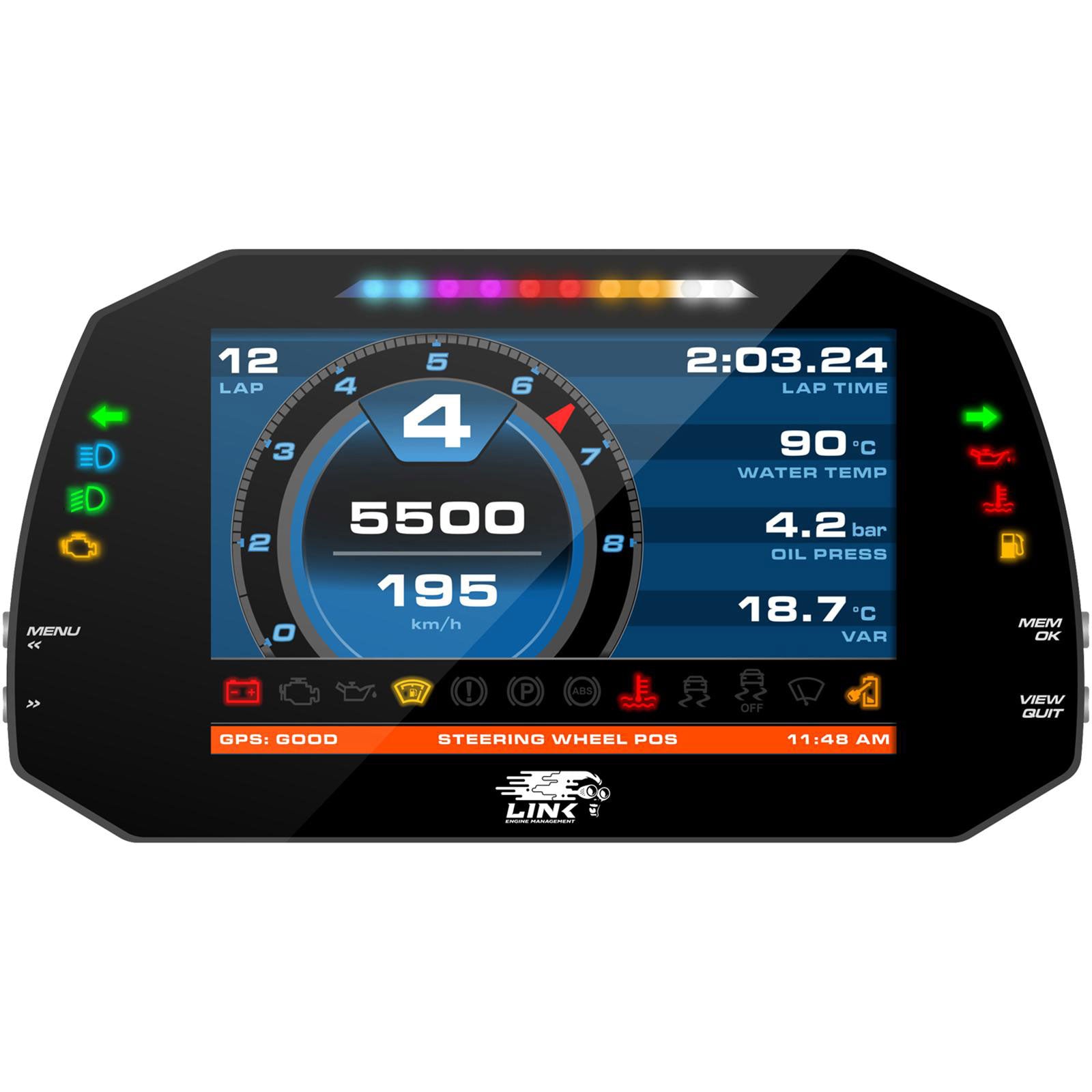

LINK MXG Strada 7-inch Dash - Street Edition

The Link MXG Strada Street Edition dash features customisable shift lights, six street icons and a high contrast 7-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 8 Street Icons located to the side of the screen. These include an indicator lights, headlight, high beam, check engine, oil pressure warning light, temperature warning light and fuel light.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box.
To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

Included in the box:

• Link MXG 1.2 Strada
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts

Specifications:

• Power consumption: 400 mA
• Dash Dimensions: 237×127.6×26 mm
• Weight: 950 g
• Waterproof: IP65
