Killer B Motorsport

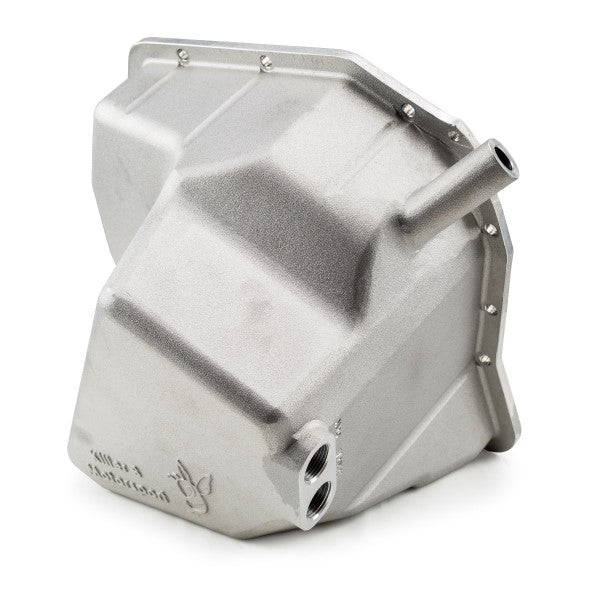

Killer B High Performance Oil Pan EJ Series - EJ Engines
SKU: KLBEJ25PAN
$759.99 CAD
The Killer B Motorsport V2 Performance Oil pan is designed to reliably meet the demands of high performance Subaru Engines used on street or track applications.
This Oil Pan holds an extra 1.3 quarts of oil, over 30% increase in capacity over the OEM one. This Oil Pan was designed to work with their Ultimate Oil Pickup (OEM ones are known to break), but can be modified to work with the OEM pickup.
This oil pan works with almost all headers and all are fit and leak tested before leaving Killer B Motorsport. There have been reported issues of fitment issues with some Invidia headers, but not all.
Each pan comes with an OEM sized drain port as well as one 1/2" NPT Port.
Features:
- 3D CAD Designed
- 1/4" Billet Aluminum Flange
- 1/8" thick CNC Laser cut pan
- CNC Formed *TIG Welded
- (1) OEM Port & (1) 1/2" NPT Port (Plugs or Adapters Required)
- Comes with ALL Mounting Hardware
- All Pans Fit and Leak Tested
- No Moving Parts
- Fits Most Headers
- Over 30% Increase in Capacity
- Streamlined Flow-Through Baffles
Kit Includes:
- Killer B Oil Pan
- Installation Hardware & Gaskets
Note:
- You will need to get a plug for the NPT port if you don't plan on using a quick drain valve or anything else.
- OEM Belly pan will need to have a small piece trimmed on some models.
- Turbo EJ20 engines will need to change to the STi dipstick and tube or simply mark the old dipstick with a new full mark.
Fitment:
2004-2020 Subaru STI & Type-RA
2002-2014 Subaru WRX (Requires triangle oil pan #11109AA151)
2005-2009 Subaru Legacy GT & Spec B
2004-2013 Subaru Forester XT
2005-2009 Subaru Outback XT
2005-2006 Saab 9-2X Aero
All USDM & JDM EJ-Series Turbo Engines (EJ205 / EJ207 / EJ22T / EJ255 / EJ257 / EJ257B / EJ20X / EJ20Y)
