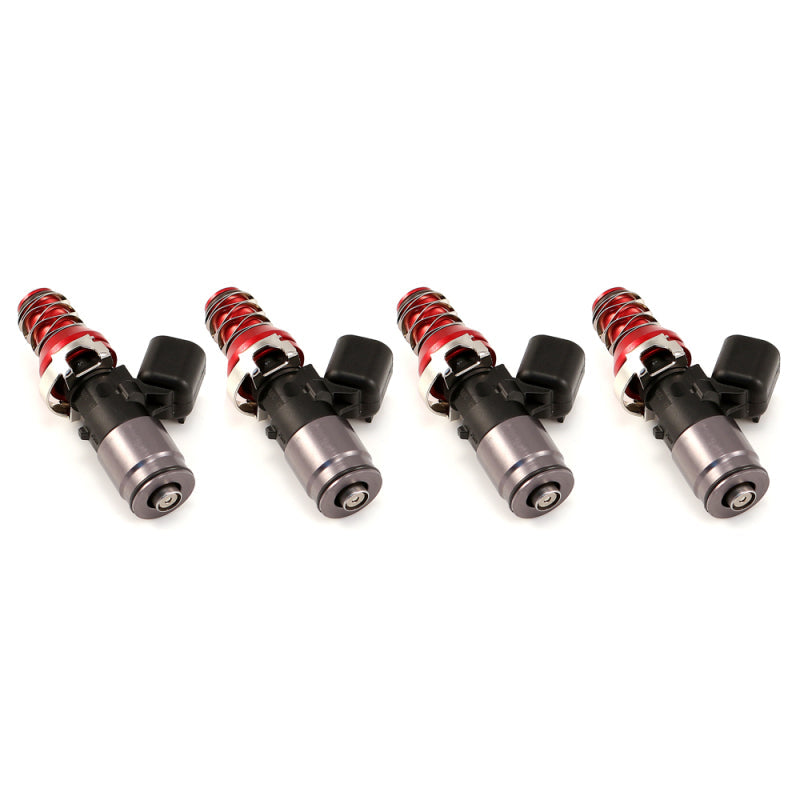

Injector Dynamics 1750-XDS Top Feed Fuel Injectors 1750cc - 02-14 WRX, 07-21 STI, 07-11 FXT, 07-11 LGT
DETAILS
The ID1750-XDS is the successor to the ID1700, featuring numerous improvements.
Compared to the 1700, the 1750 offers:
- Higher Dynamic Flow Rate With no Increase in Minimum Fuel Mass.
- Better Cylinder to Cylinder Balance at Low Pulsewidths.
- Improved Pressure Sensitivity.
The ID1750-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700 was designed to fill the gap between the ID1300 and the ID2000, and like the ID1300, it features corrosion resistant internals making it compatible with all known automotive fuels.
The ID1750-XDS was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
Basic Specifications
- Nominal Flow Rate – 1728cc/min @ 3.0 Bar (43.5 psi), Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
- Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
- Fuel Compatibility – Compatible with Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels.
- Electrical Connector – USCAR
Compatibility With all Automotive Fuels
Another key requirement is compatibility with all automotive fuels.
From MTBE, to ethanol, the X Series are compatible with everything but dirt. Every dimensionally critical part inside of the X Series is made from corrosion resistant material, making them compatible with all fuels, and providing better long term consistency when used with corrosive fuels.
