IAG 600 FA20 DIT Subaru Short Block for 2015-21 WRX - 600 BHP

SKU: IAG-ENG-S600

$6,558.99 CAD

⏳ Sale ends in {timer}

1 piece in stock.

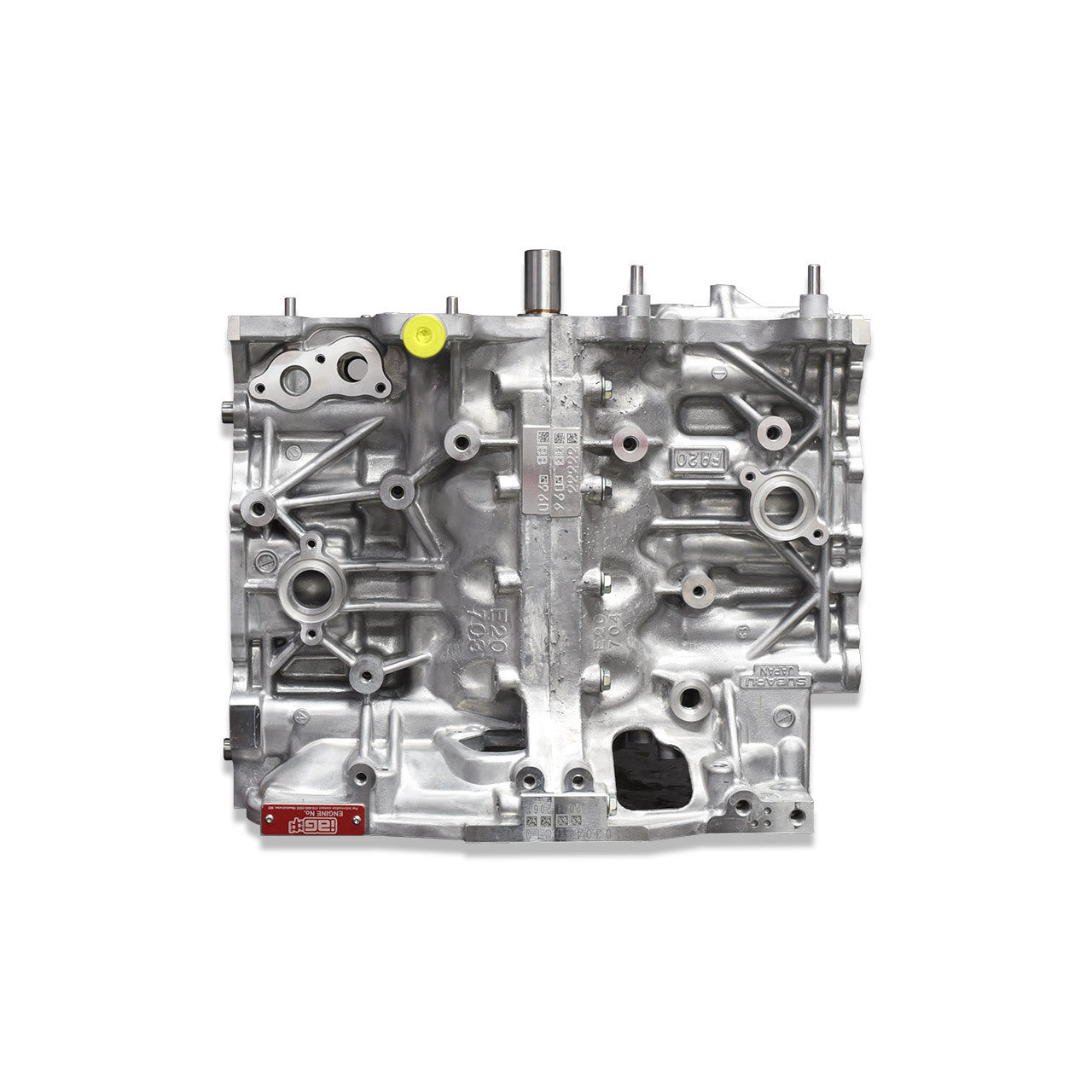

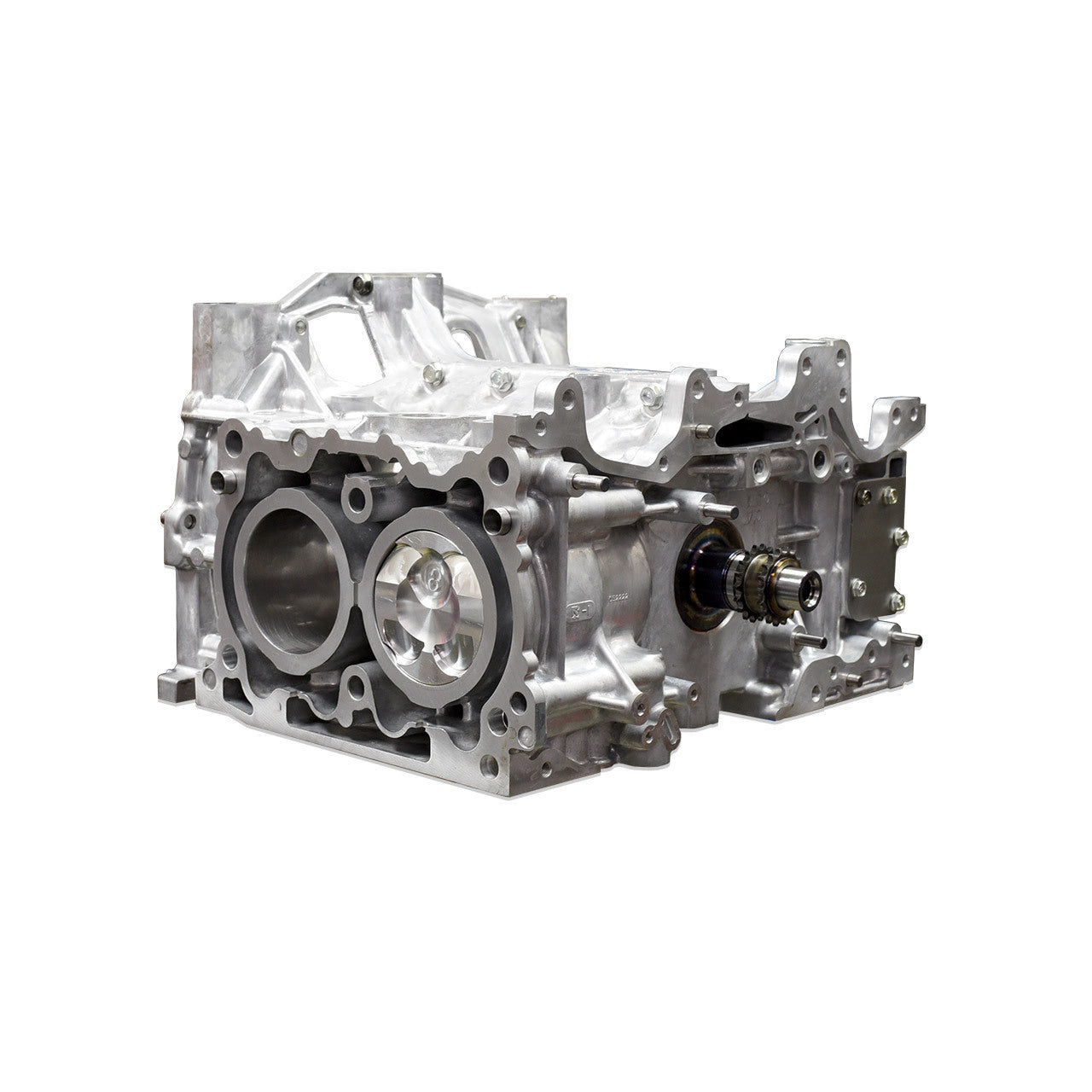

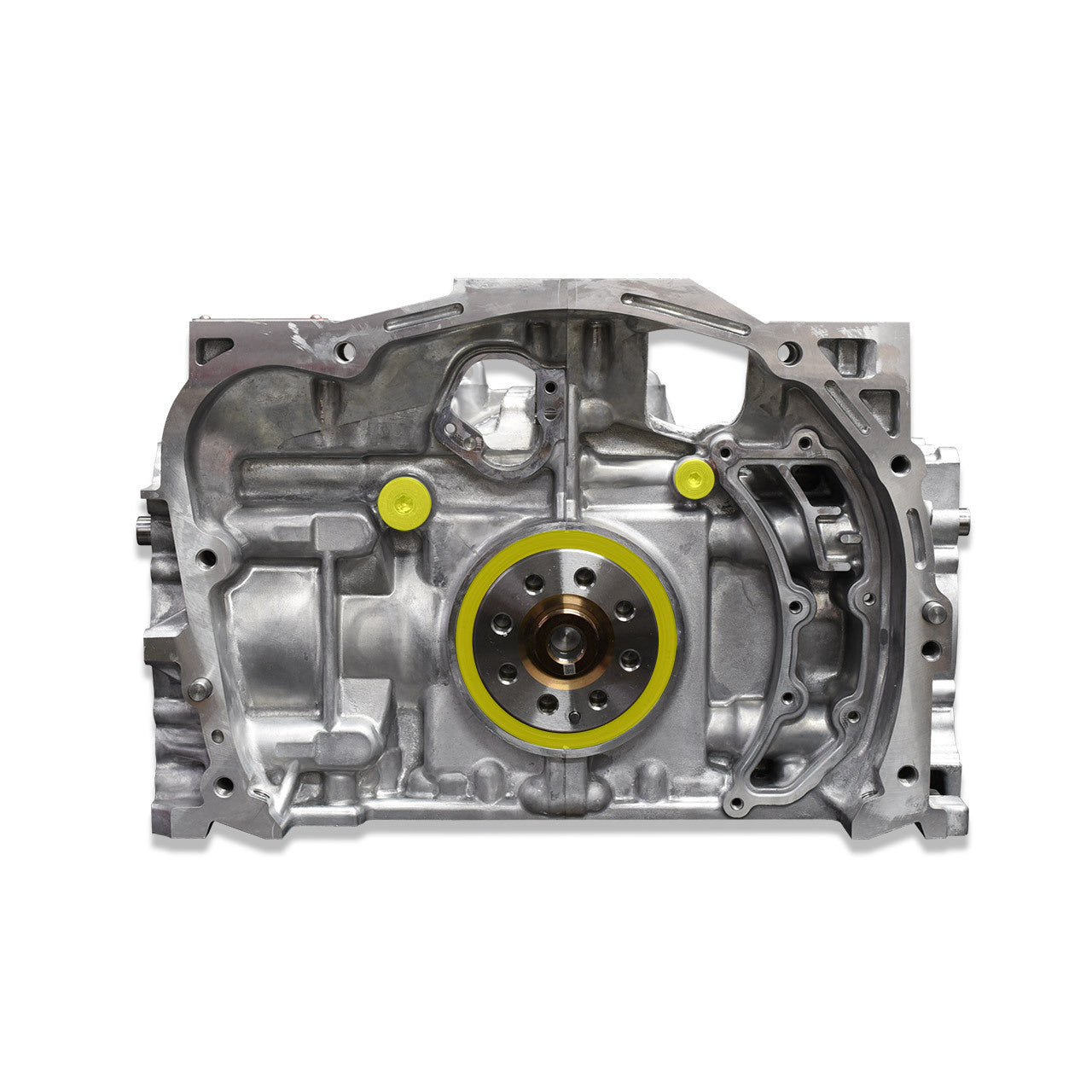

IAG 600 FA20 DIT 2.0L SUBARU SHORT BLOCK

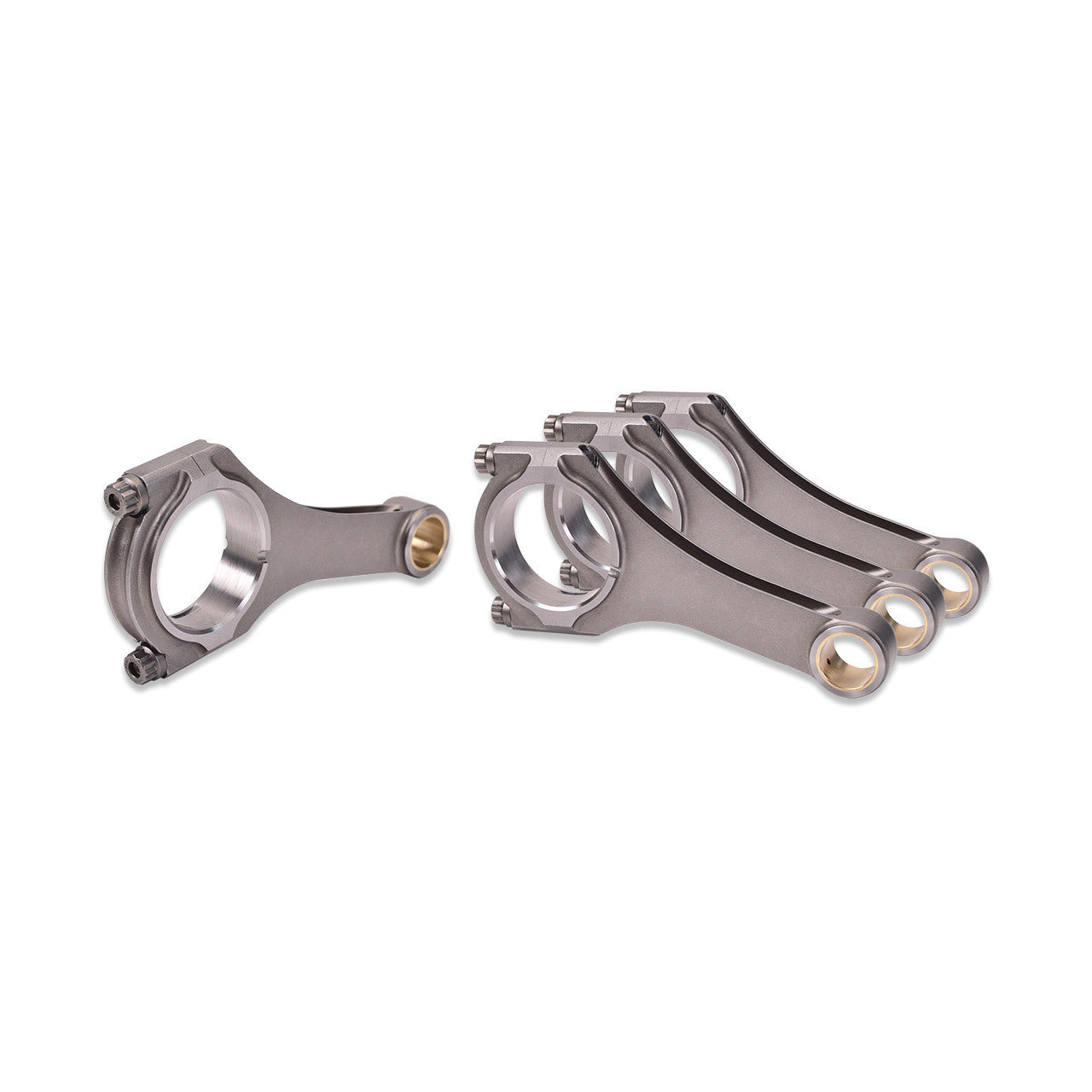

IAG FA20 DIT H-Beam Rods

DESIGNED FOR STRENGTH

The IAG 600 Short Block is designed for stock or modified FA20 DIT Subaru WRXs that need a stronger bottom end to support increased cylinder pressures created by additional boost pressure. The IAG 600 short block features IAG Spec H-Beam forged connecting rods. The upgraded connecting rods and race bearings are able to support additional engine load produced by larger turbochargers or increased boost which the OEM rods and pistons found in the stock short blocks cannot support reliably.

BUILT WITH 100% NEW COMPONENTS

Each IAG 600 Short Block starts with brand new FA20 DIT Subaru 2.0L, 86mm stock bore engine case halves as standard. The case haves are carefullly bored and honed to 86.1mm then measured and assembled using a new 2015+ Subaru 2.0L FA20 crankshaft, which is matched to ACL or King race main bearings. The IAG 600 Short Block features IAG Spec H-Beam Connecting Rods with ARP2000 rod bolts, along with ACL or King race rod bearings. The case halves are sealed with new OEM main case bolts and sealant. Finally, IAG Spec JE FSR 86.1mm Forged Pistons are carefully selected, measured, and installed to finish off the short block.

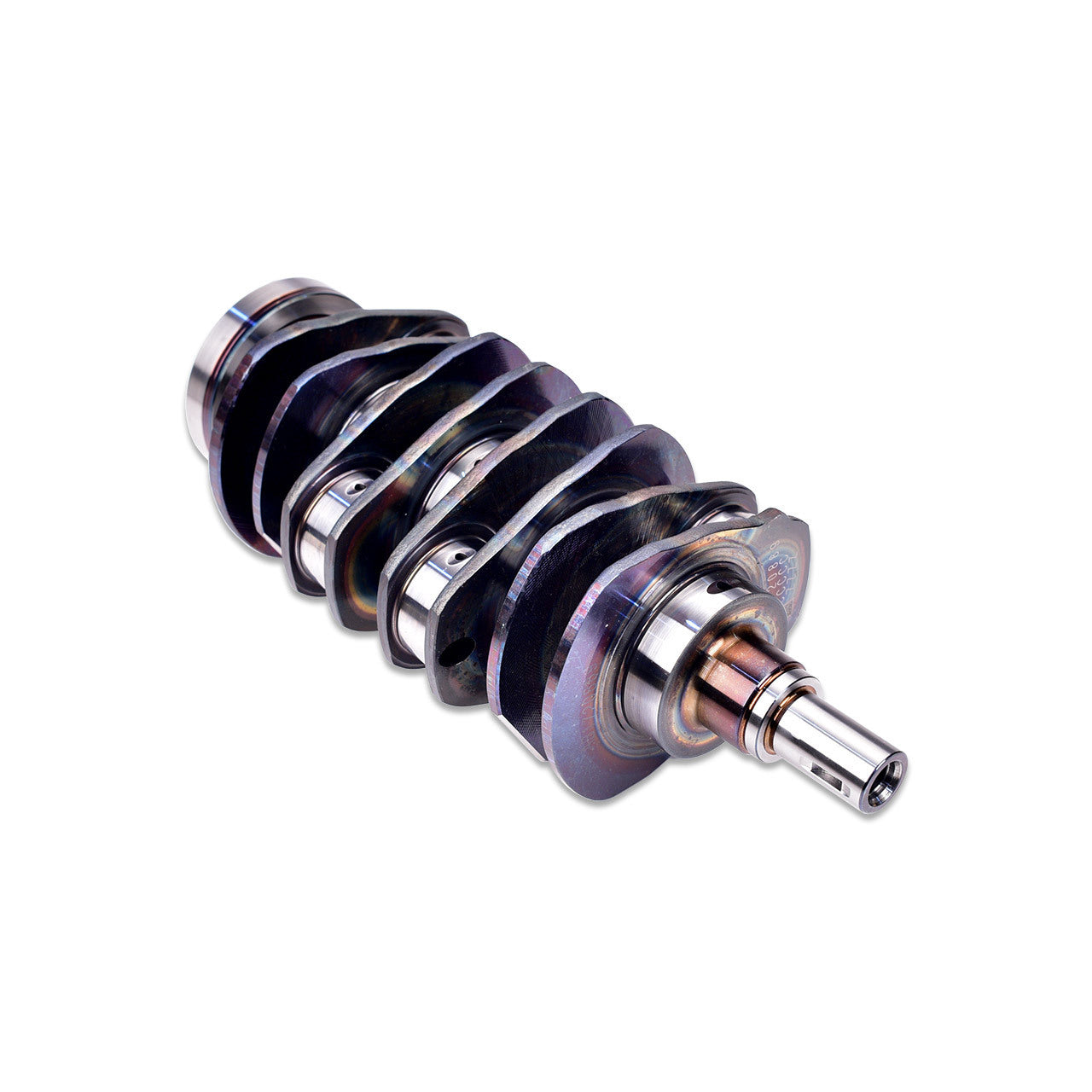

FA20 Crank

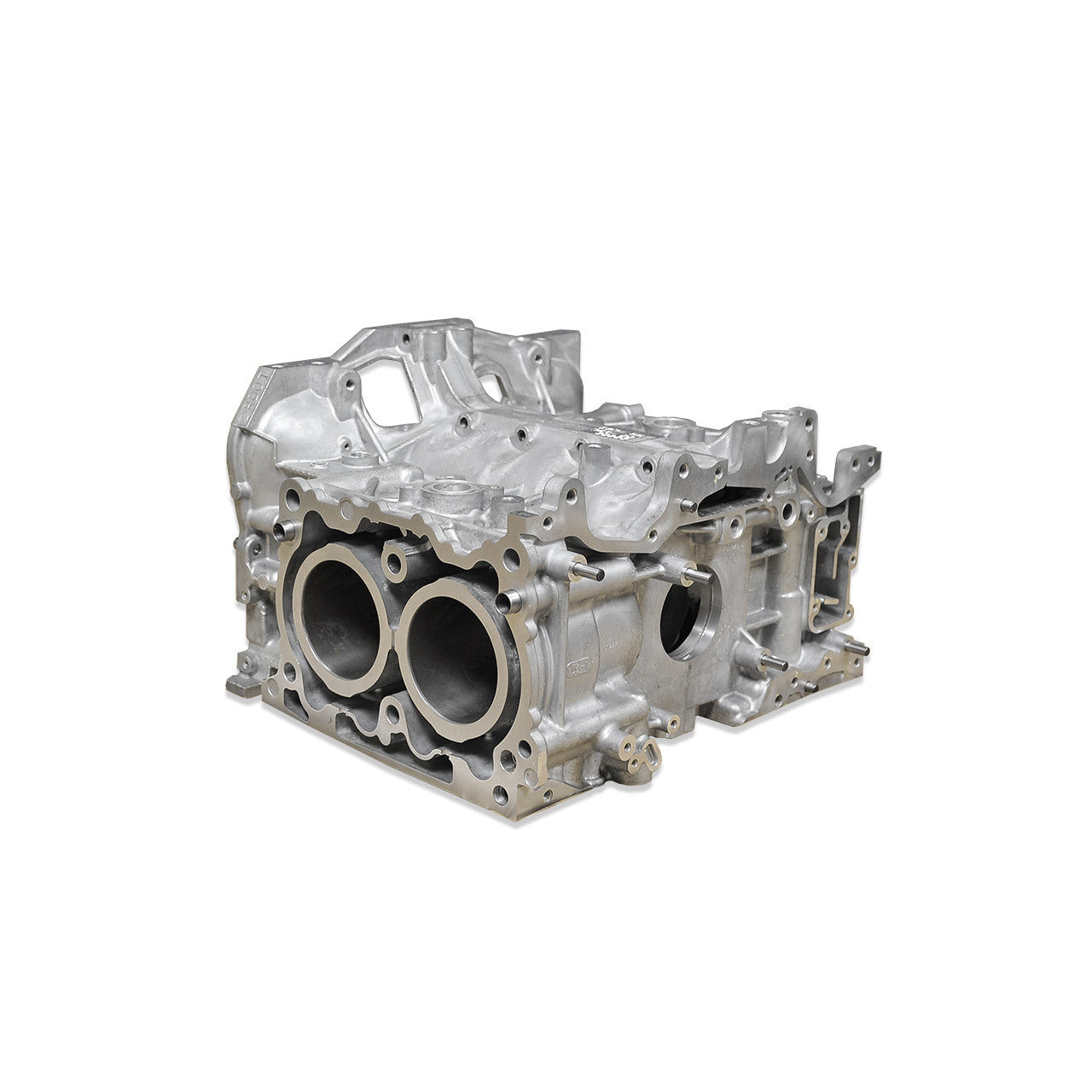

FA20 Case Half

MODIFIED OIL PASSAGES FOR INCREASED OILING

Adequate oil flow is critical to performance and relibility. It's no secret that the OEM cases from Subaru leave something to be desired in the oiling department. Our machinists carefully inspect and modify the internal oil passages of each new OEM case used in the IAG 600 Short Block to ensure proper flow and reliability.

FORGED PISTONS, DESIGNED FOR BOOST

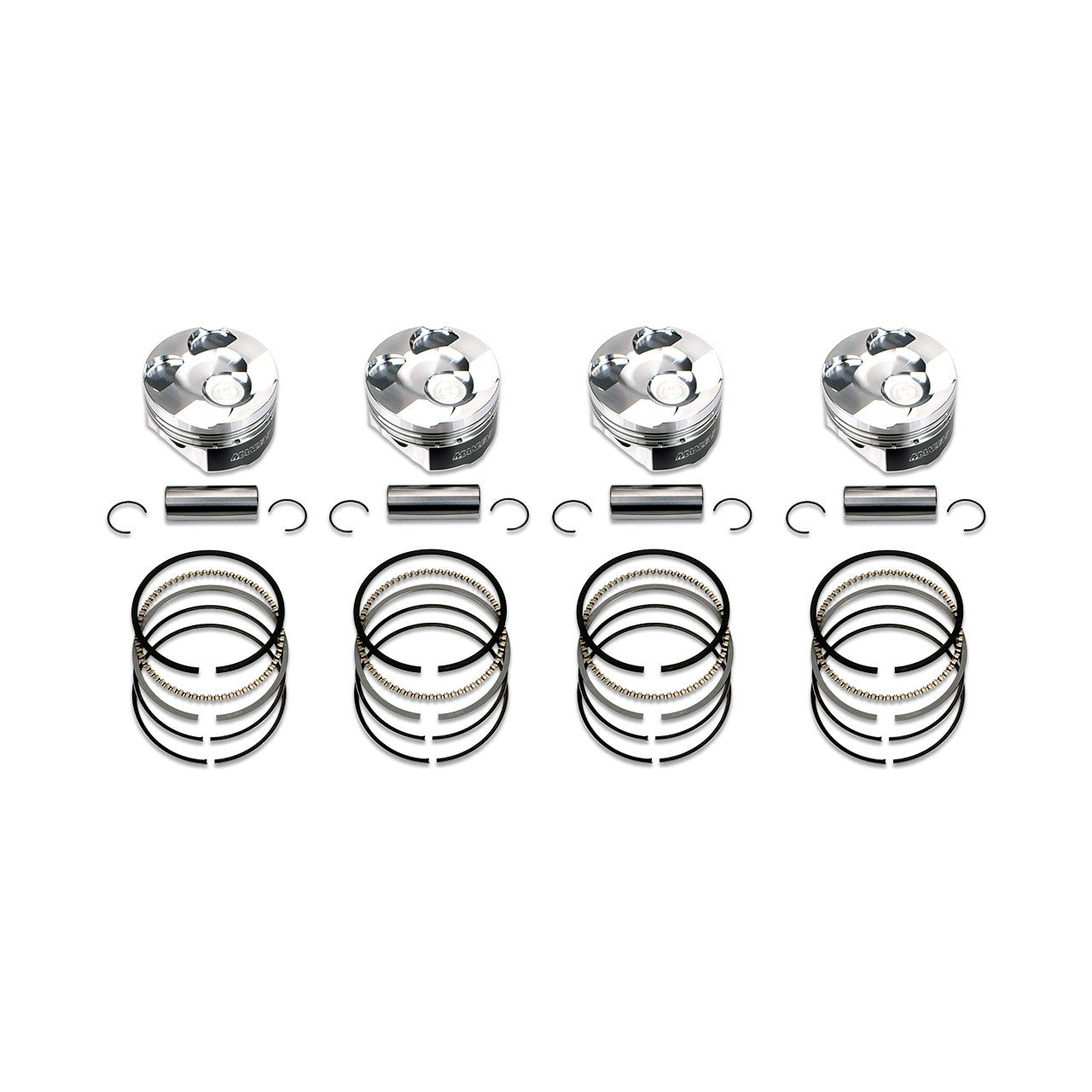

Each IAG 600 Short Block features IAG Spec JE FSR 86.1mm Forged Pistons. These 2618 T6 Alloy high-strength pistons have been specifically designed to support increased cylinder pressures which come with more boost. FSR forgings reduce mass and wear caused by friction without sacrificing strength. This is accomplished by using an asymmetrical skirt design instead of the traditional full-round skirt, also this reduces weight significantly. Featuring smooth flowing radii on the domes and dishes, the design promotes excellent flame travel. The pistons are secured to the rods with .905 x 2.250" x .150" wall carbon steel wrist pins with Tru Arc locks.

IAG Spec JE FSR Pistons for FA20 DIT

What's Inside:


IAG 600 FA20 2.0L Short Block Includes:

  • Case Halves -Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm
  • Case Machining - Modified for improved oiling
  • Case Machining - Bored and honed to 86.1mm
  • Pistons -IAG-Spec 86.1mm Forged Pistons, Ring Set, and .150" x 2.250" Chromoly Wrist Pins.
  • Connecting Rods -IAG-Spec H-Beam / ARP2000 Rod Bolts

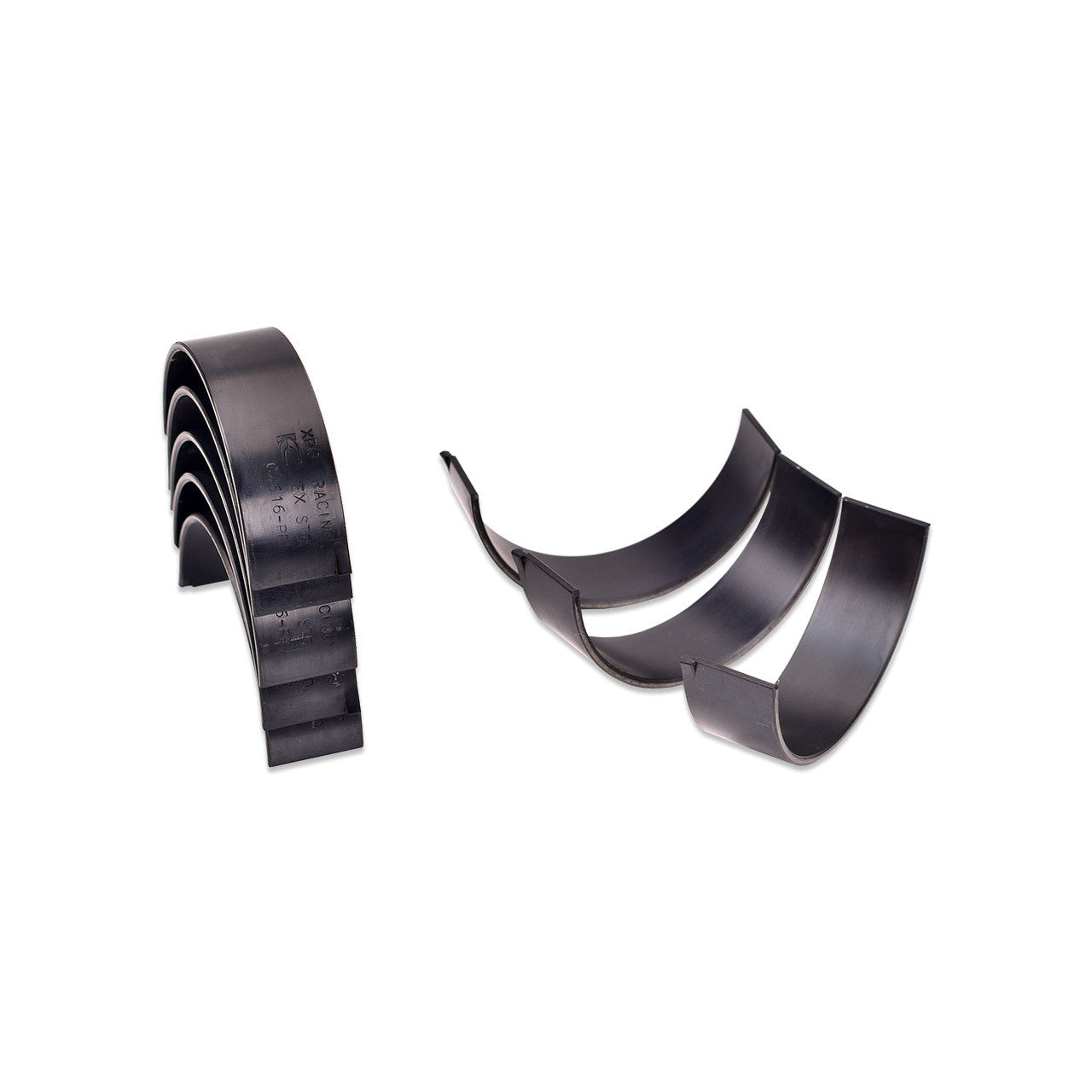

  • Rod -ACL or King XPG

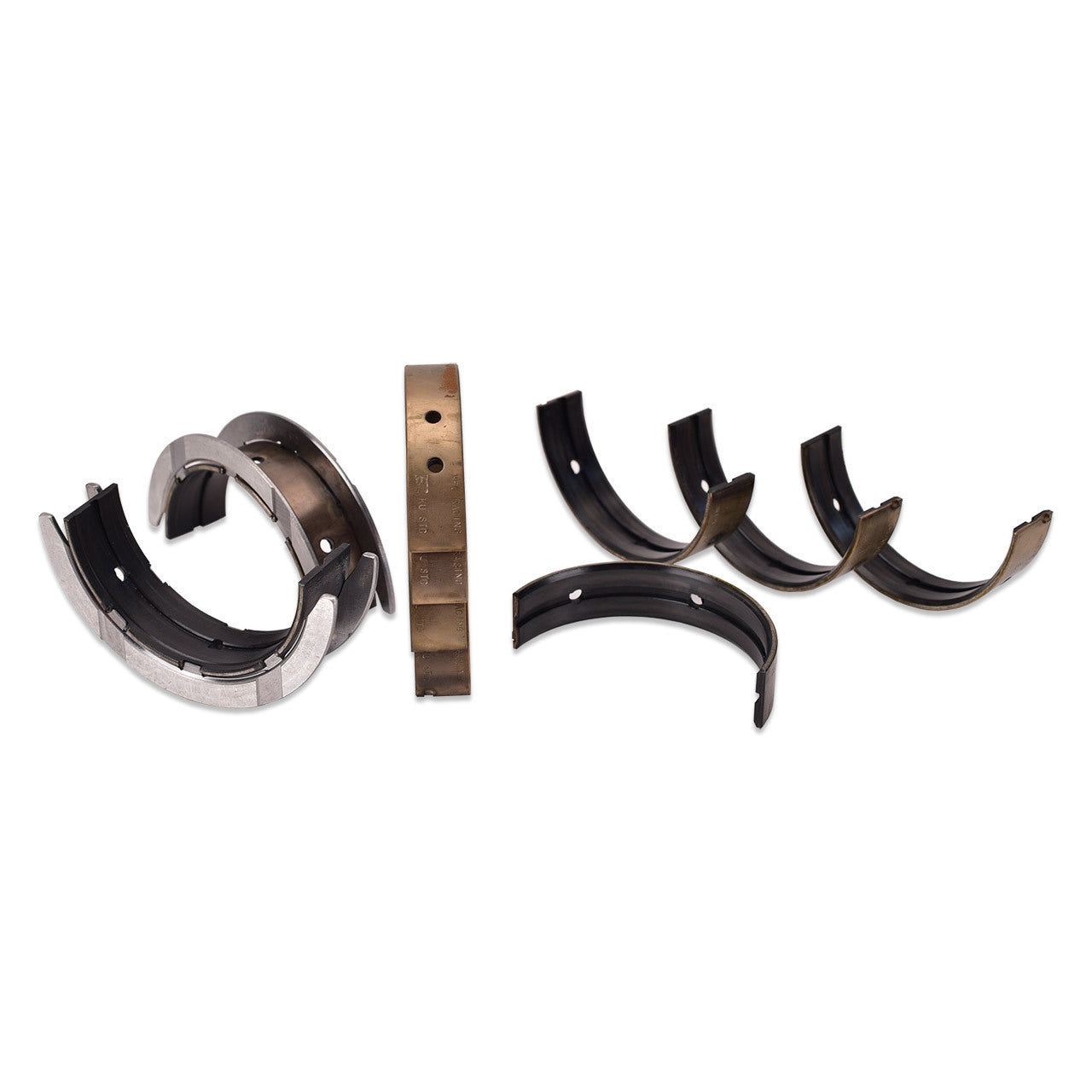

  • Main Bearings -King XPG
  • Crankshaft -New Subaru FA20 DIT WRX crankshaft
  • Case / Main Bolts -Standard Subaru case bolts

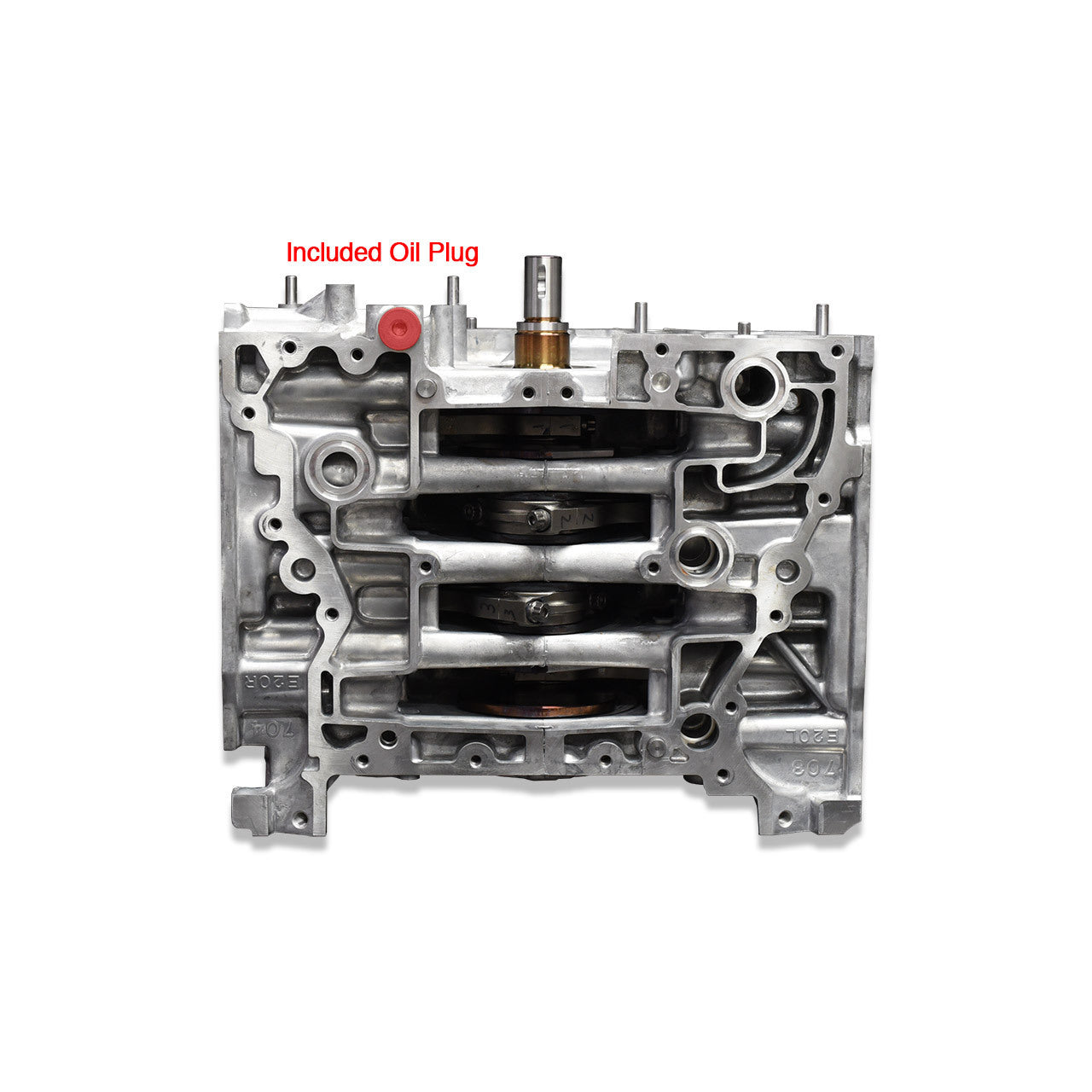

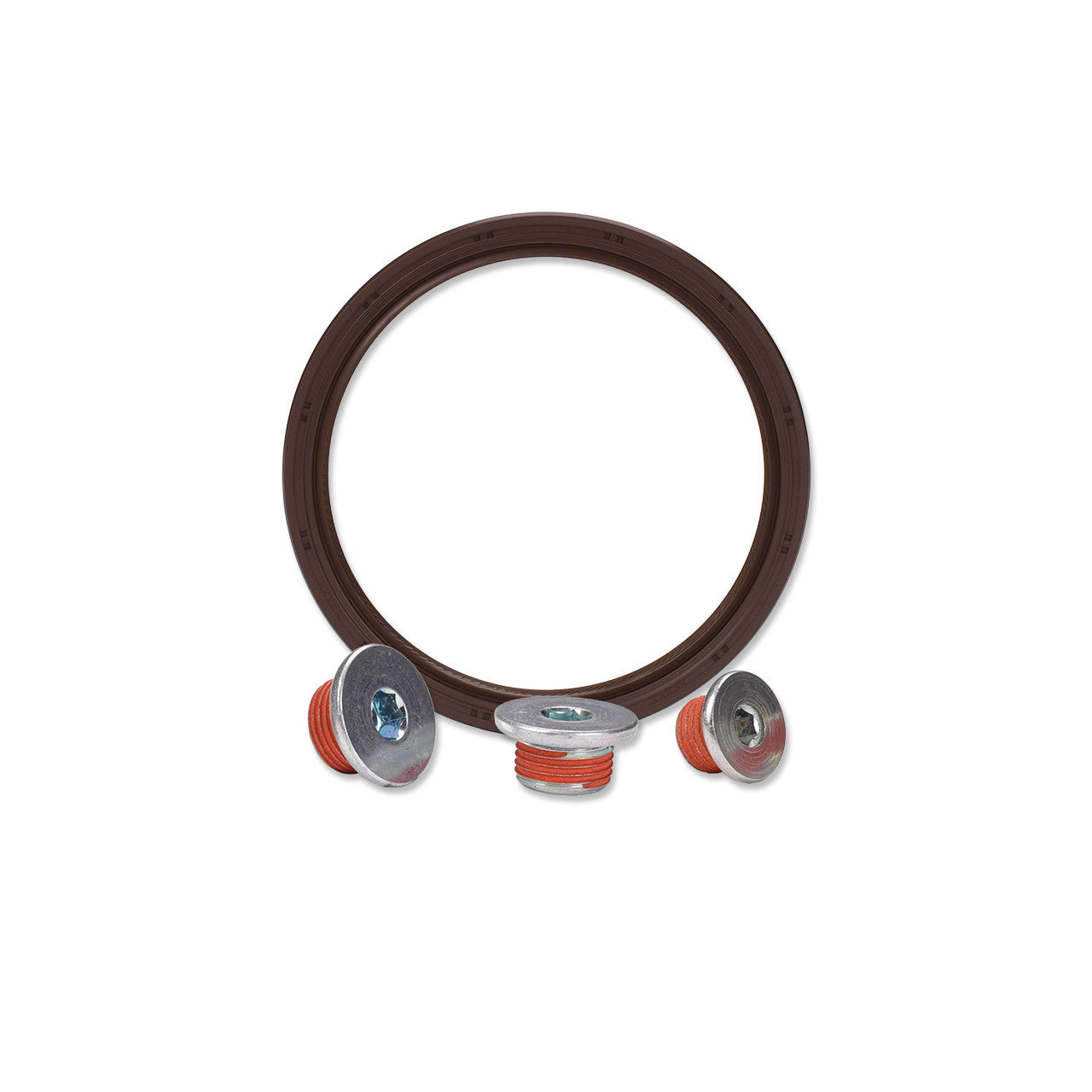

  • Hardware - OEM Oil Plug - comes preinstalled at the oil pan location

Compression Ratio:

  • 10.5:1 compression on standard gasket thickness.
