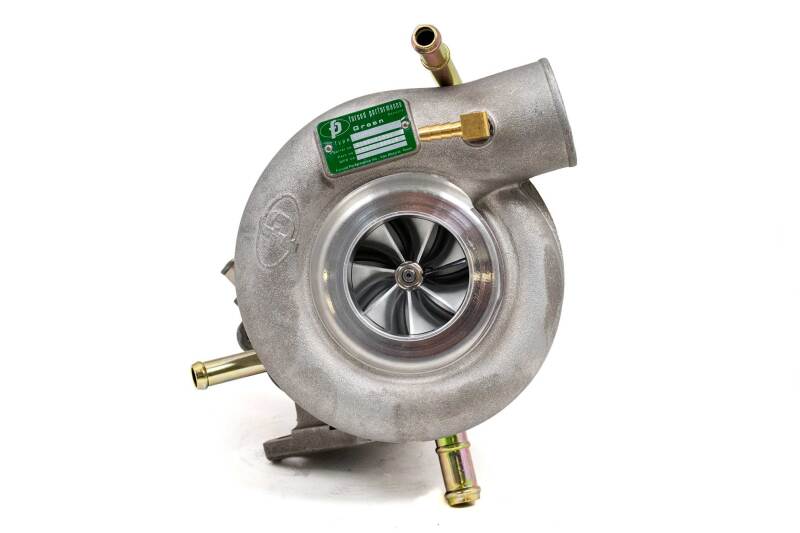

Forced Performance Green UHF Turbo - Internal WG w/Oil Line - 02-07 WRX, 04-21 STI

FP Green UHF™

• Compressor wheel - 76HT
• Flow rating - 61LB per minute
• CW Measurements - 54.8MM Inducer / 76MM Exducer
• UHF TW Measurements - 64MM Inducer / 57MM Exducer
• Compressor Housing - 60MM Stock Style Inlet
• Turbine Housing - FP 8CM Turbine Housing
• CHRA - FP Journal Bearing
• Oil Line - Included

This turbo features the 76 HT™ compressor section with either a 60MM stock style inlet or 84MM FAP compressor cover coupled to the 8cm turbine housing with our new XR57S UHF turbine wheel. The FP Green™ flows 61LB a minute and is capable of producing upwards of 500WHP. Internal gate turbos are available with either the canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.
