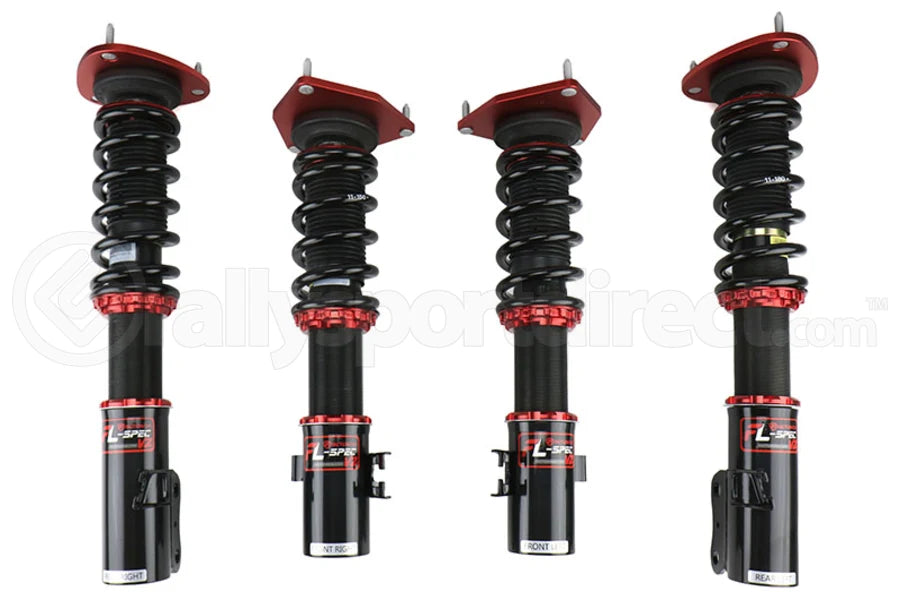

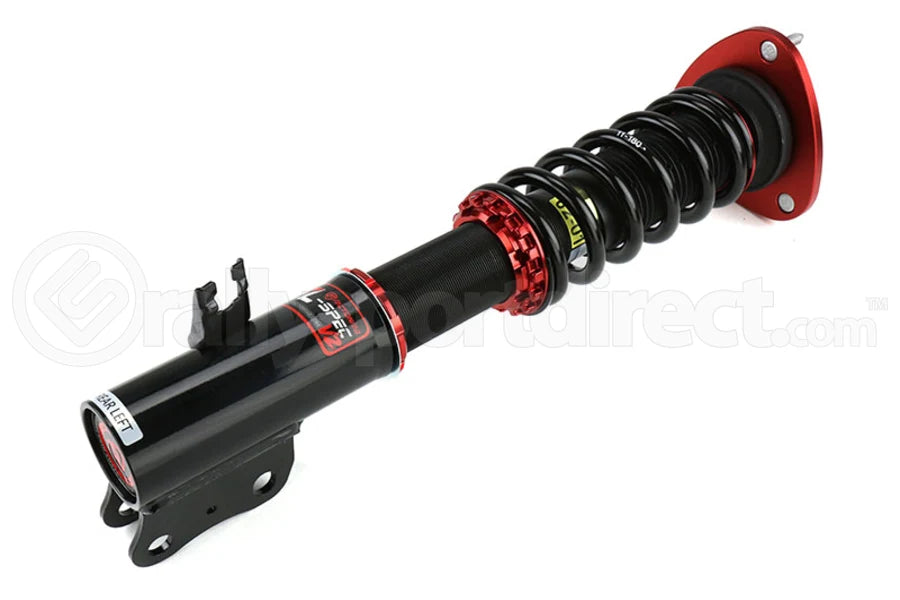

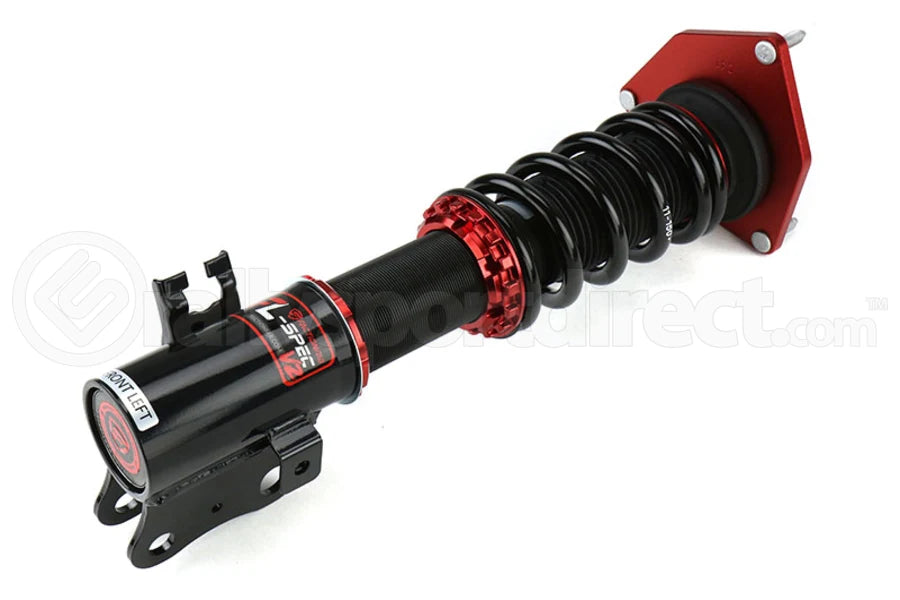

FactionFab FR-Spec Coilovers V2 - 2002-2007 WRX, 2004 STI

FactionFab V2 FR-Spec Track Coilovers

The FactionFab V2 FR-Spec Coilovers are designed for enthusiasts looking for a track-focused suspension system that delivers increased control, responsiveness, and adjustability.

Building on the original V1 FR-Spec, the V2 features revised spring rates, updated damping characteristics, 30-way adjustable shocks, and redesigned components throughout the system.

The FR-Spec is ideally suited for purpose-built track cars, race cars, autocross builds, and performance-focused street vehicles. While designed primarily for performance driving, the adjustable damping range also allows drivers to tailor the suspension for spirited street driving and different road conditions.

Key Features

• 30-way adjustable damping

• Performance-focused spring rates and shock valving

• Vehicle-specific valving and shim stacks

• Monotube shock design front and rear

• High-performance monotube construction for improved control, fluid life, and thermal stability

• Independent ride-height adjustment separate from spring preload

• Front pillowball camber-adjustable top hats

• Offset front camber plates for increased negative camber adjustment

• Rear camber plates included on 2002–2007 applications

• Rear damping extenders included on 2002–2007 applications

• Forged 6061 aluminum adjustable collars and spring seats

• Heavyweight shock oil for improved heat resistance and consistent damping

• Longer shock bodies for increased stroke and greater oil capacity

• OEM-style mounting provisions for brake lines and ABS wiring

• 12-month warranty against manufacturing defects

V2 FR-Spec Track Design

The FR-Spec is specifically engineered for high-performance and track driving.

Increased spring rates are paired with higher shock damping coefficients to provide greater chassis control during aggressive cornering, braking, and acceleration. Solid aluminum pillowball front top hats help reduce suspension deflection under load while providing adjustable camber for more precise performance alignments.

Heavyweight shock oil and increased shock-body capacity help resist heat buildup and maintain more consistent damping during demanding driving conditions.

For 2002–2007 applications, the kit also includes rear camber plates for additional alignment adjustment and rear damping extenders for easier access to the rear damping controls.

30-Way Adjustable Damping

With 30 levels of damping adjustment, the V2 FR-Spec allows drivers to fine-tune suspension response based on road or track conditions, tire setup, alignment, and driving style.

Softer settings can provide additional compliance for street use, while firmer settings increase suspension response and chassis control for aggressive driving and track use.

FactionFab testing has shown up to a 0.12G increase in cornering performance on firm settings compared to soft settings in tested applications.

Actual results may vary depending on vehicle setup, tires, alignment, driving conditions, and other modifications.

V1 to V2 Improvements

The V2 FR-Spec introduces several updates over the original V1 design:

• All-new components from top to bottom

• Revised application-specific spring rates

• Expanded 30-click damping adjustment range

• Offset front camber plates for increased negative camber adjustment after lowering

• Refined performance-focused shock valving

• Improved heat management for more consistent performance

Specifications

Brand: FactionFab
Series: V2 FR-Spec Track
Damping Adjustment: 30-Way
Damper Type: Monotube
Ride Height Adjustable: Yes
Independent Height Adjustment: Yes
Front Camber Adjustable: Yes
Rear Camber Plates: Included on 2002–2007 Applications
Rear Damping Extenders: Included on 2002–2007 Applications
Top Hats Included: Yes
Manufacturer Warranty: 12 Months
Condition: New
