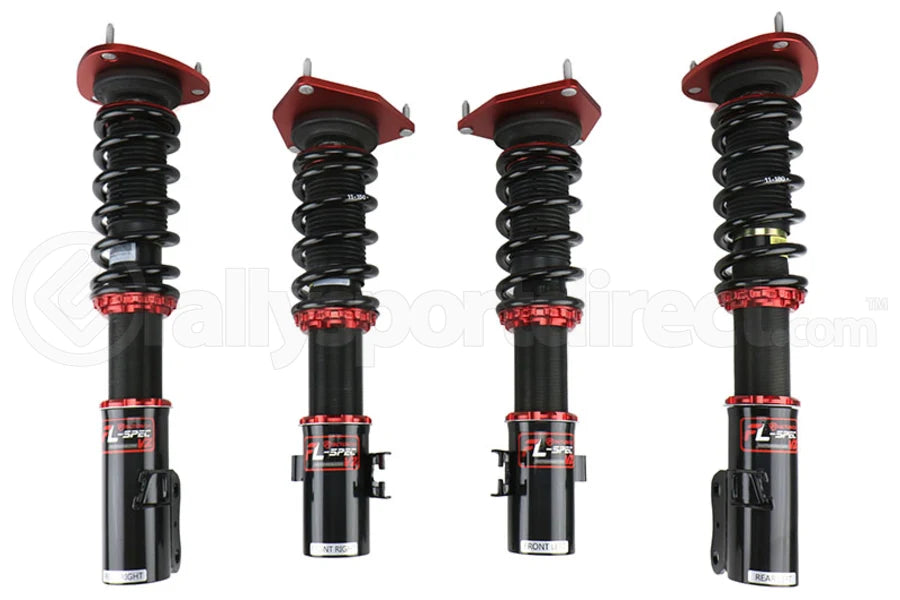

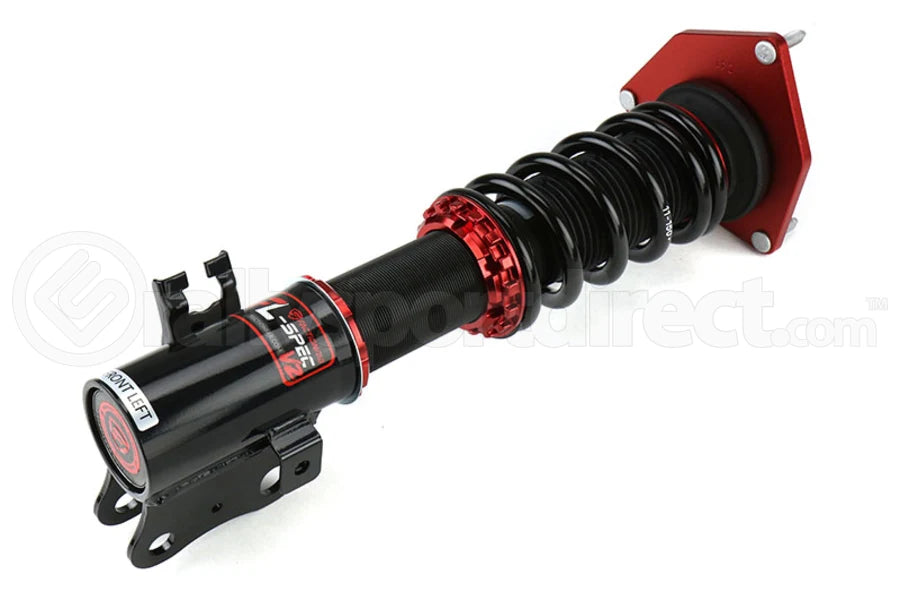

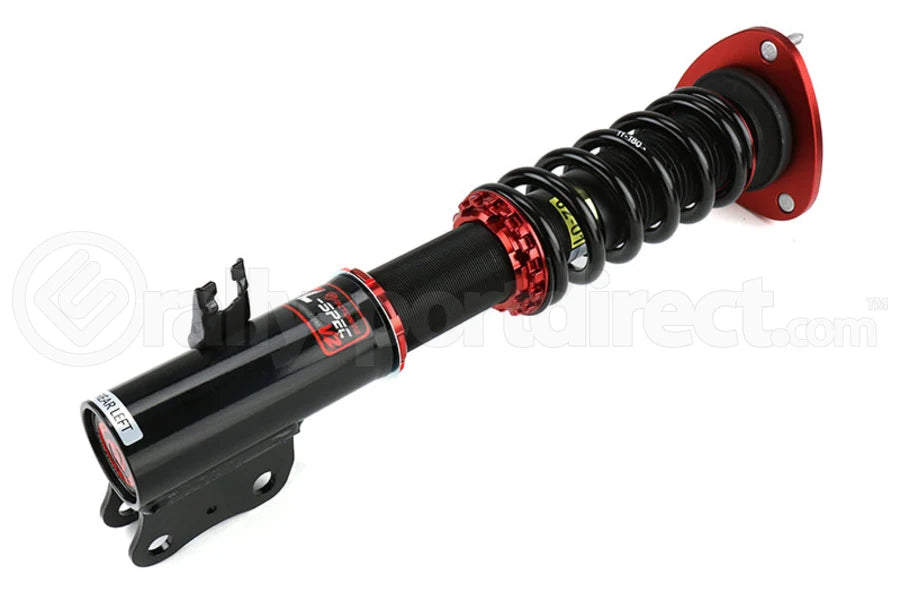

FactionFab FL-Spec Coilovers V2 - 2002-2007 WRX, 2004 STI

FactionFab V2 FL-Spec Street/Track Coilovers

The FactionFab V2 FL-Spec Coilovers are designed to deliver an excellent balance between street comfort and performance handling. Whether you're looking to improve the stance and handling of your daily driver or want additional adjustability for spirited driving, autocross, or occasional track use, the FL-Spec provides a versatile suspension setup.

Positioned between FactionFab's street-focused F-Spec and track-focused FR-Spec systems, the FL-Spec combines application-specific spring rates and shock valving with 30-way adjustable damping to provide a suspension that can be fine-tuned to suit your driving style.

Each coilover set comes fully assembled with top hats and is ready to install.

Key Features

• 30-way adjustable damping

• Balanced spring rates and shock valving for street and light track use

• Vehicle-specific valving and shim stacks

• Revised application-specific spring rates

• Monotube shock design front and rear

• High-performance monotube construction for improved control, fluid life, and thermal stability

• Independent ride-height adjustment separate from spring preload

• Front camber-adjustable top hats

• Offset front camber plates for increased negative camber adjustment

• Rubber-isolated pillowball upper mounts for improved street comfort

• Forged 6061 aluminum anodized adjustment collars and spring seats

• OEM-style mounting provisions for brake lines and ABS wiring

• Fully assembled with top hats included

• 1-year manufacturer's warranty

V2 FL-Spec Street/Track Design

The FL-Spec is engineered to bridge the gap between a comfortable street suspension and a more aggressive track-oriented setup.

Spring rates and shock valving are positioned between FactionFab's F-Spec and FR-Spec systems, providing improved handling and chassis response while maintaining a level of comfort suitable for regular street use.

A rubber-isolated pillowball upper mount is paired with an adjustable camber plate to provide a balance between responsiveness, adjustability, and ride comfort. The rubber isolator helps absorb road and chassis vibration that would otherwise be transferred through a solid-mounted upper mount.

Shorter shock bodies and springs also provide an increased range of ride-height adjustment, allowing greater flexibility when setting up the vehicle's ride height and suspension geometry.

30-Way Adjustable Damping

With 30 levels of damping adjustment, the V2 FL-Spec allows suspension response to be fine-tuned based on road conditions, tires, alignment, driving style, and intended use.

Softer settings can prioritize street comfort, while firmer settings provide increased response and chassis control for spirited driving, autocross, or light track use.

FactionFab testing has shown up to a 0.12G increase in cornering performance on firm settings compared to soft settings in tested applications.

Actual results may vary depending on vehicle setup, tires, alignment, driving conditions, and other modifications.

V1 to V2 Improvements

• All-new components from top to bottom

• Revised application-specific spring rates

• More dynamic 30-click damping adjustment range

• Offset front camber plates for increased negative camber adjustment after lowering

• Refined spring rates and shock valving

• Increased ride-height adjustment range

Specifications

Brand: FactionFab
Series: V2 FL-Spec Street/Track
Adjustable: Yes
Camber Adjustable: Yes
Caster Adjustable: No
Damping Adjustment: 30-Way
Damper Type: Monotube
Height Adjustable: Yes
Independent Height Adjustment: Yes
Front Spring Rate: 8.5 kg/mm
Rear Spring Rate: 7.2 kg/mm
Top Hats Included: Yes
Manufacturer Warranty: 1 Year
Condition: New
