Eagle Forged H-Beam Connecting Rods - Subaru EJ20 / EJ25 - 02-14 WRX, 04-21 STI

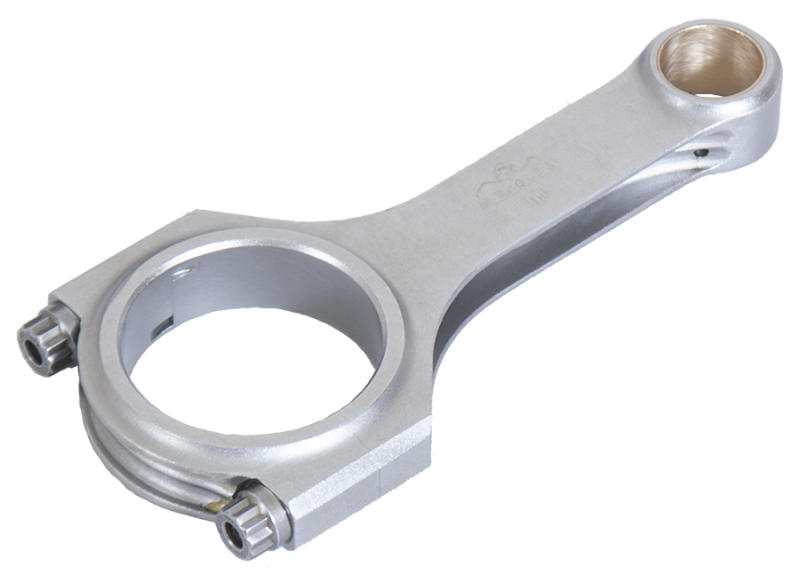

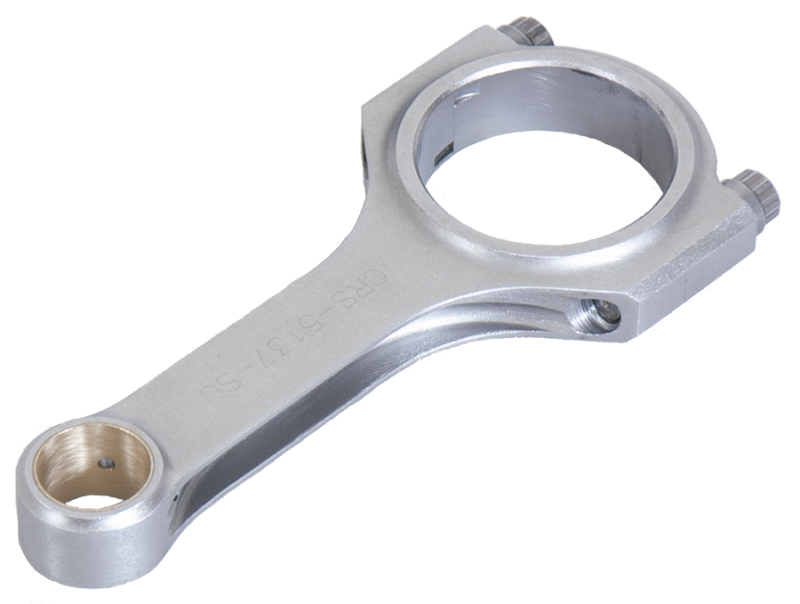

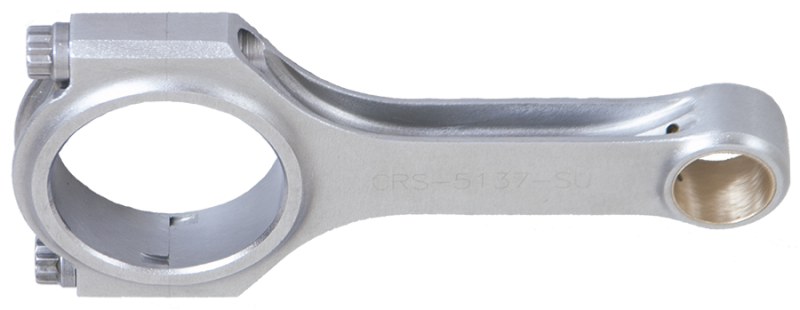

Eagle Forged H-Beam Connecting Rods

Eagle H-beam connecting rods are forged from SAE 4340 steel for superior strength. ARP 2000 bolts and alignment sleeves are used for durability and precise cap location. Sets are weight matched to +/- 1g. Sizing is performed on the unique Sunnen Krossgrinding system for a perfect housing bore. These are the perfect choice for engines up to 750 hp

Features

• Forged from SAE 4340 steel for superior strength.
• Sets are weight matched to +/- 1g.

Benefits

• ARP 2000 bolts and alignment sleeves are used for durability and precise cap location.
• These are the perfect choice for engines up to 750 hp.

Dimensions

• Length: 5.137 in.
• Rod journal: 2.0470 in.
• Housing bore: 2.1650 in.
• Pin size: 0.906 in.
• Big end width: 0.8420 in.
• Pin end width: 0.8420 in.
• Thickness above pin: 0.190 in.
• Typical weight: 530g

What's in the box?

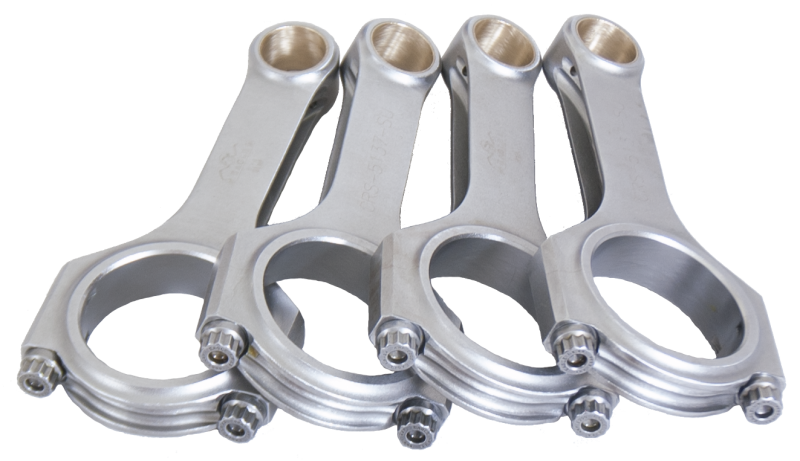

• (4) Eagle EJ20/EJ25 Connecting Rods
• ARP 2000 fasteners

Warranty

• 12 month limited manufacturers warranty
