Diode Dynamics SS3 Max Type X LED Fog Light Kit - White with Amber Backlight - 2011-2014 WRX, 2011-2014 STI, 2008-2009 Legacy

Overview

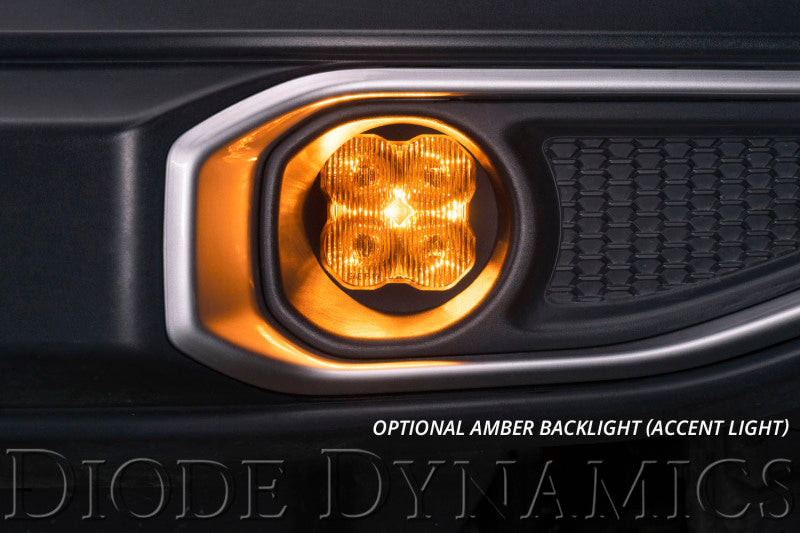

The Diode Dynamics SS3 Max Type X kit upgrades the factory fog lights with a pair of 3-inch LED pods and vehicle-specific brackets. This white SAE Fog version uses TIR optics to control the beam and an independent amber accent backlight.

Features

• FineLine fog optics with an 80° × 8° beam.
• Powder-coated cast-aluminum housing, polycarbonate lens and rubber gasket.
• Passive pin-fin cooling and Deutsch DT input connector.
• IP69K intrusion rating; tested for vibration, moisture and corrosion.
• Engineered and assembled in the USA using globally sourced materials.

Specifications

• Manufacturer part number: DD7135.
• Output: 6000K white; amber backlight.
• Main-beam power: 38.5W per pod.
• Measured output: 3500 lumens per pod.
• Peak intensity: 18000 candela per pod.
• Backlight power: 0.4W per pod.
• Operating temperature: -40°C to 85°C.
• SAE J583 fog pattern and SAE J575 durability testing.

What's Included

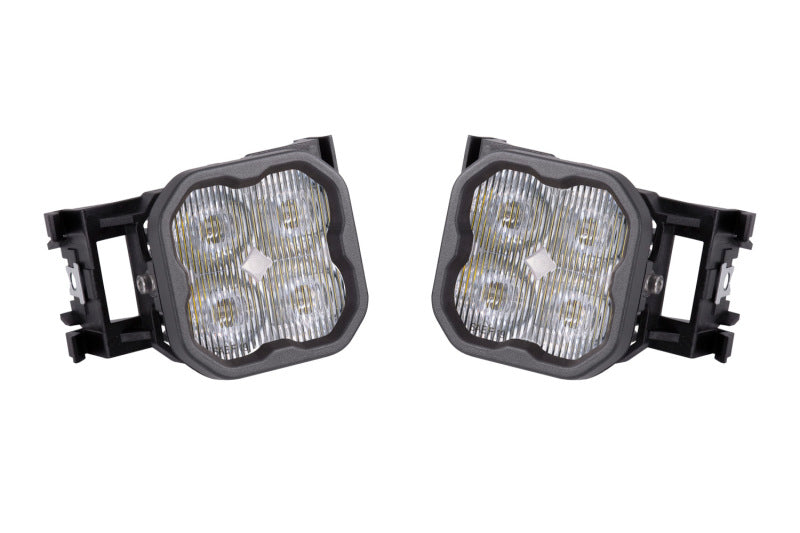

• Two SS3 Max LED fog-light pods.

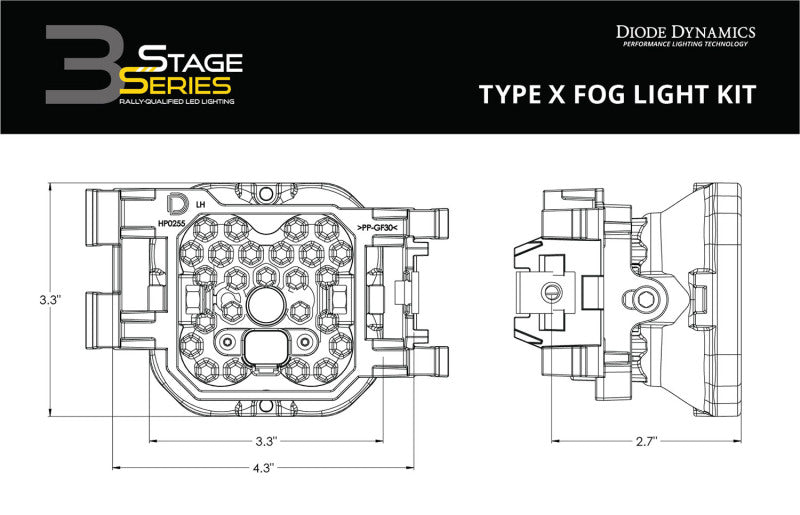

• Two Type X brackets, mounting hardware and mounting guide.
• 9006-to-DT adapter/backlight wiring for the pair.

Installation

The brackets replace compatible factory fog assemblies and the adapters connect to factory fog-light sockets. Connect the amber backlight tap to the desired vehicle lighting function. Allow approximately 30–60 minutes with basic tools; aim both lamps correctly and follow applicable local installation requirements. Covered by the manufacturer's limited lifetime warranty.

Vehicle Fitment

• 2011–2014 WRX and STI, sedan and hatchback.
• 2008–2009 Legacy: Limited Sedan, Limited Wagon, GT Limited Sedan and GT Limited Wagon, as listed by Diode Dynamics.

Replaces factory fog lamps using Type X mounts (OEM references 84501AG130 and 84501AG120). Vehicles without factory fog lights may require additional bezels, wiring and hardware. Legacy Spec B fitment is not confirmed. Not verified for non-turbo Impreza, 2008–2010 WRX/STI, other Legacy years or Outback.
