Bilstein B6 Performance Rear Shock Absorber - 2013-2017 Crosstrek

Product Overview

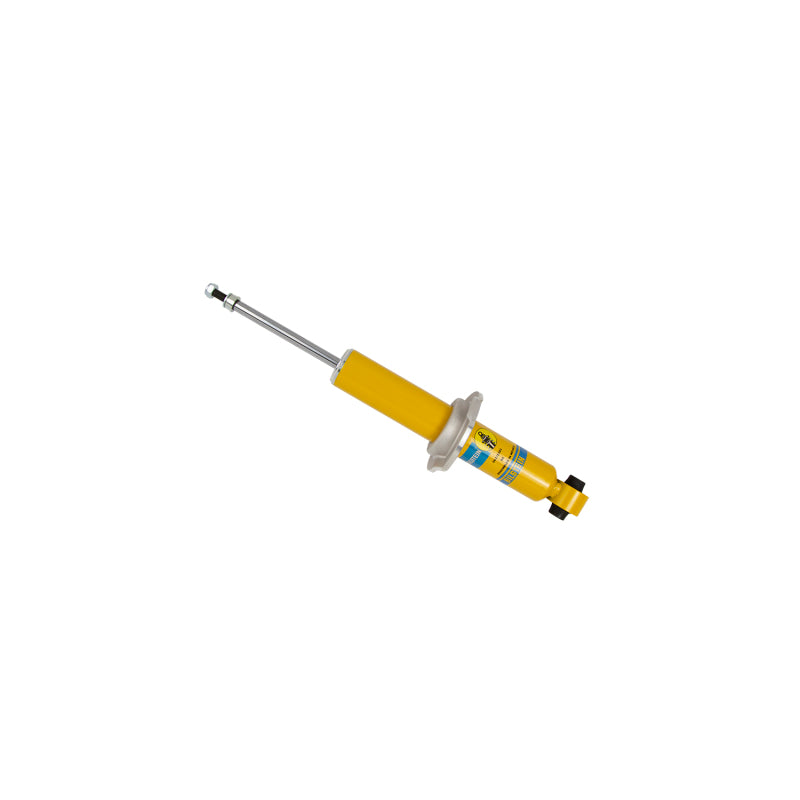

The Bilstein B6 Performance rear shock absorber (24-278393) is designed for 2013-2017 Crosstrek. Application-specific damping improves suspension control and handling while retaining the original spring configuration.

Features

• Application-specific valving
• Velocity-sensitive digressive damping responds to changing road conditions
• Designed for use with OE factory springs
• Monotube internal design
• Fixed damping with no external adjustment

Specifications

• Manufacturer part number: 24-278393
• Series: B6 Performance
• Position: Rear
• Collapsed Length (in): 13.25
• Extended Length (in): 18.94
• Collapsed Length (mm): 336.5
• Extended Length (mm): 481.0
• Lower Mount Type: Eye
• Upper Mount Type: Stem
• Internal Design: Monotube
• Finish: Yellow Paint
• Reservoir: No
• Spring Seat Included: Yes
• Adjustable Damping: Non-Adjustable

What’s Included

• One rear shock absorber (24-278393), sold individually
• Coil springs and upper mounts are not part of this individual damper listing

Vehicle Fitment

Installation Information

• Installation by a qualified suspension technician is recommended. Follow the vehicle service procedure and Bilstein installation instructions.
• Inspect reused suspension components during installation and perform a wheel alignment after installation.

Bilstein installation instructions
