Bilstein B16 PSS9 Coilover Kit - 2002-2007 WRX / Impreza, 2004 STI

SKU: BIL48-101288
Sale price$3,600.99 CAD Regular price$4,847.90 CAD

Product Overview

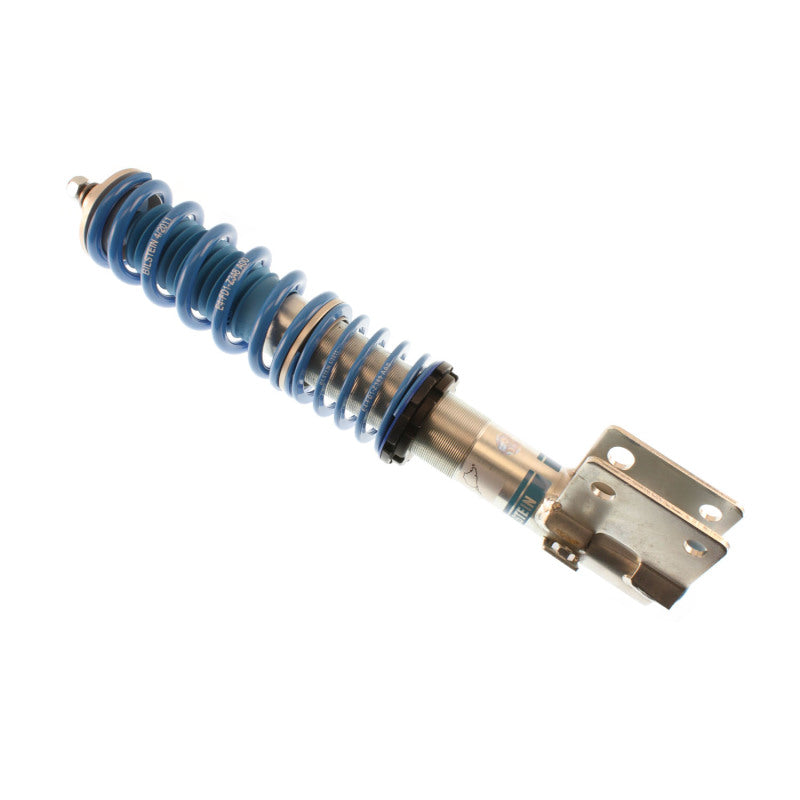

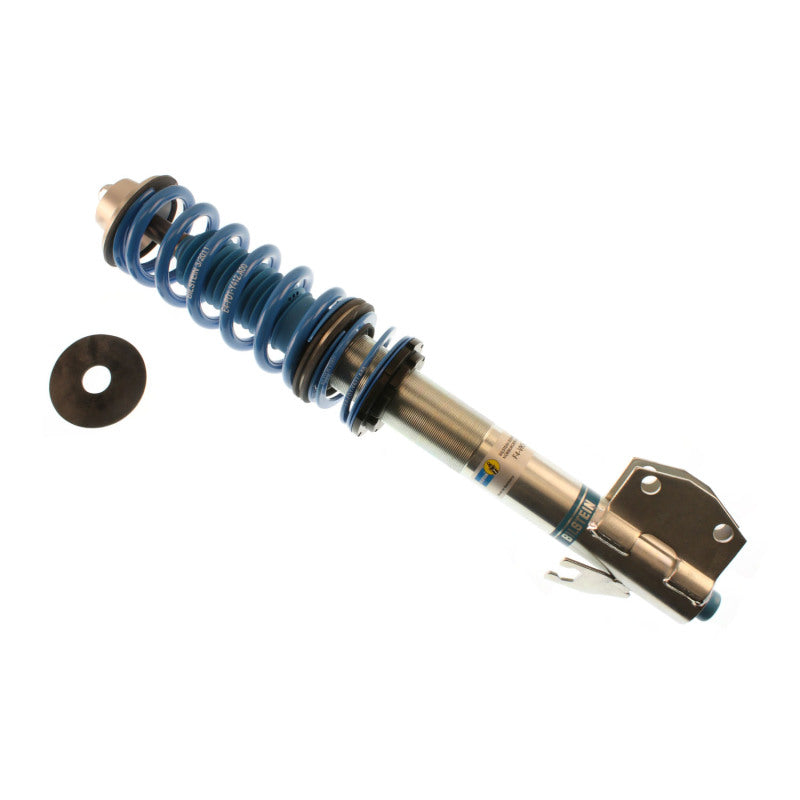

The Bilstein B16 PSS9 coilover kit (48-101288) is designed for 2001-2007 Impreza, 2002-2007 WRX, 2004 STI. Matched springs and performance dampers provide adjustable ride height and 9 damping settings.

Features

  • Monotube performance dampers with application-matched springs
  • 9 manually selected damping stages adjust rebound and compression together
  • Threaded damper bodies allow ride-height adjustment
  • Zinc-coated bodies for corrosion resistance

Specifications

  • Manufacturer part number: 48-101288
  • Series: B16 PSS9
  • Position: Front and Rear
  • Internal Design: Monotube
  • Finish: Dampers: Zinc Plated/Springs: Blue
  • Front Main Spring Rate (lbs/in): 405
  • Front Main Spring Type: Linear
  • Rear Main Spring Rate (lbs/in): 371
  • Rear Main Spring Type: Linear
  • Front Tender Spring Rate (lbs/in): 114
  • Rear Tender Spring Rate (lbs/in): 142

What’s Included

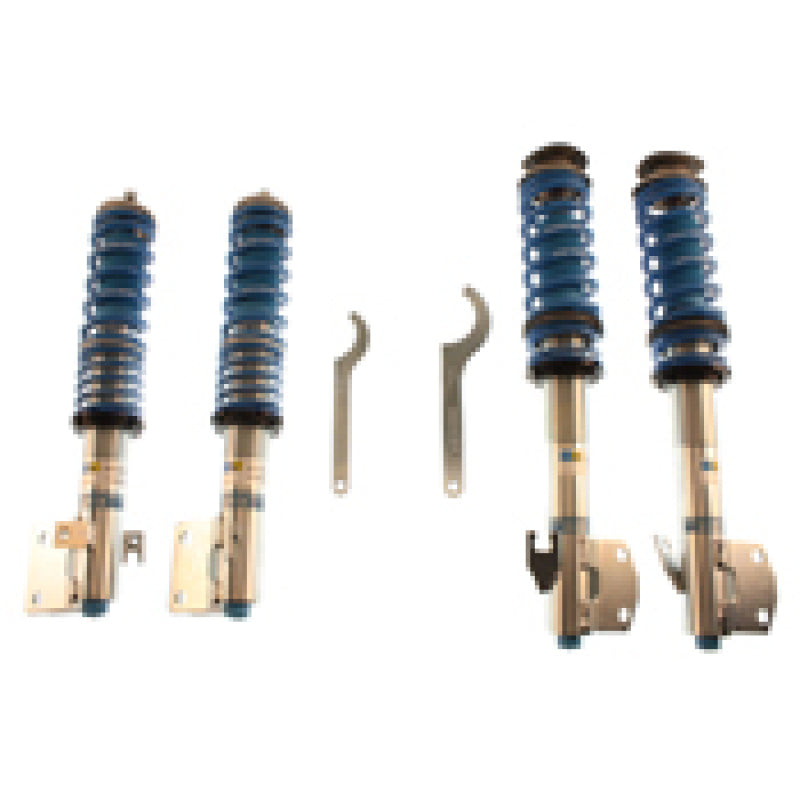

  • Front and rear dampers with matched springs

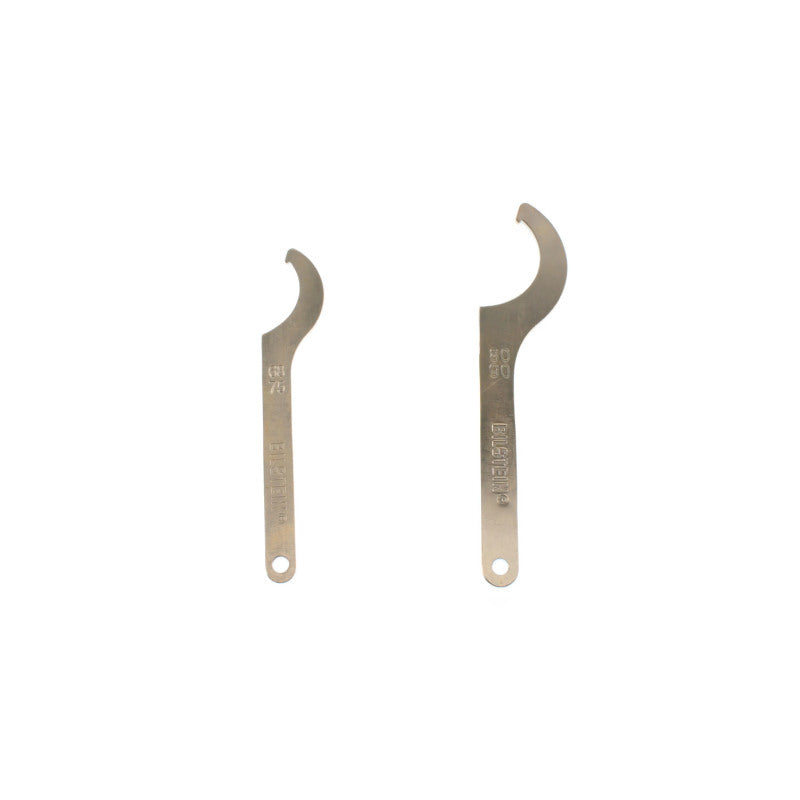

  • Spanner wrench set: E4-XS1-Z001A00

Vehicle Fitment

Years Vehicle Trims / requirements
2001 Subaru Impreza L, Outback; Front Lowered Height: 25-45mm
2002 Subaru Impreza Outback, RS, TS; Front Lowered Height: 25-45mm
2002, 2005 Subaru Impreza WRX; Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm;Requires 15mm rear wheel spacers
2003 Subaru Impreza Outback, RS, TS, WRX; Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm
2004 Subaru Impreza Outback, RS, TS; Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm
2004 Subaru Impreza WRX, WRX STI; Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm;Requires 2001-2003 rear upper mounts;Requires 15mm rear wheel spacers
2005 Subaru Impreza Outback Sport, RS; Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm
2006-2007 Subaru Impreza 2.5i, Outback Sport, WRX Limited, WRX TR; Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm
2006-2007 Subaru Impreza WRX; Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm;Requires 2001-2003 rear upper mounts;Requires 15mm rear wheel spacers

Installation Information

  • Installation by a qualified suspension technician is recommended. Follow the vehicle service procedure and Bilstein installation instructions.
  • Inspect reused suspension components during installation and perform a wheel alignment after installation.
  • Front Lowered Height: 25-45mm
  • Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm
  • Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm;Requires 15mm rear wheel spacers
  • Front Lowered Height: 25-45mm;Rear Lowered Height: 20-40mm;Requires 2001-2003 rear upper mounts;Requires 15mm rear wheel spacers

Bilstein installation instructions
