Bilstein

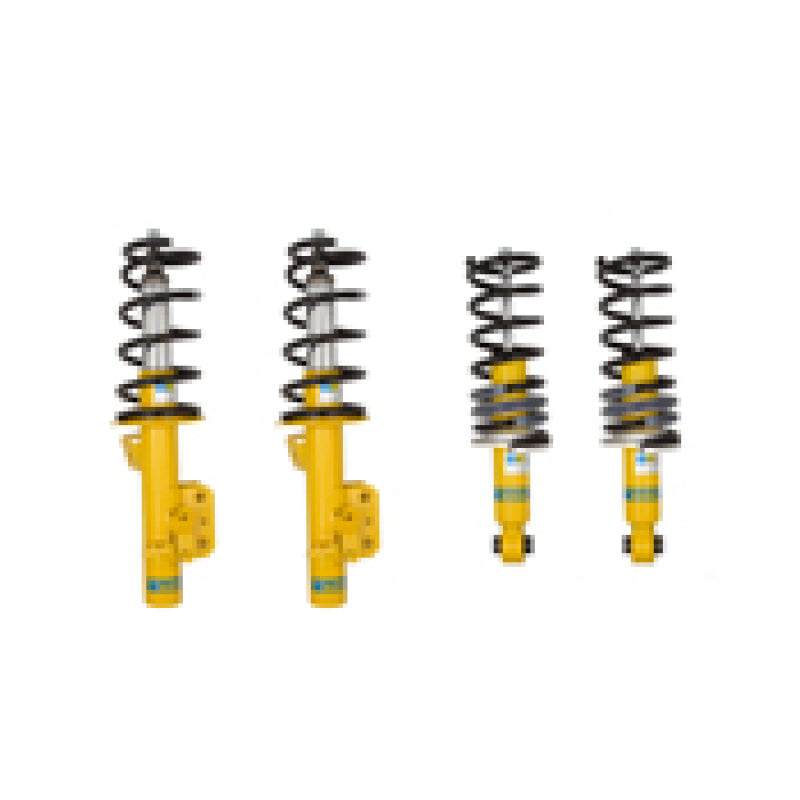

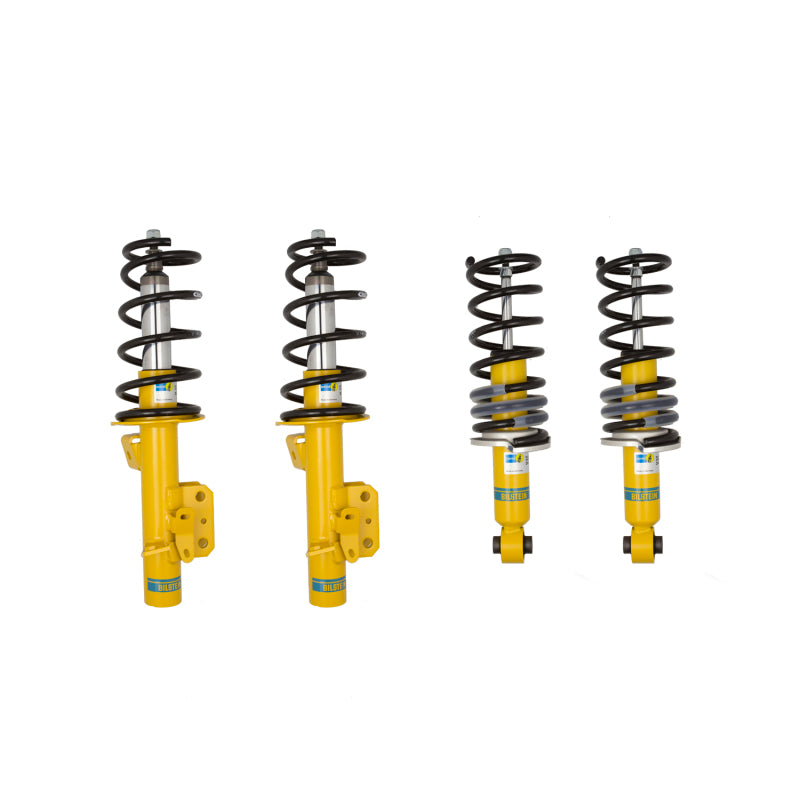

Bilstein B12 Pro-Kit Suspension Kit - 2013-2020, 2022-2026 BRZ

SKU: BIL46-240309
Sale price$1,734.99 CAD Regular price$2,133.63 CAD

Product Overview

The Bilstein B12 Pro-Kit suspension kit (46-240309) is designed for 2013-2020, 2022-2026 BRZ. Bilstein performance dampers and matched Eibach Pro-Kit springs provide a coordinated fixed-height lowering package.

Features

  • Bilstein performance dampers paired with Eibach Pro-Kit springs
  • Application-specific damper and spring tuning
  • Monotube damper construction

Specifications

  • Manufacturer part number: 46-240309
  • Series: B12 Pro-Kit
  • Position: Front and Rear
  • Internal Design: Monotube
  • Finish: Dampers: Yellow/Springs: Dark Grey

What’s Included

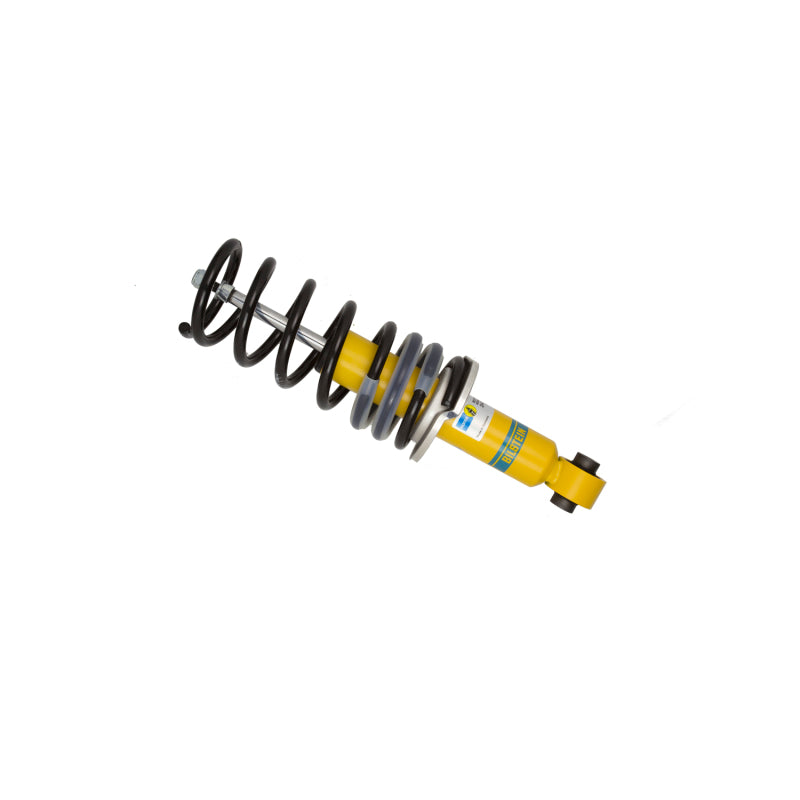

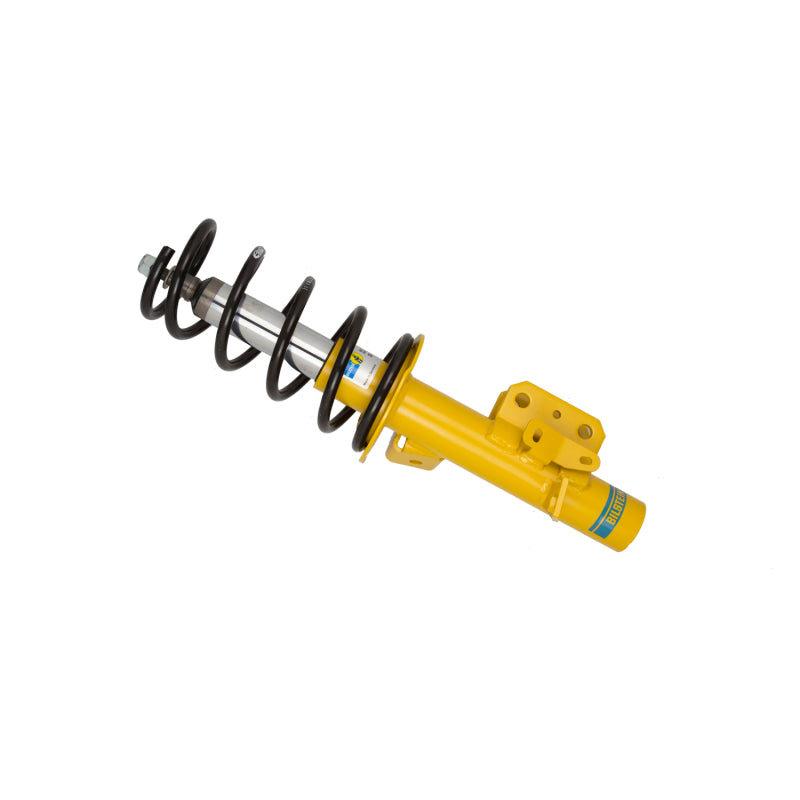

  • Front and rear dampers with matched springs

Vehicle Fitment

Years Vehicle Trims / requirements
2013-2016 Scion FR-S Base; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2013-2014, 2017, 2022-2023 Subaru BRZ Limited, Premium; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2015 Subaru BRZ Limited, Premium, Series.Blue; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2016 Subaru BRZ Limited, Premium, Series.HyperBlue; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2018, 2024-2025 Subaru BRZ Limited, Premium, TS; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2019 Subaru BRZ Limited, Premium, Series.Gray; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2020 Subaru BRZ Limited, TS; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2026 Subaru BRZ Limited, Series.Yellow, TS; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2017 Toyota 86 Base, Special Edition; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2018 Toyota 86 Base, GT; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2019 Toyota 86 Base, GT, TRD Special Edition; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2020 Toyota 86 Base, GT, Hakone Edition; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2022 Toyota GR86 Base, Premium; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2023 Toyota GR86 10th Anniversary Special Edition, Base, Premium; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2024 Toyota GR86 Base, Premium, TRUENO Edition; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2025 Toyota GR86 Base, Hakone Edition, Premium; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load
2026 Toyota GR86 Base, Premium, Yuzu Edition; Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load

Installation Information

  • Installation by a qualified suspension technician is recommended. Follow the vehicle service procedure and Bilstein installation instructions.
  • Inspect reused suspension components during installation and perform a wheel alignment after installation.
  • Front Lowered Height: 25mm, up to 876kg Axle Load;Rear Lowered Height: 20mm, up to 943kg Axle Load

Bilstein installation instructions 1 | Bilstein installation instructions 2
