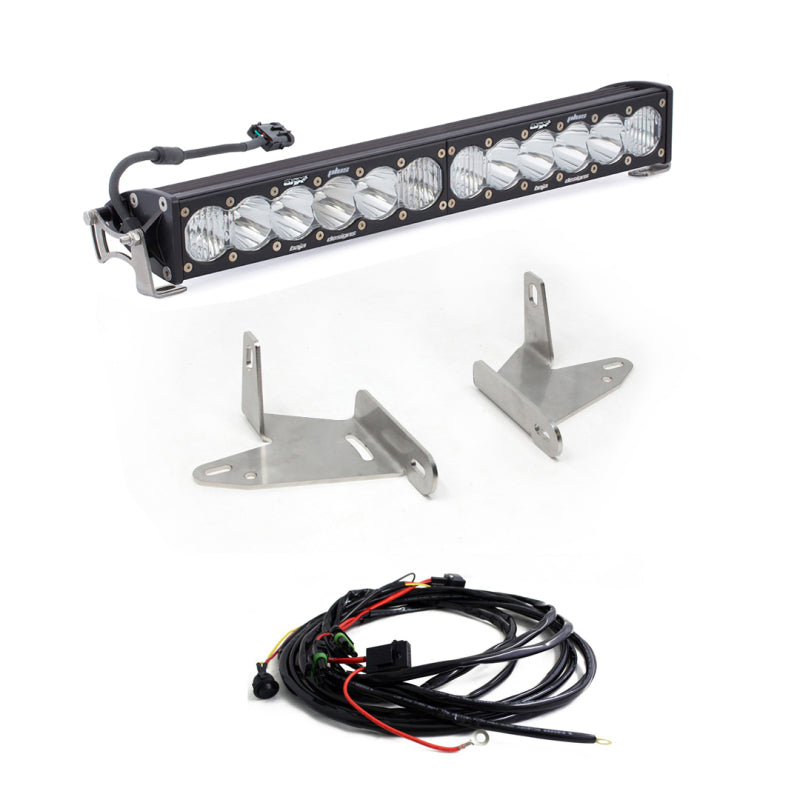

Baja Designs Subaru OnX6+ 20 Inch Grille Light Kit - 2018-21 WRX/WRX STI
Description
Upgrade the front of your 2018-2021 Subaru WRX or STI with the Baja Designs OnX6+ 20" LED Light Bar Kit. This vehicle-specific mounting solution is designed to cleanly integrate the OnX6+ light bar into the factory grille area while utilizing the vehicle's factory mounting points and hardware.
The OnX6+ features Baja Designs' high-output LED technology, deep reflectors, and optimized optics to deliver excellent long-distance visibility and a wide, usable beam pattern. Whether you're navigating dark backroads or looking for additional forward lighting, this kit provides a clean, integrated solution without compromising the factory appearance of your WRX or STI.
Features
-
Limited Lifetime Warranty – Complete Purchase Protection
-
uService® – Replaceable Lenses and Optics
-
ClearView® – All the Light, Right Where You Need It
-
MoistureBlock™ – Waterproof, Rainproof and Submersible
-
DirectSink™ – Direct Thermal Path Technology
-
5000K Daylight – Natural Light Output Designed to Reduce Driver Fatigue
Fitment
-
2018-2021 Subaru WRX
-
2018-2021 Subaru STI
What's Included
-
Baja Designs OnX6+ 20" LED Light Bar
-
Vehicle-Specific Mounting Brackets
-
Stainless Steel Mounting Hardware
-
Hi-Low Dongle
SKU: 452013
Dimensions
| Specification | Measurement |
|---|---|
| Depth | 4.29 in. |
| Height | 2.69 in. |
| Length | 20 in. |
| Weight | 7.85 lbs. |
Specifications
| Specification | Details |
|---|---|
| Amperage Rating | 16.6A High / 12.0A Low |
| Average Rated Life | 49,930 Hours |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness | 24,920 Lumens High / 18,460 Lumens Low |
| Light Bar Configuration | Straight |
| Housing Color | Black |
| Housing Material | Aircraft-Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Amber |
| Lens Material | Hard-Coated Polycarbonate |
| Light Quantity | 1 |
| LED Quantity | 12 |
| Lighting Modes | High Beam / Low Beam |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 20" LED Light Bar |
| Wattage | 216W High / 160W Low |
| Wiring Harness | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standard | Rating |
|---|---|
| Durability | Exceeds MIL-STD-810G Mil-Spec Testing |
| Impact Resistance | IK10 Compliant |
| Water Resistance | IP69K – Waterproof up to 9 ft. and Pressure Washable |
Installation
Professional installation is recommended. Please review the manufacturer's installation instructions before beginning installation.
