AIRLIFT PERFORMANCE 3P FULL SUSPENSION KIT - 2008-2014 WRX

$5,181.97 CAD $6,226.90 CAD

⏳ Sale ends in {timer}

The Air Lift Performance 3P System provides you with everything needed to have a bagged suspension system. The Air Lift Performance Suspension Systems provide the driver with the best of both worlds. You can achieve an aggressive stance without the inherent harshness of coil overs. With that said this suspension system is suitable for those who like to enjoy the occasional weekend track day and can wind down and slam the car at the next car meet.

This kit includes 4 Air Lift Shocks that are 30-way adjustable. So you can set them to a hard setting while participating in high-performance driving events. Or you can set them to a soft setting for daily driving activities. All shocks will come with top hats, and the top hats for the front suspension are camber adjustable for those of you who need a more aggressive camber angle. To operate the air function of these struts, Air Lift has supplied one of the VIAR compressors that will come with all the required air lines, hardware, as well as fittings to make for a ready installation. Also included are height adjustment tools that allow you to adjust the height from the lower perch, then you can adjust the air in the shocks to your desired preference. Now you can get away from that 4X4 status from the factory.

Controller

Both systems come with the Air Lift Performance 3 controller, a device that is truly amazing to hold and to use.

Free Mobile App

Take full control of your 3H/3P system with a FREE mobile app with no additional hardware needed, for all compatible devices.

Fully Integrated Manifold

By combining the ECU, pressure manifold, and Bluetooth module into one compact unit, the new manifold takes up less space than multiple components.

5 Custom Presets

The system quickly adjusts to and maintains height and/or pressure presets with the with single or double tap.

Height + Pressure

The system comes with everything needed for height and pressure control up front, for the best value. Start driving in pressure mode and install height sensors later, without the need to purchase an upgrade.

Height Sensing Technology

Height sensors give the system the ability to automatically adapt to changes in vehicle load.

Anti-Cross Loading + Axle Equalization

With the combination of pressure and height sensing technology, 3H can achieve the correct height without radical differences in pressure.

Show Mode

Turn your vehicle off and continue to control your air management via the controller or FREE mobile app.

Rise on Start

Turn the key and the system will take you right to your programmed ride height.

Easy Install

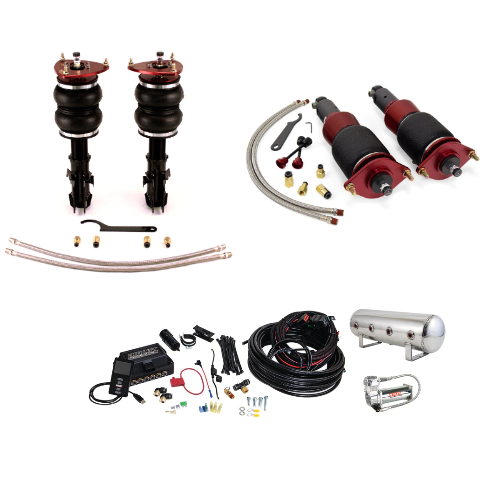

 THIS KIT INCLUDES:

  • 3H/3P digital controller
  • Front and rear air struts
  • Integrated ECU + manifold
  • Advanced electrical wiring harness
  • 60 ft. of air line
  • Inline water filter
  • All wiring, fuses, hardware, etc. required for installation
  • Air tank of your choice
  • All required tank fittings for installation
  • VIAIR 444C Air Compressor



 IMPORTANT NOTE - IF YOU ARE PURCHASING ANY OF THE 3/8 LINE KITS YOU MUST ALSO PURCHASE 4x Air Lift Straight Female - 1/4in FNPT X 3/8in PTC FITTINGS TO CONNECT 3/8 LINE TO AIR STRUTS. PART #ALF21987






    More Information
    MANUFACTURER Air Lift
    COLOR N/A
    WARRANTY Manufacturer 1 year
    INSTALLATION HARDWARE INCLUDED Refer To Manufacturer
    MATERIAL Refer To Manufacturer
