ACTIVE™ Premium Lance

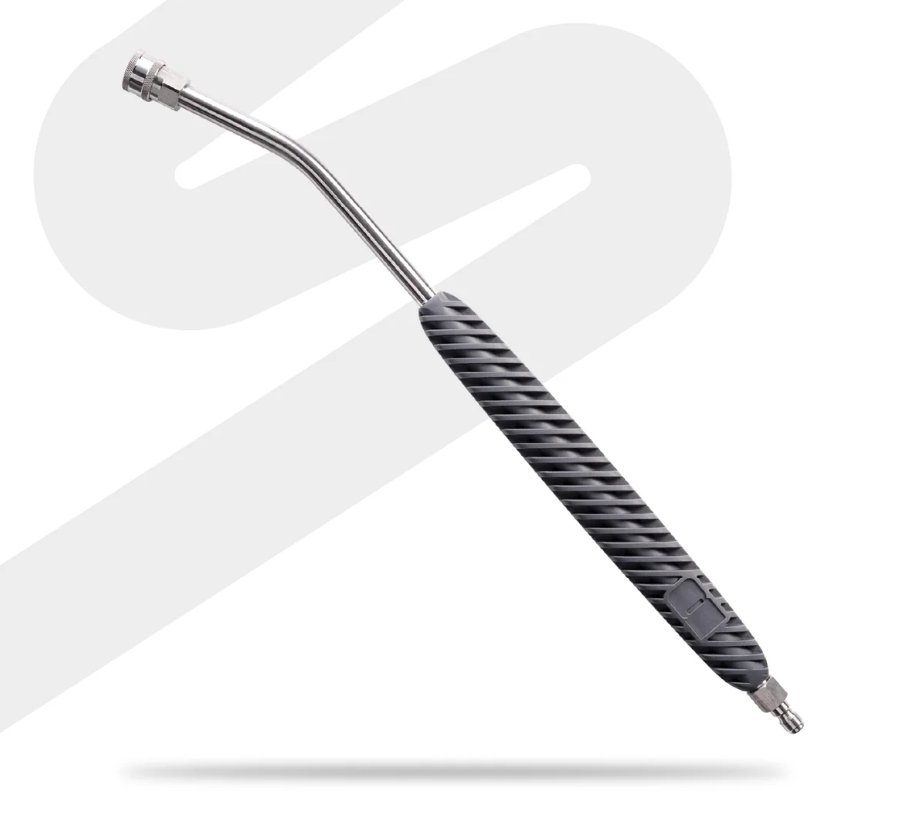

Active™ Premium Pressure Washer 20° Lance

Improve reach and control while detailing with the Active™ Premium Pressure Washer 20° Lance. Designed specifically for accessing difficult areas around a vehicle, this 20.5" extension lance combines a 20° angled design with durable 304 stainless-steel construction and industry-standard 1/4" quick-connect fittings.

The angled design makes it easier to reach areas such as wheel wells, side skirts, underbody areas, and vehicle roofs while maintaining a comfortable working position. A contoured nylon grip with a ribbed, anti-slip surface provides secure handling and improved control during use.

With a maximum pressure rating of 5,000 PSI, flow capacity of 12 GPM, and temperature rating of up to 300°F, the lance is suitable for a wide range of residential and commercial pressure washing systems.

Features

• 20° bent lance design for improved access and ergonomics
• Ideal for cleaning wheel wells, side skirts, vehicle roofs, and other difficult-to-reach areas
• 20.5" overall lance length
• Fully machined 304 stainless-steel construction
• Excellent corrosion resistance compared with conventional brass or recycled-metal fittings
• Integrated industry-standard 1/4" quick connects
• Contoured nylon grip for comfortable handling
• Ribbed, anti-slip grip design
• High-pressure and high-flow construction
• Suitable for DIY enthusiasts and professional detailers
• Compatible with a wide range of residential and commercial electric and gas pressure washers when equipped with the appropriate connection

Specifications

Lance Length:
20.5"

Bend Angle:
20°

Maximum Pressure:
5,000 PSI / 276 Bar

Maximum Flow Rate:
12 GPM / 45 LPM

Maximum Temperature:
300°F / 148°C

Lance Construction:
304 Stainless Steel

Handle Construction:
Nylon

Inlet Connection:
1/4" Male Quick Connect

Outlet Connection:
1/4" Female Quick Connect

20° Angled Design

Unlike a conventional straight pressure washer lance, the Active™ Premium Lance features a 20° bend designed to improve reach and reduce awkward positioning while washing a vehicle.

The angled configuration is particularly useful when rinsing wheel wells, lower side skirts, vehicle roofs, and other areas that can be difficult to reach with a standard straight lance.

Compatibility

The Active™ Premium Pressure Washer 20° Lance uses an industry-standard 1/4" male quick-connect plug on the inlet and a 1/4" female quick connect on the outlet.

The inlet connects directly to pressure washer guns equipped with a 1/4" female quick-connect outlet.

Important: If your pressure washer gun does not have a 1/4" female quick-connect connection, an appropriate adapter will be required. Depending on your pressure washer, this may require an M22-14mm or M22-15mm to 1/4" quick-connect adapter.

Please verify the connection type on your pressure washer gun before ordering.

Leak-Resistant Quick Connects

The integrated quick-connect fittings are designed to provide a secure, leak-resistant seal when properly connected. Thread-sealing tape is not required for the quick-connect fittings.

Warranty

The Active™ Premium Pressure Washer 20° Lance is backed by a 1-year comprehensive manufacturer warranty for residential and commercial use.
