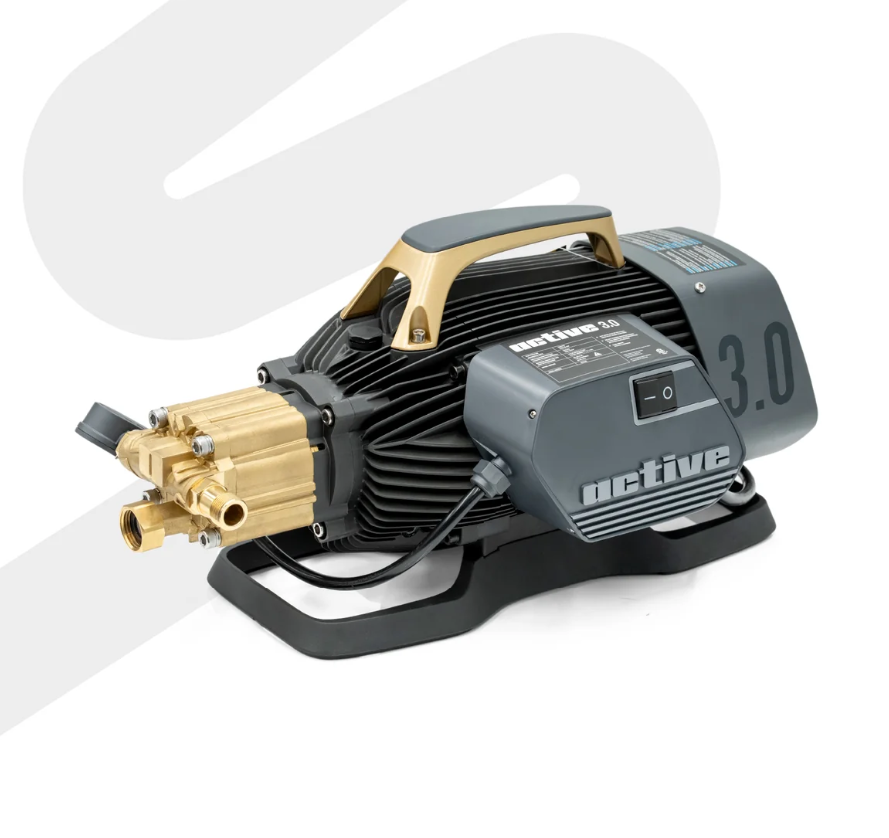

Active™ 3.0 Electric Pressure Washer – 3.0 GPM
The Active™ 3.0 Electric Pressure Washer is Active's flagship high-flow pressure washer, developed for automotive detailing enthusiasts and professionals looking for maximum flow from an electric pressure washing setup.
Built around Active's patented 5-piston pump and a low-speed induction motor, the Active 3.0 delivers an impressive 3.0 GPM at 1,000 PSI working pressure while maintaining a current draw of approximately 18 amps. The combination of high water flow and moderate pressure makes it particularly well suited to automotive detailing, providing fast rinsing and excellent foam cannon performance without relying on unnecessarily high pressure.
Unlike Active's lower-output models, the 3.0 also features a serviceable pump with dedicated oil fill and drain plugs, allowing routine oil changes to help maximize service life.
Important: The Active 3.0 requires a dedicated 120V / 20A electrical circuit and is supplied with a 20A plug.
Features
-
High-output 3.0 GPM electric pressure washer
-
1,000 PSI working pressure
-
1,500 PSI peak pressure
-
Patented 5-piston pump
-
Low-speed 1,600 RPM induction motor
-
Approximately 75 dB operating sound level
-
Designed specifically with automotive detailing in mind
-
Approximately 18A operating current
-
Serviceable pump design
-
Dedicated oil fill and drain plugs
-
Upgraded seals, valves, and pistons
-
35' 14 AWG power cord with GFCI
-
Standard 3/4" garden hose water inlet
-
M22-14mm high-pressure outlet
-
Includes four pressure washer nozzles
-
Includes 1.65mm foam cannon orifice
-
Designed for use with 5/16" or larger pressure washer hose
-
Suitable for DIY enthusiasts and professional detailers
Specifications
Voltage:
120V / 60Hz
Rated Current:
18A
Required Circuit:
Dedicated 20A
Motor Speed:
1,600 RPM
Pump:
5-Piston Pump
Working Pressure:
1,000 PSI
Peak Pressure:
1,500 PSI
Water Flow:
3.0 GPM
Maximum Inlet Water Temperature:
104°F / 40°C
Sound Level:
Approximately 75 dB
Power Cord:
35' 14 AWG with GFCI
Water Inlet:
3/4" – 11.5 TPI Standard North American Garden Hose Connection
High-Pressure Outlet:
M22-14mm
Recommended Pressure Washer Hose:
5/16" or larger steel-braided rubber hose
Recommended Maximum Hose Length:
Under 100'
Recommended Spray Nozzle Orifice:
6.3–7.0
Recommended Foam Cannon Orifice:
1.65mm
3.0 GPM High-Flow Performance
The Active 3.0 is engineered to deliver 3.0 GPM at approximately 1,000 PSI working pressure, providing a high-flow washing experience particularly well suited to automotive detailing.
Rather than chasing extremely high pressure figures, the 3.0 prioritizes water volume, helping rinse soap, dirt, and debris from vehicle surfaces quickly and efficiently.
The increased flow is also beneficial when using a foam cannon, helping provide excellent detergent coverage when paired with the appropriate orifice.
Patented 5-Piston Pump
At the heart of the Active 3.0 is Active's patented 5-piston pump design.
The pump incorporates upgraded seals, valves, and pistons compared with Active's entry- and mid-level pressure washers and is designed with serviceability in mind.
Dedicated oil fill and drain plugs allow the pump oil to be changed as part of routine maintenance rather than treating the pump as a completely maintenance-free component.
Low-Speed Induction Motor
The Active 3.0 uses a 1,600 RPM low-speed induction motor, helping keep operating noise to approximately 75 dB.
This makes the unit particularly well suited to garages and professional detailing environments where reduced operating noise can make extended washing sessions more comfortable.
Electrical Requirements
The Active 3.0 requires a dedicated 20A, 120V / 60Hz electrical circuit.
The pressure washer draws approximately 18 amps during normal operation and comes equipped with the appropriate 20A plug.
A standard 15A household circuit is not suitable for operating the Active 3.0.
Active discourages the use of extension cords whenever possible.
If an extension cord must be used:
-
Maximum recommended length: 50'
-
Minimum recommended wire size: 12 AWG
-
The extension cord and circuit must be suitable for the electrical load of the pressure washer
Using an undersized extension cord or inadequate circuit can result in voltage drop, reduced performance, or tripped breakers.
Pressure Washer Hose Requirements
The Active 3.0 uses an M22-14mm high-pressure outlet.
Active recommends using a steel-braided rubber pressure washer hose with a minimum internal diameter of 5/16".
For best performance:
-
Use a 5/16" or larger internal hose diameter
-
Steel-braided rubber construction is preferred
-
Keep total hose length under 100'
-
Ensure the connection is compatible with the M22-14mm outlet, either directly or through the appropriate adapter
1/4" pressure washer hoses are not recommended for use with the Active 3.0.
Non-steel-braided hoses may expand under pressure, which can prevent the pressure washer from achieving its intended operating pressure and may cause the machine to run continuously.
Nozzle Requirements
The Active 3.0 is supplied with a 6.3-size spray nozzle orifice, selected to provide the intended balance between pressure, water flow, and electrical current draw.
If replacing or using aftermarket spray nozzles, Active recommends an orifice size between:
6.3–7.0
Using an incorrectly sized nozzle can alter pressure, flow, and electrical load.
Foam Cannon Compatibility
For foam cannon use, Active recommends a 1.65mm foam cannon orifice.
A 1.65mm foam cannon orifice is included with the Active 3.0, allowing it to be installed in compatible aftermarket foam cannons.
The larger orifice is important with this high-flow pressure washer because it helps keep electrical current draw below approximately 18 amps during normal foam cannon operation.

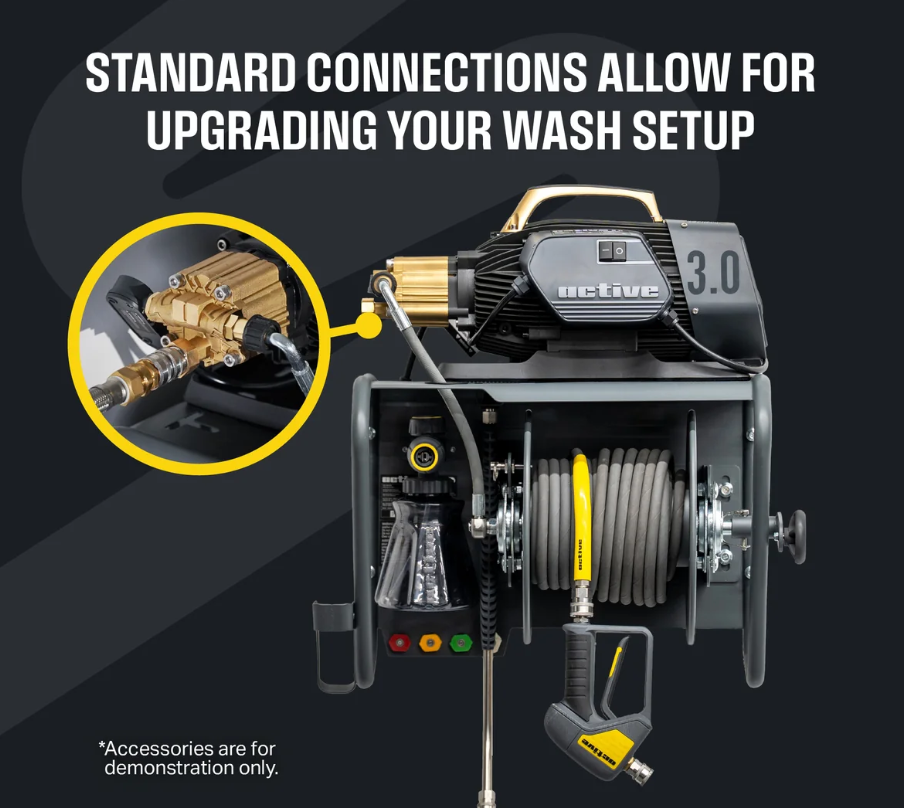

Connections
Water Inlet:
The pressure washer uses a standard North American 3/4" garden hose connection with 11.5 TPI threads.
High-Pressure Outlet:
The pump outlet uses an M22-14mm connection.
When installing aftermarket hoses, quick-connect fittings, hose reels, or other accessories, make sure the fittings are compatible with the M22-14mm outlet.
Important: M22-14mm and M22-15mm fittings are different. Verify the connection size of any aftermarket hose or adapter before ordering.
What's Included
-
Active™ 3.0 Electric Pressure Washer
-
35' 14 AWG GFCI-equipped power cord
-
4 × pressure washer spray nozzles
-
1.65mm foam cannon orifice
-
Required factory-supplied components and fittings
Maintenance
Unlike many compact electric pressure washers, the Active 3.0 uses a serviceable oil-filled pump.
When first setting up the pressure washer, the factory shipping plug must be replaced with the supplied ventilation cap before operation.
Active specifies 85W-90 oil for pump servicing.
Oil Change Interval:
-
First oil change after 25 hours of operation
-
Every 100 operating hours or 6 months thereafter, whichever comes first
Following the recommended maintenance schedule will help maintain pump performance and service life.
Warranty
The Active™ 3.0 Electric Pressure Washer is backed by a:
2-Year Residential Manufacturer Warranty
1-Year Commercial Manufacturer Warranty
Product registration is required before receiving manufacturer warranty support. Keep your proof of purchase, retailer information, order number, and product serial number for registration.
