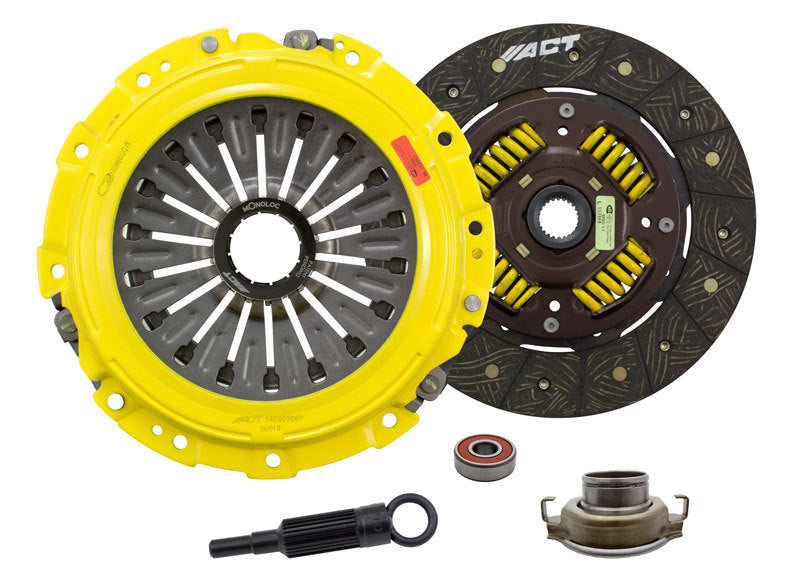

ACT HEAVY DUTY PERFORMANCE STREET DISC CLUTCH KIT - 04-21 STI, 07-09 LGT SPEC B

SKU: ACTSB10-HDSS

$926.99 CAD $1,131.94 CAD

⏳ Sale ends in {timer}

The SB10-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Recommendation:
Recommended for street and race use

Specifications:
Torque Capacity (ft/lbs.): 515
Torque Capacity Over OE: 45%
Disc Type: Street Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 9.4
Disc Diameter (mm.): 240
Pressure Plate Type: Heavy Duty
Product Weight (lbs.): 18.2

Kit Includes:
- Heavy Duty Pressure Plate
- Performance Street Sprung Disk
- Release Bearing
- Pilot Bearing
- Alignment tool

Note:
- 2007-2009 Legacy GT Spec B - 6MT requires OEM Flywheel 2006+ WRX or ACT Flywheel (Not Included)

Fitment:
2004-2021 Subaru STI & Type-RA
