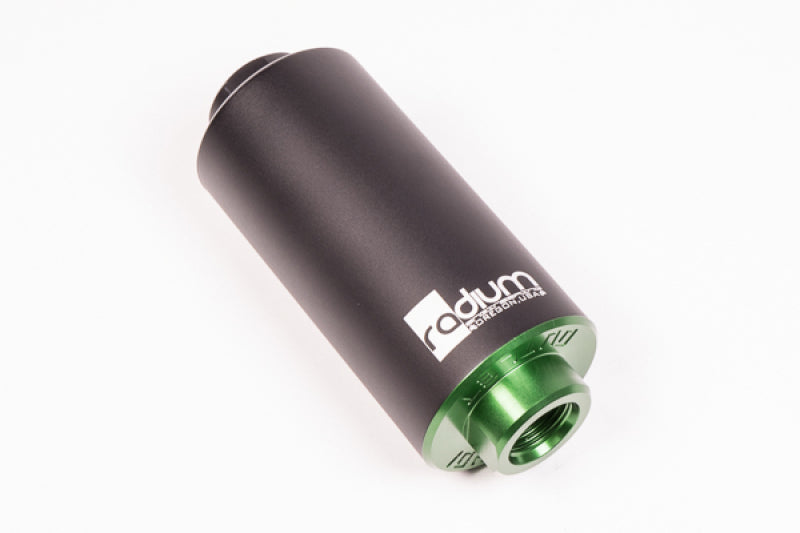

Radium Engineering High Flow Fuel Filter Kit w/ 10 Micron Stainless Filter

The Radium Engineering high flow fuel filter has a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. Both removable end caps feature large -10AN ORB female threaded ports for high flow plumbing.



The fuel filter comes preassembled with Viton O-ring seals for all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop.



The filter features a large 4.2in x 1.75in element maximizing flow without sacrificing filtration. The large elements also hold a lot of contaminants without becoming a restriction, resulting in a very long service life.



10 Micron Stainless Element: 18-0025-03



- 60mm Single Clamp - Part# 20-0218

- 60mm Dual Clamp - Part# 20-0122

- 60mm Heat Exchanger Mount - Part# 20-0221
